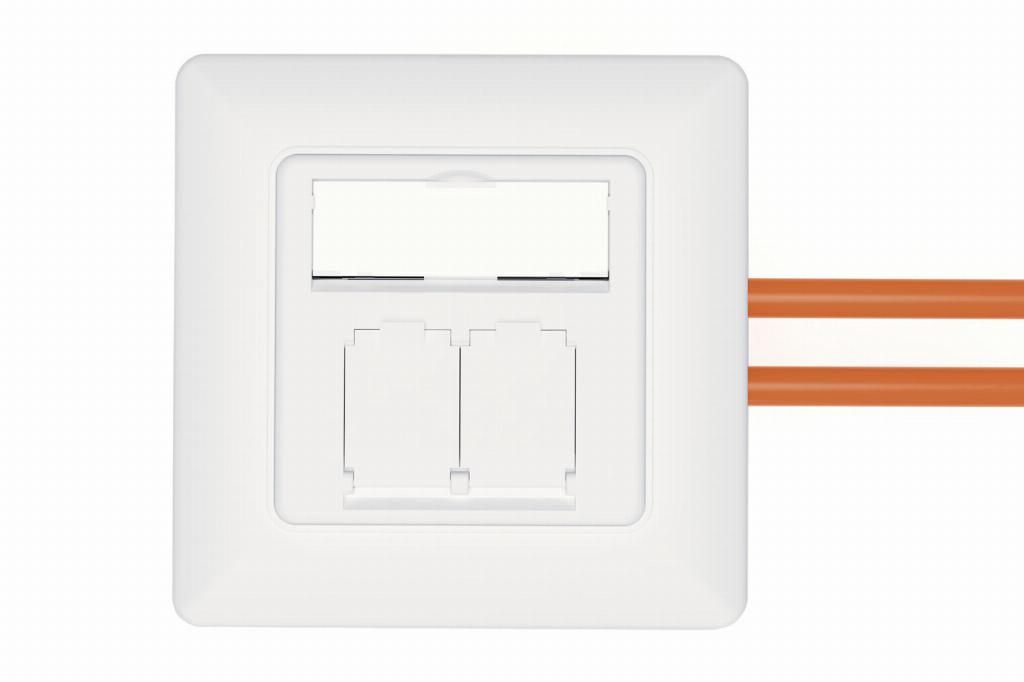

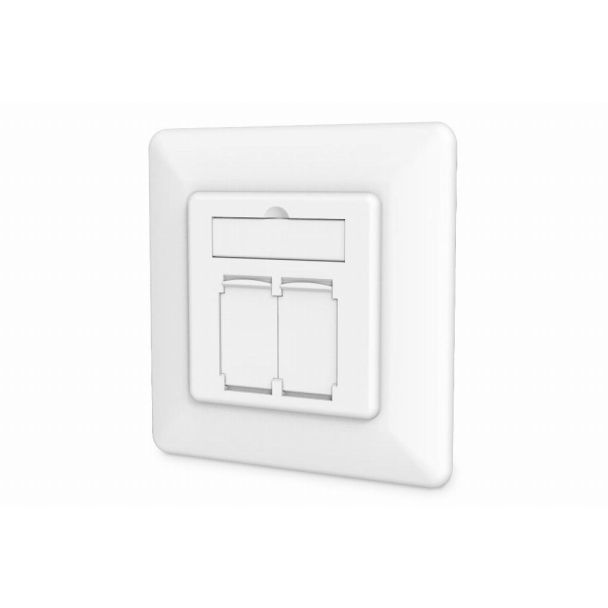

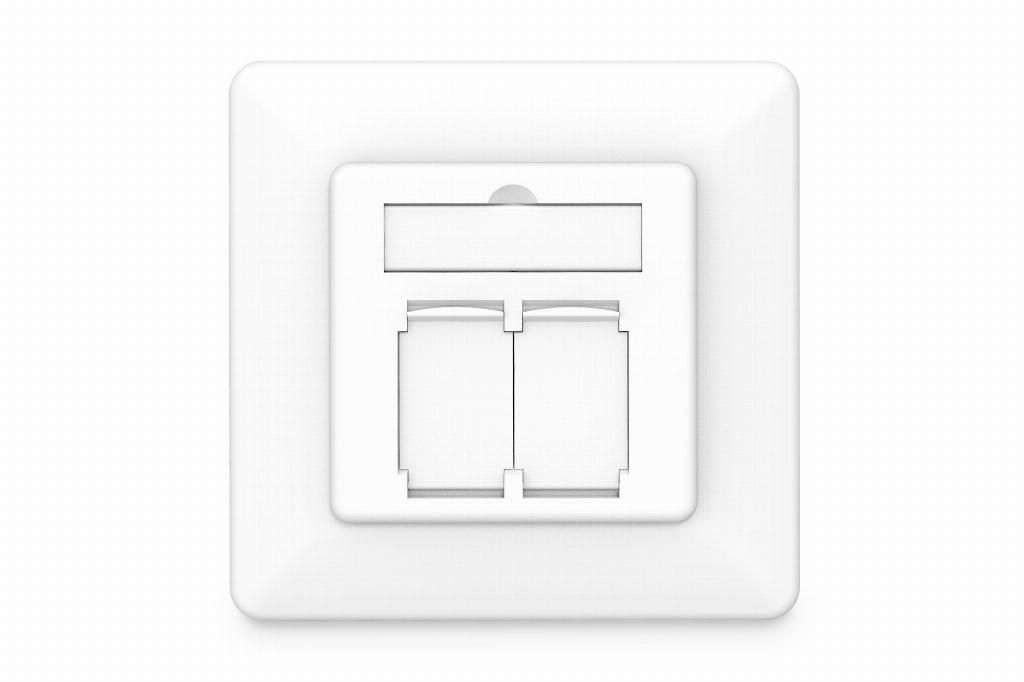

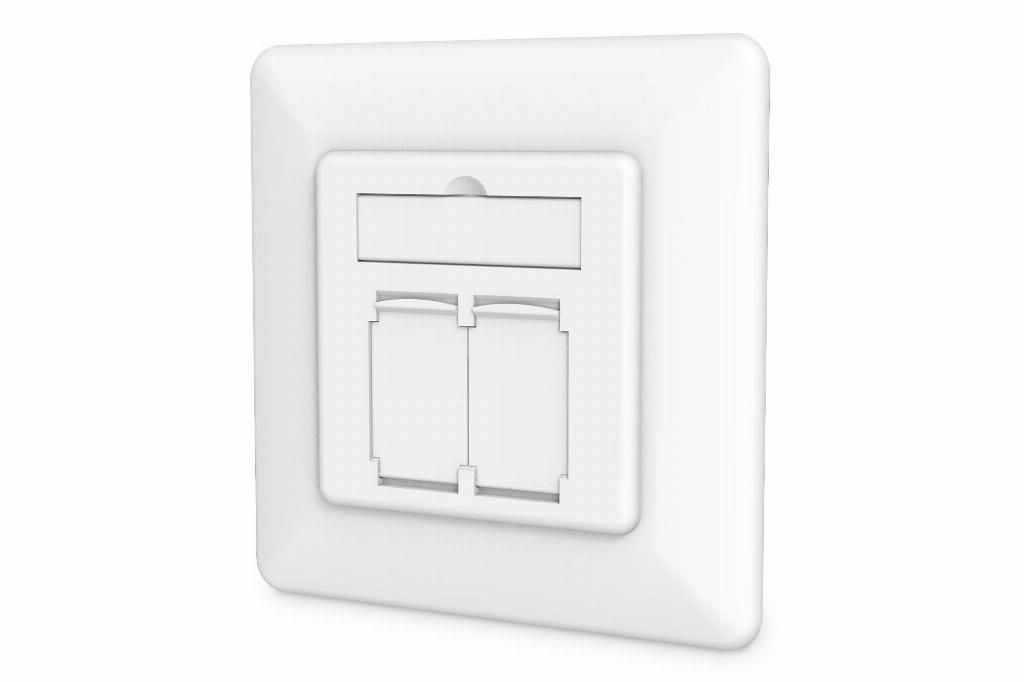

Digitus CAT 6A class EA network socket, design-compatible, shielded, flush-mounted, 4 directions
GTIN: 4016032485735
CAT 6A Class EA network outlet, shielded 2x RJ45, LSA, pure white, flush mount, 4 direction
Future-oriented standards and high-end quality for your network.
- Design-capable - compatible with all common switch ranges

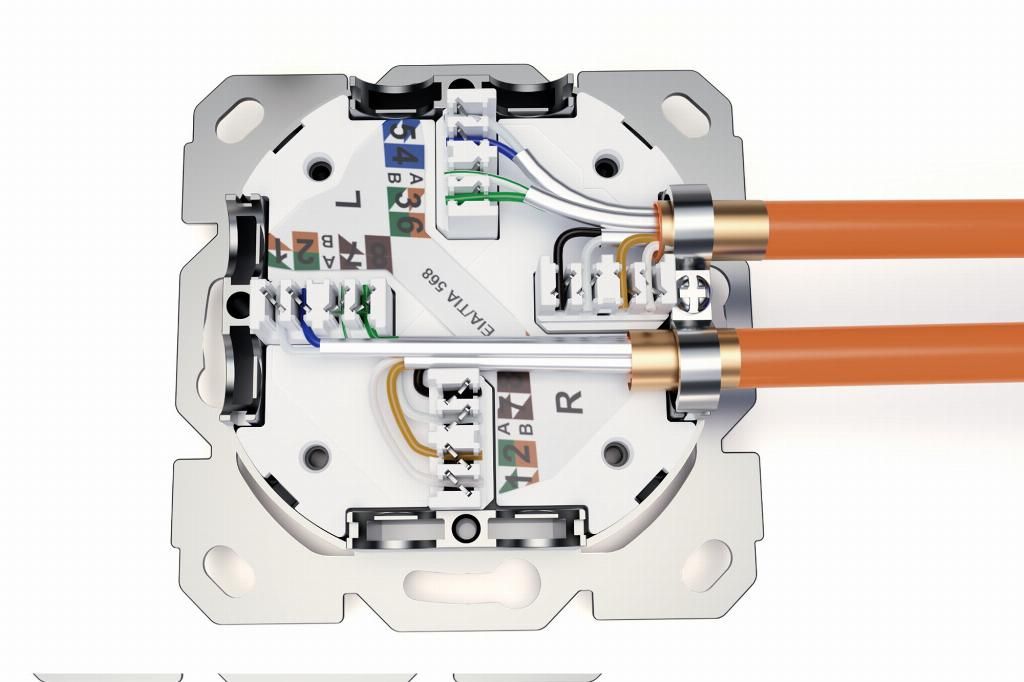

- Easy installation via color-coded LSA insulation displacement connectors
- Central plate with integrated dust protection plate

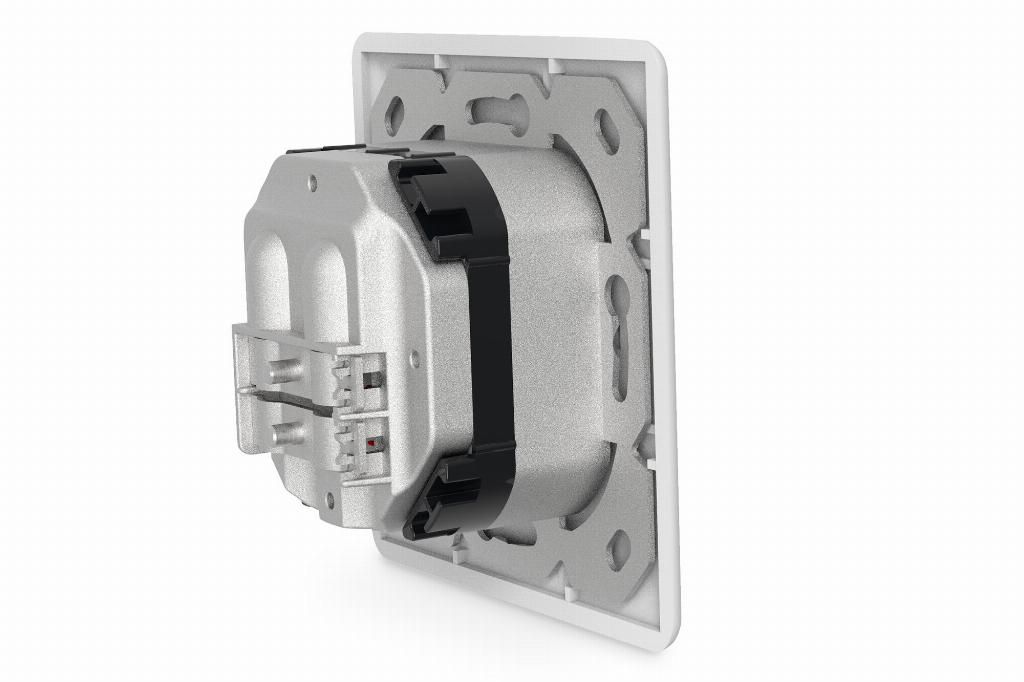

- Integrated strain relief for the shunting cable

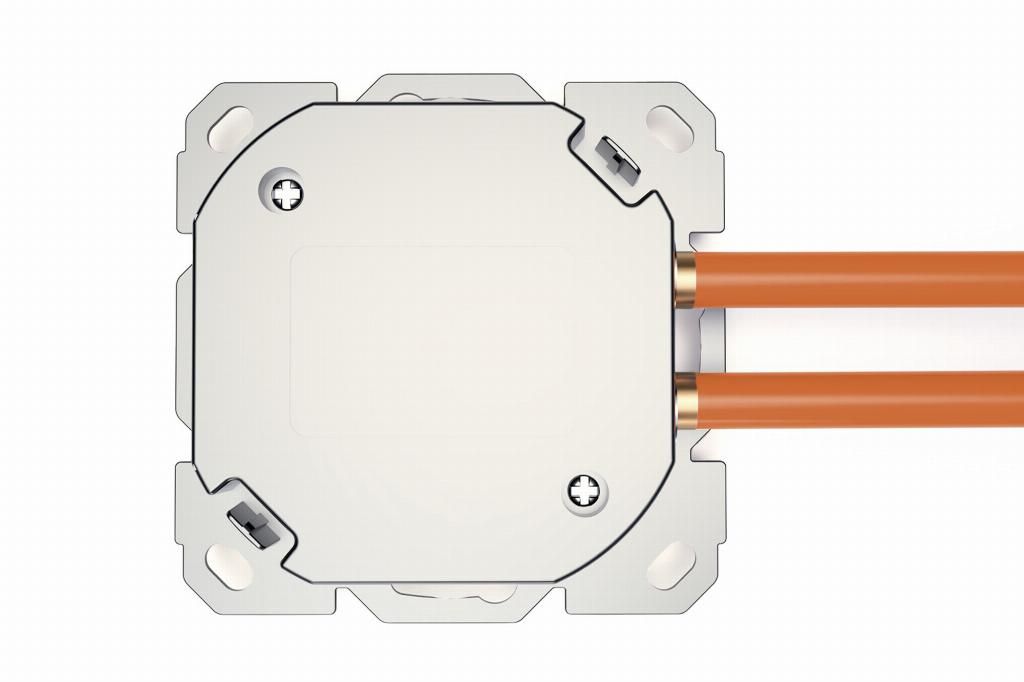

- Flexible cable entry in 4 directions for versatile installations

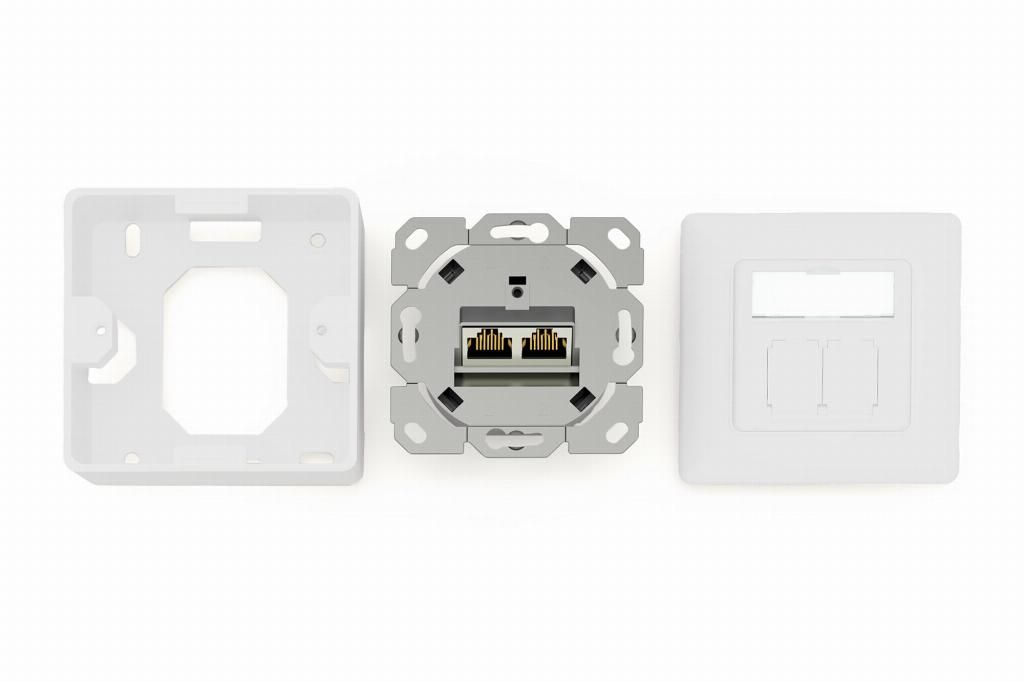

The CAT 6A data connection sockets from DIGITUS® are design-compatible with all standard switch ranges. They are certified to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and have 1 shielded RJ45 socket. The cable is installed via LSA strips, color-coded in accordance with EIA/TIA 568 A & B. The flush-mounted junction box is ideal for connecting your installation cables neatly and tidily. Suitable for installation depths from 28 mm. The box is rounded off by the integrated field of vision, which allows you to label the junction box with an inscription insert.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-9010/8-2 |
| Ean | 4016032485735 |
| Product colour | White |
| Modified on | 04-06-2023 |
| Product title | Digitus CAT 6A Class EA Network Outlet, Design-Compatible, Shielded, Flush Mount |
| Long Product Name | CAT 6A Class EA network outlet, shielded 2x RJ45, LSA, pure white, flush mount, 8 direction |
| Product specifications | FeaturesSocket type* 2 x RJ-45 Sockets quantity* 2 Modules quantity (max) 1 module(s) Networking cable category 6a Frequency 500 MHz Insulation resistance 500 MΩ Input impedance 0.02 Ω Output impedance 0.02 Ω Mounting type Wall DesignProduct colour* White Housing material ABS synthetics, Metal Operational conditionsOperating temperature (T-T) -20 - 70 °C Weight & dimensionsWidth 80 mm Depth 80 mm Height 43 mm Packaging dataQuantity per pack 1 pc(s) Package width 90 mm Package depth 90 mm Package height 60 mm Package weight 11.667 g Package volume 486 cm³ Logistics dataUK Trade Tariff code 85369010 Country of origin China |
| Essential qualities |
|
| Socket type | 2 x RJ-45 |
| Sockets quantity | 2 |
