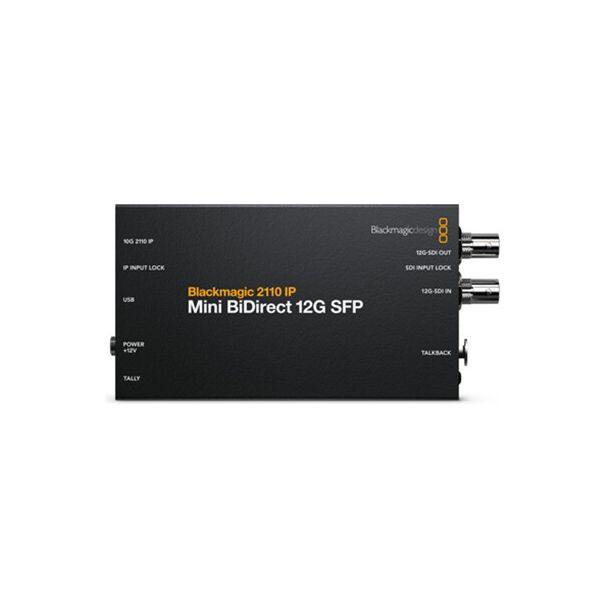

Blackmagic Design CONVNVIPF/IP/12GSFP video signal converter Active video converter
GTIN: 9338716009149
In stock
SKU
BMD-CONVNVIPF/IP/12GSFP
Special Price €363.74 €298.15 Regular Price €408.70
2110 IP Mini BiDirect 12G SFP, 1 x SDI in, 1 x SDI out, 1 x USB-C, 1 x SFP
Blackmagic 2110 IP Mini BiDirect 12G SFP lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems over long distances using optical fiber. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G SFP also has a 5 pin XLR talkback headset connection with talkback volume control and a press to talk button. The SFP socket will accept 10G Ethernet, 3G-SDI, 6G-SDI or 12G-SDI optical modules. It also includes a 12 DC power supply.
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVNVIPF/IP/12GSFP |
| Ean | 9338716009149 |
| Modified on | 20-04-2024 |
| Warranty | 12 Month Limited Manufacturer’s Warranty. |
| Product title | Blackmagic Design CONVNVIPF/IP/12GSFP video signal converter Active video converter |
| Long Product Name | 2110 IP Mini BiDirect 12G SFP, 1 x SDI in, 1 x SDI out, 1 x USB-C, 1 x SFP |
| Product specifications | FeaturesConverter type* Active video converter Internal Yes Reclocking Yes On Screen Display (OSD) No LED indicators Yes Product colour Black Windows operating systems supported Windows 10, Windows 11 Mac operating systems supported Yes VideoSupported video modes 720p, 1080i, 1080p, 2560p Analog signal format system NTSC, PAL Supported chroma subsampling 4:2:2 Colour space supported YUV Serial Digital Interface (SDI) standard SMPTE ST-2110 Bidirectional Yes Ports & interfacesHost interface* SDI (BNC) Output interface* SDI (BNC) Video in 1 x SDI, 1 x SFP Video out 1 x SDI, 1 x SFP Ports & interfacesBNC video output Yes BNC output ports 1 DC-in jack Yes PowerExternal power adapter Yes Operating voltage 12 V Power consumption (typical) 18 W Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 146 mm Depth 74 mm Height 34 mm Packaging dataAC adapter included Yes Logistics dataCountry of origin China |
| Essential qualities |
|
| Converter type | Active video converter |
| Host interface | SDI (BNC) |
| Output interface | SDI (BNC) |
