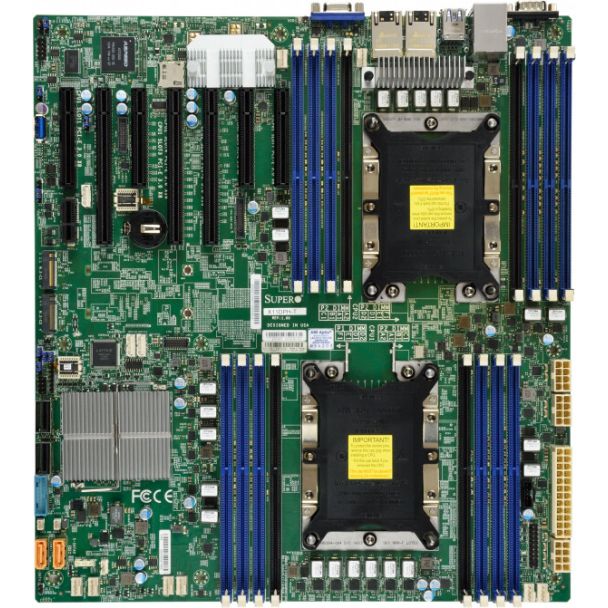

Supermicro X11DPH-T LGA 3647 (Socket P) Extended ATX
GTIN: 0672042271764
E-ATX, Intel Xeon Scalable Processors, 7 USB 3.0 ports (4 rear + 2 via header(s) + 1 Type A)
Major Benefits from Supermicro's in-house Design Superiority
Supermicro motherboard advantages:
- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
- Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
In addition, Supermicro also offers high-performance Embedded motherboards with product life cycles of up to 7 years.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X11DPH-T-B |
| Ean | 0672042271764 |
| Product title | Supermicro X11DPH-T LGA 3647 (Socket P) Extended ATX |
| Long Product Name | E-ATX, Intel Xeon Scalable Processors, 7 USB 3.0 ports (4 rear + 2 via header(s) + 1 Type A) |
| Product specifications | ProcessorProcessor manufacturer* Intel Processor socket* LGA 3647 (Socket P) System bus rate 10.4 GT/s Processor thermal power (max) 205 W MemorySupported memory types* DDR4-SDRAM ECC сompatibility ECC Supported memory clock speeds 2133,2400,2666 MHz Maximum internal memory* 2 TB Maximum RDIMM memory 64 GB Storage controllersSupported storage drive interfaces* SATA III RAID support Yes RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST2500 Internal I/ONumber of SATA III connectors* 10 Rear panel I/O portsUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 7 Ethernet LAN (RJ-45) ports* 2 VGA (D-Sub) ports quantity* 1 COM ports quantity 2 NetworkEthernet LAN Yes Ethernet interface type 10 Gigabit Ethernet Wi-Fi* No FeaturesMotherboard form factor* Extended ATX Expansion slotsPCI Express x8 (Gen 3.x) slots 4 PCI Express x16 (Gen 3.x) slots 3 BIOSBIOS type* UEFI AMI Operational conditionsStorage temperature (T-T) -40 - 70 °C Operating temperature (T-T) 10 - 35 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Logistics dataHarmonized System (HS) code 84733020 Weight & dimensionsWidth 304.8 mm Depth 330.2 mm Other featuresPCI Express x4 (Gen 3.x) slots 2 Supported DIMM module capacities 64GB, 128MB Supported LRDIMM module capacity 64GB Supported LRDIMM clock speeds 2133,2400,2666 MHz Maximum LRDIMM memory 64 GB Supported RDIMM clock speeds 2133,2400,2666 MHz Supported RDIMM module capacity 64GB Number of DIMM slots 16 Number of processors supported 1 |
| Essential qualities |
|
| Processor manufacturer | Intel |
| Processor socket | LGA 3647 (Socket P) |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 2 TB |
| Supported storage drive interfaces | SATA III |
| Number of SATA III connectors | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Motherboard form factor | Extended ATX |
| BIOS type | UEFI AMI |
