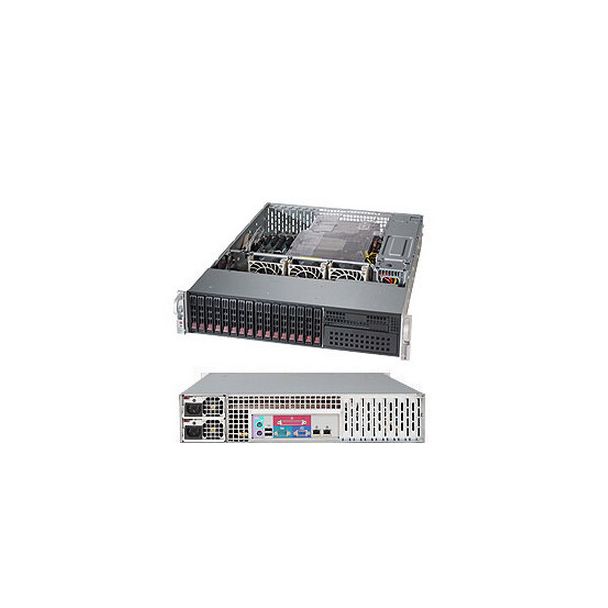

Supermicro SuperServer 2028R-C1R LGA 2011-v3 Rack (2U) Black
Supermicro SuperServer 2028R-C1R, LGA 2011-v3, Intel, 9.6 GT/s, 45 MB, Intel® Xeon®, E5-2600
-black.jpg)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
2. Up to 1TB ECC, up to DDR4 2133MHz; 16x DIMM sockets
3. 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
4. 8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap Drive Bays
5. Integrated IPMI 2.0 with KVM and Dedicated LAN
6. Intel® i350 Dual port GbE LAN
7. I/O ports: 2x SuperDOM, 1x VGA, 2x COM, 2x USB 3.0, 4x USB 2.0
8. 3x 8cm high-performance PWM fans
9. 920W Redundant Power Supplies Platinum Level (94%)
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | SYS-2028R-C1R |
| Ean | 0672042172009 |
| Product title | Supermicro SuperServer 2028R-C1R LGA 2011-v3 Rack (2U) Black |
| Long Product Name | Intel Xeon E5-2600 v3, 16x DIMM, 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots, 8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap Drive Bays, IPMI 2.0, Intel i350 Dual port, I/O ports: 2x SuperDOM, 1x VGA, 2x COM, 2x USB 3.0, 4x USB 2.0 |
| Product specifications | ProcessorProcessor socket* LGA 2011-v3 Processor family Intel Number of processors supported* 1 System bus rate 9.6 GT/s Maximum cache 45 MB Compatible processor series Intel® Xeon® Intel Xeon series E5-2600 MemoryNumber of DIMM slots* 16 Supported memory types* DDR4-SDRAM Maximum internal memory 1 TB Maximum RDIMM memory 32 GB Memory bus 72 bit ECC Yes StorageNumber of storage drives supported* 16 Hot-swap HDD bays* Yes Storage drive sizes supported 2.5" Supported storage drive interfaces Serial Attached SCSI (SAS)-3, Serial ATA III RAID levels 0, 1, 6, 10, 50, 60 GraphicsOn-board graphics card model Aspeed AST2400 NetworkEthernet LAN Yes Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 1000 Mbit/s Copper ethernet cabling technology 1000BASE-T, 100BASE-TX LAN controller Intel® I350 Ports & interfacesUSB 2.0 ports quantity* 4 Ethernet LAN (RJ-45) ports* 3 IPMI LAN (RJ-45) port Yes Ports & interfacesVGA (D-Sub) ports quantity 1 Serial ports quantity 4 Number of SATA III connectors 8 Expansion slotsPCI Express x1 slots 16 Technical detailsCompliance certificates RoHS Logistics dataHarmonized System (HS) code 84714100 DesignChassis type* Rack (2U) Product colour Black LED indicators Yes Redundant fans support Yes Number of fans 3 fan(s) Fan diameter 8 cm PowerPower supply* 920 W AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz DC output current (+5 V) 4 A DC output current (+12 V) 75 A Operational conditionsOperating temperature (T-T) 10 - 35 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 437 mm Depth 630 mm Height 89 mm |
