DeLOCK PCI Express x1 Card to 2 x Serial RS-422/485 with 15 kV ESD protection
GTIN: 4043619900480

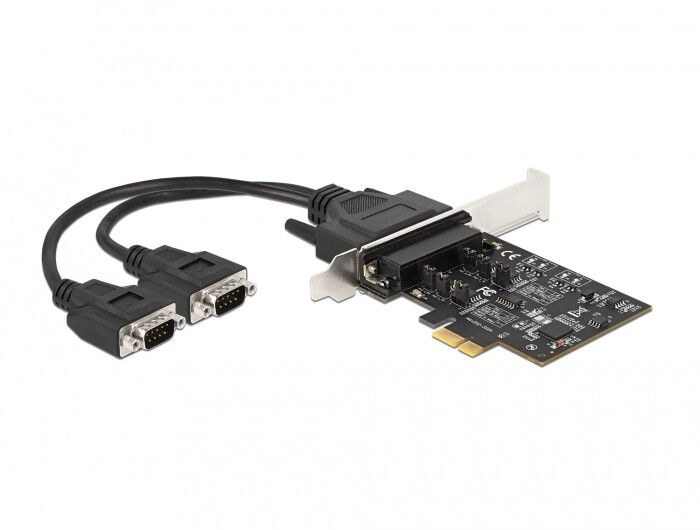

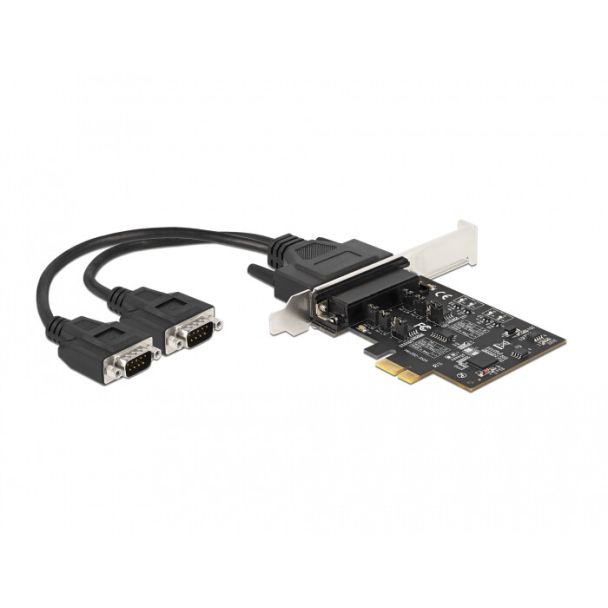

PCI Express x1 Card to 2 x Serial RS-422/485 with 15 kV ESD protection
The PCI Express card by Delock expands a PC by two external serial RS-422/485 ports. Devices such as scanners, protocol converters, POS systems, infrared -, IoT - devices etc. and different modes can be used.
The PCIe card supports 2- and 4-wire operation at both connections for RS-422 and RS-485 devices. In addition, the integrated terminating resistors can optionally be activated, thus avoiding unwanted signal interference.
RS-422 or RS-485 settings
The settings can be set with jumpers on the PCIe card and provide the modes Auto Detect, RS-422 and RS-485 4-wire full duplex and RS-485 2-wire half duplex operation.
Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 90048 |
| Ean | 4043619900480 |
| Taric Code | 84718000 |
| Product title | DeLOCK PCI Express x1 Card to 2 x Serial RS-422/485 with 15 kV ESD protection |
| Long Product Name | PCI Express x1 Card to 2 x Serial RS-422/485 with 15 kV ESD protection |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* Serial Expansion card standard PCIe 2.0 Serial interface type RS-422/485 FeaturesFIFO (First In, First Out) 256 B Data bits 5, 6, 7, 8 Stop bits 1, 1.5, 2 FeaturesFlow control support Yes Parity bit Even, Mark, No, Odd, Space Flow Control type DTR/DSR, RTS/CTS, XON/XOFF System requirementsWindows operating systems supported Yes Linux operating systems supported Yes |
| Output interface | Serial |
| Host interface | PCIe |
