DeLOCK Ring Barcode Scanner 1D and 2D with 2.4 GHz or Bluetooth
GTIN: 4043619906079
Ring Barcode Scanner 1D and 2D with 2.4 GHz or Bluetooth - Wireless Charging Function

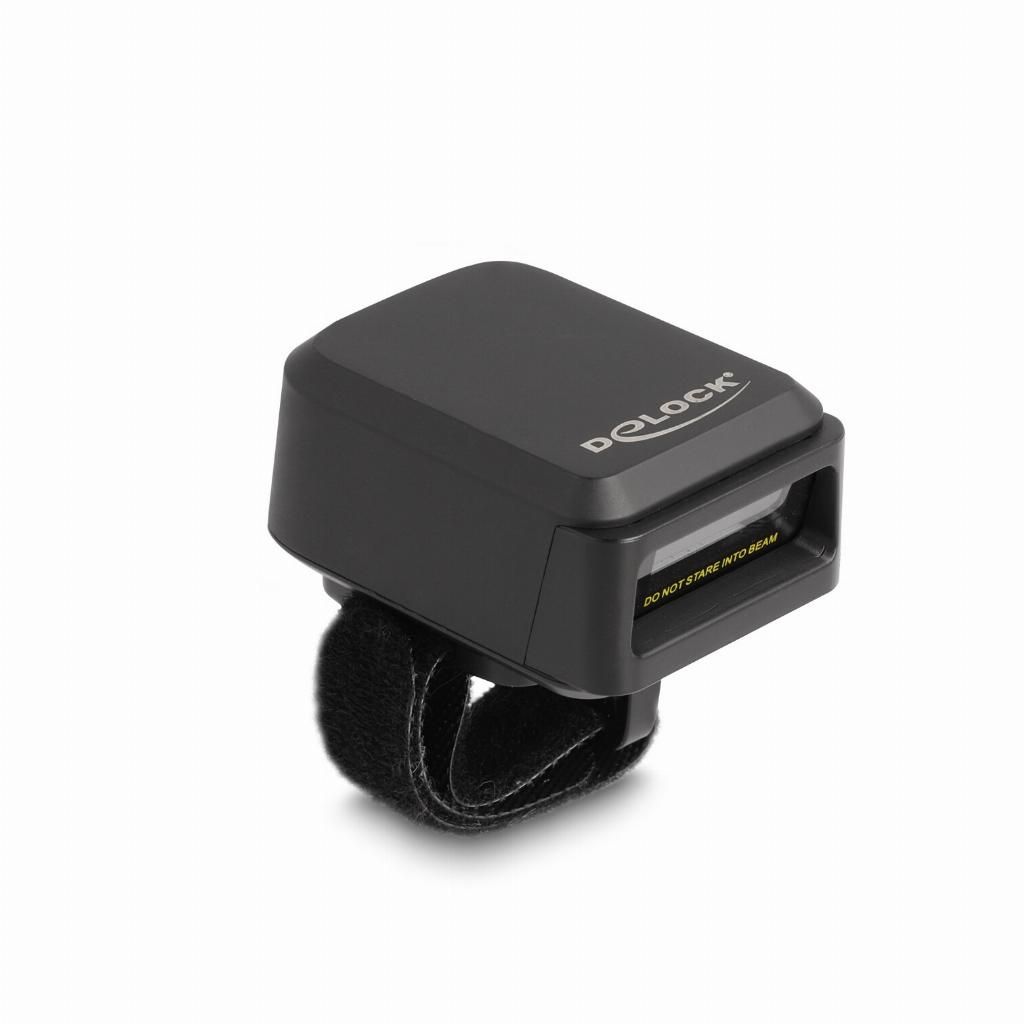

This ring barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 100 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Small and practical
This small ring scanner can be practically attached to the finger with the hook-and-loop fastener, so that the wearer has his hands free, for example in order to hold a cardboard box. Thanks to the rotation possibility, the scanner can be rotated and is thus suitable for both right- and left-handed people.
Transmission via Bluetooth, USB or 2.4 GHz

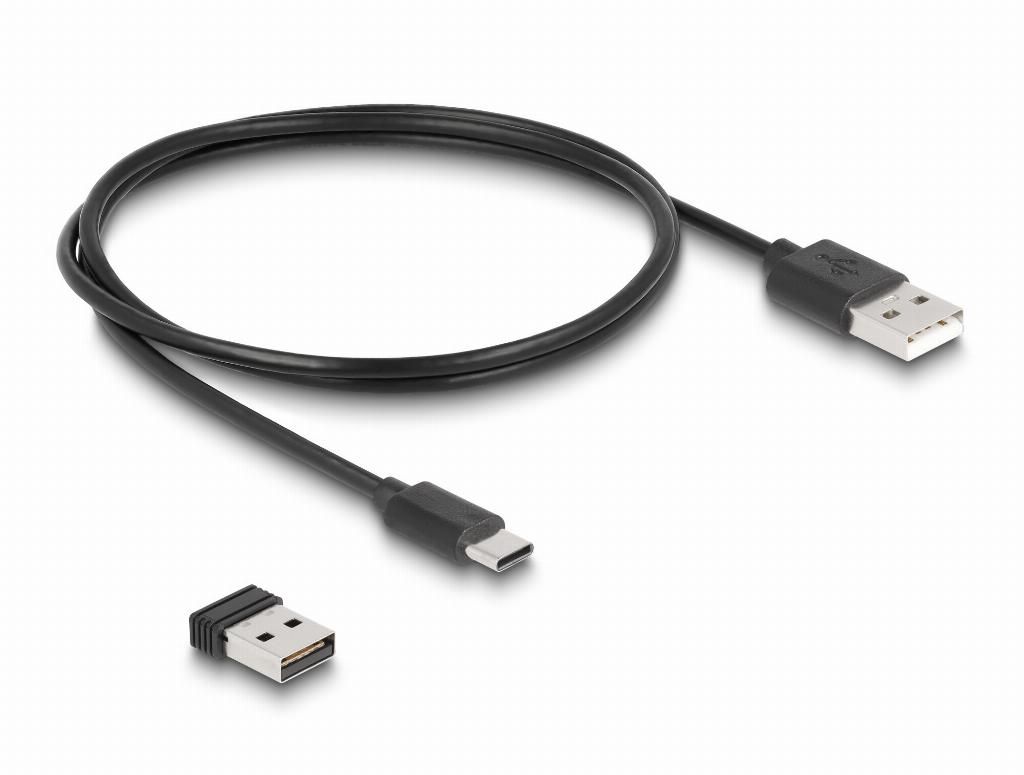

The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.
Wireless Charging
The ring scanner can be charged either via the USB Type-C™ port or using the inductive charging function in the scanner itself. For example, with the Delock charging station 90608.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 90607 |
| Ean | 4043619906079 |
| Taric Code | 84718000 |
| Product title | DeLOCK Ring Barcode Scanner 1D and 2D with 2.4 GHz or Bluetooth |
| Long Product Name | Ring Barcode Scanner 1D and 2D with 2.4 GHz or Bluetooth - Wireless Charging Function |
| Product specifications | ScanningType* Wearable bar code reader Scanner type* 1D/2D Sensor type* CMOS Linear (1D) barcodes supported* Codabar, Code 128, Code 39, EAN-13, EAN-8, ISBN, Interleaved 2 of 5, PDF417 2D (matrix & stacked) barcodes supported* Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code Optical sensor resolution (W x H) 1280 x 800 pixels Working distance 30 cm Read rate (max) 100 reads/s Light levels (direct sunlight) 0 - 10000 lx Pitch reading angle 0 - 360° Ports & interfacesConnectivity technology* Wireless Standard interfaces* Bluetooth USB 2.0 ports quantity 1 Bluetooth version 4.1 Operating frequency 2402 - 2480 MHz Cable length 1 m PerformanceLED indicators Yes Ambient lighting Yes Internal memory 16 MB Built-in processor Yes Product colour* Black Country of origin China PowerPower source type* Battery Battery technology Lithium Polymer (LiPo) Battery type Built-in battery Battery capacity 380 mAh Charging time 2 h Input voltage 3.3 V Power consumption 200 mA Weight & dimensionsWidth 37 mm Depth 53 mm Height 24 mm Weight* 40 g Packaging dataCables included USB Type-C Operational conditionsOperating temperature (T-T) -10 - 60 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 5 - 90% Technical detailsSustainability compliance Yes Compliance certificates CE |
| Essential qualities |
|
| Type | Wearable bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 39, EAN-13, EAN-8, ISBN, Interleaved 2 of 5, PDF417 |
| 2D (matrix & stacked) barcodes supported | Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth |
| Product colour | Black |
| Power source type | Battery |
| Weight | 40 g |
