DeLOCK USB Barcode Scanner 1D and 2D wired for stationary installation - German Version
GTIN: 4043619906000
USB Barcode Scanner 1D and 2D wired for stationary installation - German Version

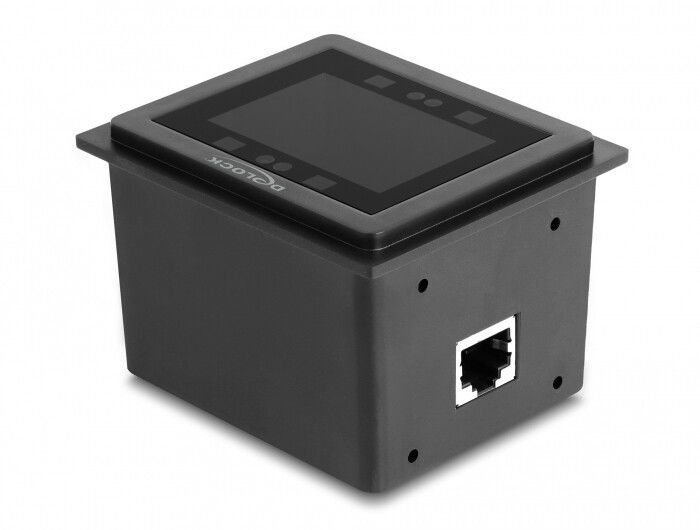

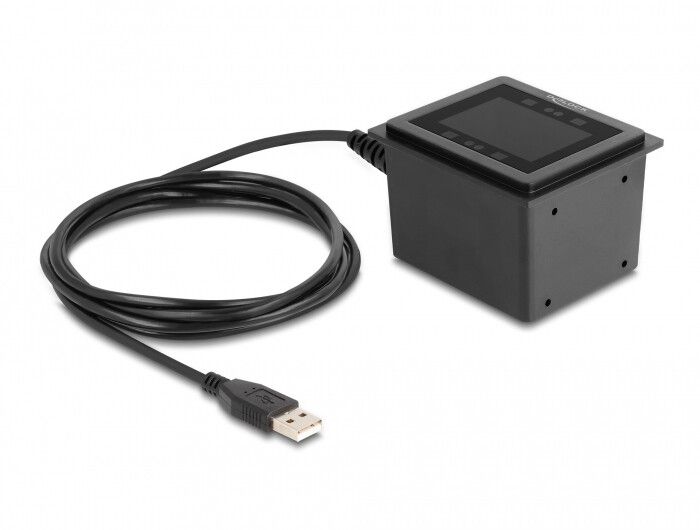

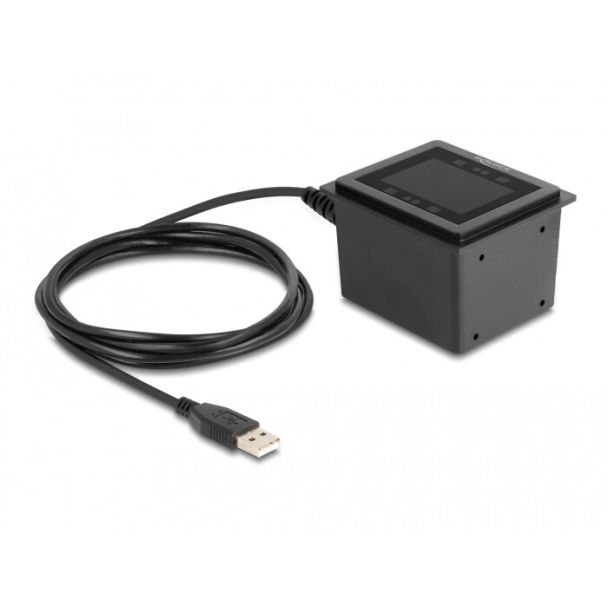

This stationary barcode scanner by Delock is ideal for space-saving installation in a table top and connection to the system. It is also ideal for use in access control, for example in a digitalised turnstile. All common 1D and 2D barcode types can also be precisely captured from the smartphone.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 60 scans per second under optimal lighting conditions.

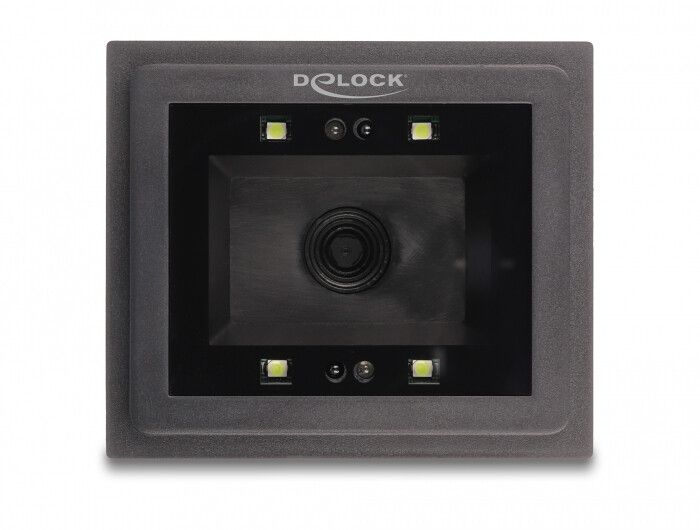

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Transmission via USB

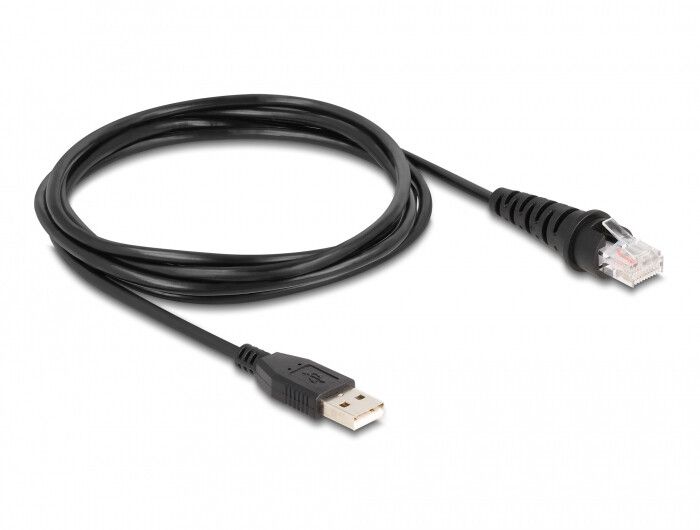

The data transfer of the scanned barcodes is done via the included USB cable.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 90600 |
| Ean | 4043619906000 |
| Taric Code | 84718000 |
| Product title | DeLOCK USB Barcode Scanner 1D and 2D wired for stationary installation - German Version |
| Long Product Name | USB Barcode Scanner 1D and 2D wired for stationary installation - German Version |
| Product specifications | ScanningType* Built-in bar code reader Scanner type* 1D/2D Sensor type* CMOS Linear (1D) barcodes supported* Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, PDF417 2D (matrix & stacked) barcodes supported* Code 39, Data Matrix, Micro QR Code, QR Code Optical sensor resolution (W x H) 752 x 480 pixels Working distance 25 cm Read rate (max) 60 reads/s Ports & interfacesConnectivity technology* Wired Standard interfaces* RJ-50 Cable length 1.5 m PerformanceBuilt-in processor Yes Product colour* Black PowerPower source type* USB Input voltage 5 V Power consumption 100 mA Weight & dimensionsWidth 67 mm Depth 78 mm Height 52 mm Weight* 173 g Packaging dataCables included USB Operational conditionsOperating temperature (T-T) -10 - 50 °C Storage temperature (T-T) -10 - 50 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% |
| Essential qualities |
|
| Type | Built-in bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, PDF417 |
| 2D (matrix & stacked) barcodes supported | Code 39, Data Matrix, Micro QR Code, QR Code |
| Connectivity technology | Wired |
| Standard interfaces | RJ-50 |
| Product colour | Black |
| Power source type | USB |
| Weight | 173 g |
