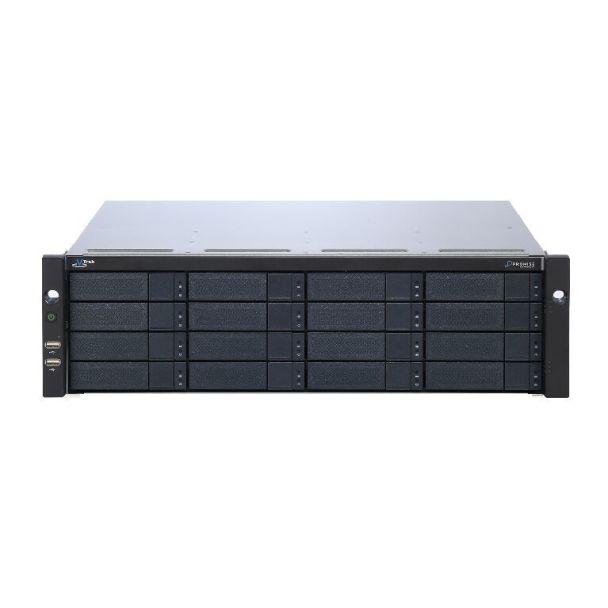

Promise Technology VTrak N1616 Storage server Rack (3U) Intel® Core™ i7 i7-8700 64 GB DDR4 128 TB HDD Black
3U, Intel CPU i7-8700, 64 GB DDR4, 16x 3.5" & 2.5" SATA 6Gb/s HDD/SSD, U.2 NVMe, HDMI, VGA, USB 3.2, RAID, 8x 10G Base-T, 47/63 Hz, 100-240 VAC, 550 W x 2, 128 TB
TierBoost™ available on the VTrak N1616, is a data tier management service that automatically classifies data by frequency of access. “Hot” data is migrated to the fastest tier (NVMe SSD), while the “Cold” data is placed in lower priority tier (SATA HDD), a middle tier (SATA SSD) contains “Warm” data with frequency access in between the other tiers.
Data Protection is Essential
Protection against data loss is ensured by the famous PromiseRAID engine featured in the entire VTrak line of network storage systems. Additional backup mechanisms to cloud or remote storage are easily managed using the web-based management interface.
Manageability
Simplified administration is another win for VTrak N-Series. The system is shipped ready to use with a Shared Storage pool that includes an administrator-controlled Team folder setup for immediate sharing. The software for both administrator and client is very easy to use, with an intuitive GUI. The default setup requires very little administration yet still gives complete access control to the administrator. More advanced system administration is available using the web-based management user interface.
| Product Condition | New |
|---|---|
| Manufacturer | Promise Technology |
| manufacturer code | F40VN1600000020 |
| Cooling type | Active |
| Product title | Promise Technology VTrak N1616 Storage server Rack (3U) Intel® Core™ i7 i7-8700 64 GB DDR4 128 TB HDD Black |
| Long Product Name | 3U, Intel CPU i7-8700, 64 GB DDR4, 16x 3.5" & 2.5" SATA 6Gb/s HDD/SSD, U.2 NVMe, HDMI, VGA, USB 3.2, RAID, 8x 10G Base-T, 47/63 Hz, 100-240 VAC, 550 W x 2, 128 TB |
| Product specifications | StorageStorage drive capacity* 8 TB Storage drive interface* Serial ATA III Supported storage drive interfaces Serial ATA III, U.2 Storage drive sizes supported 2.5,3.5" Maximum supported storage capacity 18 TB RAID support* Yes RAID levels 0, 1, 5, 6, 10, 50, 60 Hot-swap drive bays Yes Storage drives installed* Yes Total installed storage capacity* 128 TB Number of storage drives installed* 16 Number of storage drives supported* 16 Installed storage drive type* HDD Supported storage drive types* HDD & SSD ProcessorProcessor manufacturer* Intel Processor family* Intel® Core™ i7 Processor model* i7-8700 Processor frequency* 3.2 GHz Processor boost frequency 4.6 GHz Processor cores 6 Processor threads 12 Processor cache 12 MB Bus type DMI3 CPU configuration (max) 1 MemoryInternal memory* 64 GB Internal memory type DDR4 Maximum RAM supported 128 GB Memory slots 4 NetworkEthernet LAN* Yes Ethernet LAN data rates 10000 Mbit/s Ethernet LAN data rate supported (max) 10000 Mbit/s Copper ethernet cabling technology 10GBASE-T Supported network protocols CIFS / NFS / FTP / WebDAV Ports & interfacesUSB port* Yes USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Ports & interfacesVGA (D-Sub) ports quantity 1 HDMI ports quantity 1 Serial ports quantity 1 Ethernet LAN (RJ-45) ports* 4 DesignChassis type* Rack (3U) Cooling type* Active Product colour Black LED indicators Yes PerformanceType* Storage server Device class* Small & Medium Business Backup function* Yes On/off switch Yes SoftwareWindows operating systems supported Windows 10 Mac operating systems supported Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura PowerPower supply location Built-in Power supply unit (PSU) capacity 550 W Number of power supply units 2 AC input voltage 100 - 240 V AC input frequency 47/63 Hz Fan voltage 12 V Weight & dimensionsWidth* 447 mm Depth* 503 mm Height* 131 mm Weight 34 kg Processor special featuresIntel Identity Protection Technology version 1.00 Intel Secure Key Technology version 1.00 Intel Stable Image Platform Program (SIPP) version 1.00 Intel TSX-NI version 1.00 Operational conditionsOperating temperature (T-T) 5 - 35 °C Storage temperature (T-T) -40 - 60 °C Other featuresThroughput 10 SSD TierBoost |
| Essential qualities |
|
| Storage drives installed | Yes |
| Total installed storage capacity | 128 TB |
| Number of storage drives installed | 16 |
| Number of storage drives supported | 16 |
| Installed storage drive type | HDD |
| Storage drive interface | Serial ATA III |
| RAID support | Yes |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Processor model | i7-8700 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| Type | Storage server |
| Device class | Small & Medium Business |
| Backup function | Yes |
