Digitus CAT 7 S/FTP data cable - underground installation cable, 500 m, simplex, PE
GTIN: 4016032431084
DIGITUS CAT 7 S-FTP PiMF installation cable, raw 500m, drum, AWG 23/1, 1200 MHz, PE, sx, bl
Future-oriented standards and high-end quality for your network.
- 10GBit Ethernet
- 1200 MHz transmission frequency
- Permanent Link certified
- PoE Power over Ethernet support
- PE outer sheath, BauPVO class Eca inner sheath

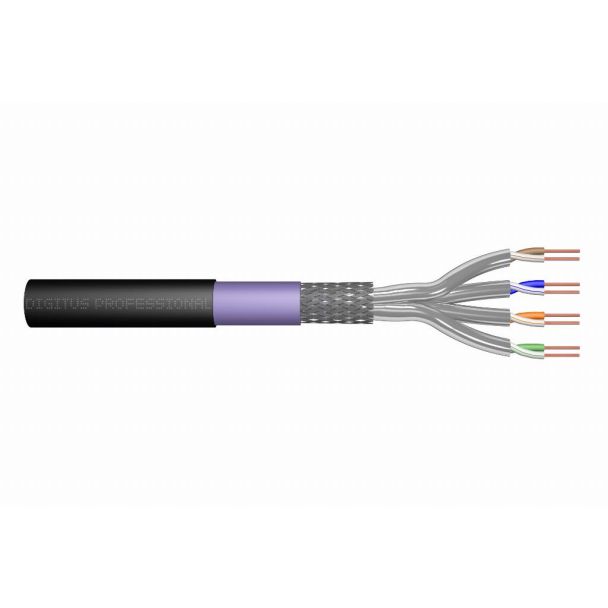

The Digitus® Professional Cat.7 S/FTP underground cable is characterized by the following cable structure 4x2x AWG23/1 and achieves a transmission frequency of up to 1200 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and conforms to the IEC 60332-1, FRNC-B, LSZH-1 and BauPVO Euroclass Eca standards. The cable is suitable for installations in dry or damp rooms, outdoors or in the ground. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-1741-VH-5-OD |
| Ean | 4016032431084 |
| Modified on | 11-06-2017 |
| Product title | ASSMANN Electronic DK-1741-VH-5-OD networking cable Black 500 m Cat7 SF/UTP (S-FTP) |
| Product specifications | FeaturesProduct colour* Black Cable length* 500 m Cable standard* Cat7 Cable shielding* SF/UTP (S-FTP) Connector 1* No Connector 2* No Connector 1 gender* No FeaturesConnector 2 gender* No Connector contacts plating Nickel Jacket material Polyethylene (PE) Conductor type Solid AWG wire size 23/1 Frequency 1200 MHz |
| Essential qualities |
|
| Product colour | Black |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Cable length | 500 m |
| Cable standard | Cat7 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | No |
| Connector 2 | No |
