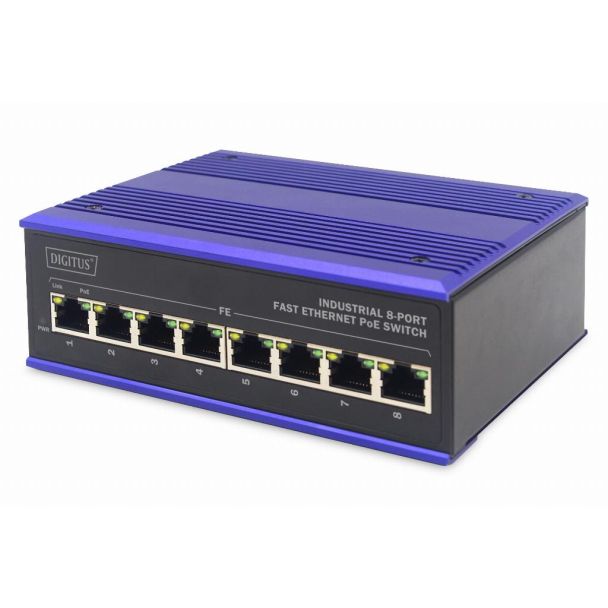

Digitus 8 Port Fast Ethernet Network PoE Switch,Industrial, Unmanaged
GTIN: 4016032458869
Industrial 8-Port Fast Ethernet PoE Switch DIN rail, extended temp. range
Robust and durable industrial solutions with integrated Power over Ethernet (PoE) function
- Industrial 8-port Fast Ethernet PoE switch
- 8 x 10/100Base-TX Ethernet PoE ports
- DIN Rail mountable
The DIGITUS® Industrial Fast Ethernet Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibrations. With a temperature range of -40°C to 80°C, the Industrial Fast Ethernet Switch can be used under the most adverse conditions. Thanks to the PoE ports with IEEE802.3af/at support, PoE-capable devices can be supplied with up to 30 W per port. Constant availability is guaranteed in highly sensitive areas such as transportation, production, traffic and security surveillance. Thanks to the simple plug-and-play system, the Industrial Fast Ethernet Switch can be quickly integrated into the respective environment. Thanks to its Fast Ethernet connectivity, the Industrial Fast Ethernet Switch is a flexible, cost-effective solution for industrial environments.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-650108 |
| Ean | 4016032458869 |
| Rack mounting | No |
| Modified on | 10-09-2019 |
| Product title | ASSMANN Electronic DN-650108 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black, Blue |
| Product specifications | Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Fast Ethernet (10/100) NetworkNetworking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x 10G support* No Copper ethernet cabling technology 10BASE-T, 100BASE-TX Cable types supported Cat3, Cat4, Cat5 Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes MAC address auto-learning supported Yes MAC address auto-aging supported Yes Data transmissionSwitching capacity* 1.6 Gbit/s MAC address table* 2000 entries Store-and-forward Yes DesignProduct colour Black, Blue Housing material Metal LED indicators Yes Wall mountable Yes DIN rail mounting Yes PerformanceMean time between failures (MTBF) 300000 h PowerPower supply included* No Redundant power supply (RPS) support Yes DC input voltage 48 - 57 V Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Power over Ethernet (PoE) ports quantity 8 Power over Ethernet (PoE) power per port 30 W Operational conditionsOperating temperature (T-T) -40 - 85 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 120 mm Depth 157 mm Height 48 mm Packaging dataUser guide Yes Logistics dataHarmonized System (HS) code 85176990 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3at |
| 10G support | No |
| Switching capacity | 1.6 Gbit/s |
| Power over Ethernet (PoE) | No |
