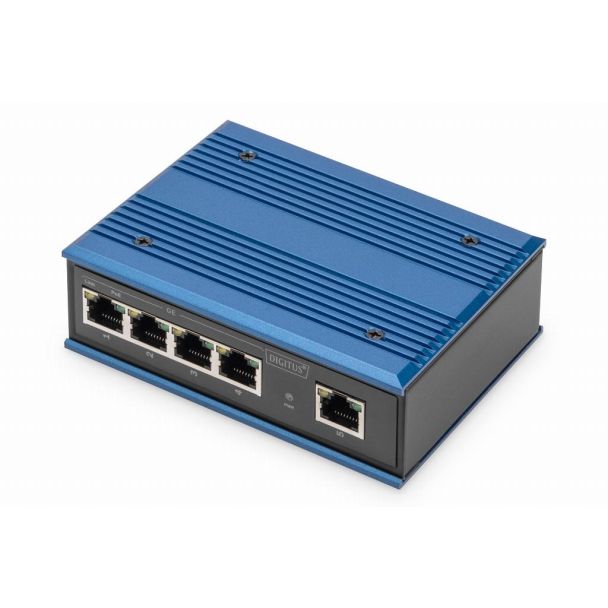

Digitus 4 Port Gigabit Network PoE Switch, Industrial, Unmanaged, 1 RJ45 Uplink
GTIN: 4016032458876
Industrial 4-Port Gigabit PoE Switch + 1 uplink DIN rail, extended temp. range
Robust and durable industrial solutions with integrated Power over Ethernet (PoE) function
- Industrial 4-Port Gigabit PoE Switch + 1 uplink port
- 4 x 10/100/1000Base-TX Ethernet PoE ports
- 1 x 10/100/1000Base-TX Ethernet uplink port
The DIGITUS® Industrial Gigabit Switch is designed for harsh environments where it is exposed to moisture, temperature fluctuations and vibration. With a temperature range of -40°C to 80°C, the Industrial Gigabit Switch can be used under the most adverse conditions. The PoE ports with IEEE802.3af/at support can supply PoE capable devices with up to 30 W per port. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity, the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651120 |
| Ean | 4016032458876 |
| Rack mounting | No |
| Modified on | 10-09-2019 |
| Product title | ASSMANN Electronic DN-651120 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Blue |
| Product specifications | Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 5 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) NetworkNetworking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G support* No Copper ethernet cabling technology 10BASE-T, 100BASE-TX Flow control support Yes Auto MDI/MDI-X Yes MAC address auto-learning supported Yes MAC address auto-aging supported Yes Data transmissionSwitching capacity* 10 Gbit/s MAC address table* 4000 entries Store-and-forward Yes DesignProduct colour Black, Blue LED indicators Yes Wall mountable Yes DIN rail mounting Yes PerformanceMean time between failures (MTBF) 300000 h PowerPower supply included* No Redundant power supply (RPS) support Yes DC input voltage 48 - 57 V Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Power over Ethernet (PoE) ports quantity 4 Power over Ethernet (PoE) power per port 30 W Operational conditionsOperating temperature (T-T) -40 - 85 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 0 - 95% Storage relative humidity (H-H) 0 - 95% Weight & dimensionsWidth 86 mm Depth 128 mm Height 34 mm Packaging dataUser guide Yes Logistics dataHarmonized System (HS) code 85176990 |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3at |
| 10G support | No |
| Switching capacity | 10 Gbit/s |
| Power over Ethernet (PoE) | Yes |
