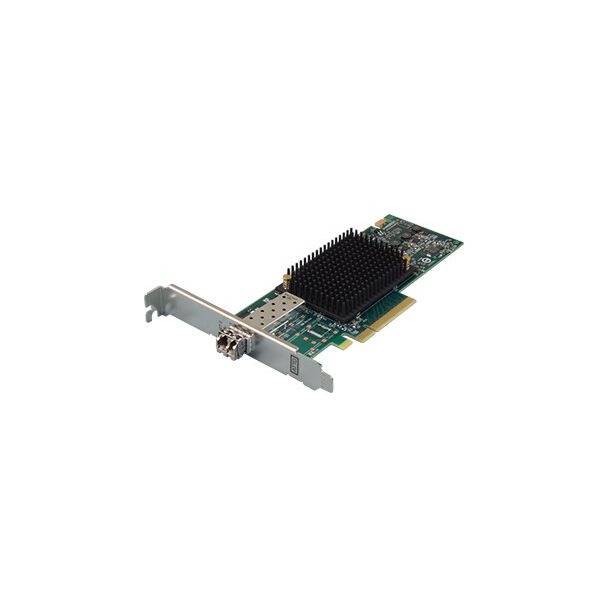

Atto FC-161P Internal Ethernet 1600 Mbit/s
16Gb/s Gen 6 Fibre Channel PCIe 3.0 Host Bus Adapter
The ATTO Celerity FC-161P leverages two next-generation storage technologies – PCIe 3.0 interconnect and 16-Gigabit Fibre Channel to provide an advanced storage connectivity solution with high performance, intelligence and scalability. Celerity FC-161P 16Gb/s single-channel HBAs deliver up to 1600 MB/s in a single PCIe slot solution, allowing original equipment manufacturers and system integrators to design state-of-the-art data infrastructures.
Meeting tomorrow's connectivity needs today, Celerity Fibre Channel Host Bus Adapters (HBAs) increase overall Fibre Channel system performance and drive intelligence all the way to the edge of the SAN utilizing ATTO's Advanced Data Streaming (ADS™) Technology. Included with all ATTO HBAs are easy-to-use utilities ConfigTool™ enabling management, monitoring and configuration which leverages an intuitive GUI.
| Product Condition | New |
|---|---|
| Manufacturer | Atto Technology |
| manufacturer code | CTFC-161P-000 |
| Warranty | 3 years |
| Product title | Atto FC-161P Internal Ethernet 1600 Mbit/s |
| Long Product Name | 16Gb/s Gen 6 Fibre Channel PCIe 3.0 Host Bus Adapter |
| Product specifications | Ports & interfacesConnectivity technology* Wired Host interface* PCI Express Interface* Ethernet PCI version 3.0 NetworkMaximum data transfer rate* 1600 Mbit/s Wi-Fi No DesignProduct colour Green Internal* Yes LED indicators Yes PowerPower consumption (typical) 9.6 W Operational conditionsOperating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 167.5 mm Depth 167.5 mm Height 68.8 mm Technical detailsCompliance certificates RoHS Logistics dataHarmonized System (HS) code 85176990 |
| Essential qualities |
|
