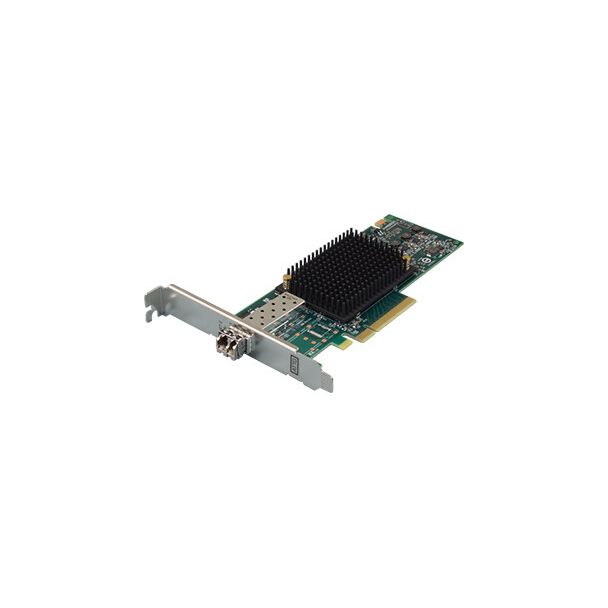

Atto FC-321E Internal Ethernet 3200 Mbit/s
Atto FC-321E, Internal, Wired, PCI Express, Ethernet, 3200 Mbit/s, Green
The ATTO Celerity FC-321E leverages two next-generation storage technologies – PCIe 3.0 interconnect and 32-Gigabit Fibre Channel to provide an advanced storage connectivity solution with high performance, intelligence and scalability. Celerity FC-321E 32Gb/s single-channel HBAs deliver up to 3200 MB/s in a single PCIe slot solution, allowing original equipment manufacturers and system integrators to design state-of-the-art data infrastructures.
Meeting tomorrow's connectivity needs today, Celerity Fibre Channel Host Bus Adapters (HBAs) increase overall Fibre Channel system performance and drive intelligence all the way to the edge of the SAN utilizing ATTO's Advanced Data Streaming (ADS™) Technology. Included with all ATTO HBAs are easy-to-use utilities ConfigTool™ enabling management, monitoring and configuration which leverages an intuitive GUI.
| Product Condition | New |
|---|---|
| Manufacturer | Atto Technology |
| manufacturer code | CTFC-321E-000 |
| Warranty | 3 years |
| Product title | Atto FC-321E Internal Ethernet 3200 Mbit/s |
| Long Product Name | Single-Channel 32Gb/s Gen 6 Fibre Channel PCIe 3.0 Host Bus Adapter |
| Product specifications | Ports & interfacesConnectivity technology* Wired Host interface* PCI Express Interface* Ethernet PCI version 3.0 NetworkMaximum data transfer rate* 3200 Mbit/s Wi-Fi No DesignProduct colour Green Internal* Yes PowerPower consumption (typical) 9.8 W Operational conditionsOperating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsDepth 167.5 mm Height 68.8 mm Technical detailsCompliance certificates RoHS Logistics dataHarmonized System (HS) code 85176990 |
