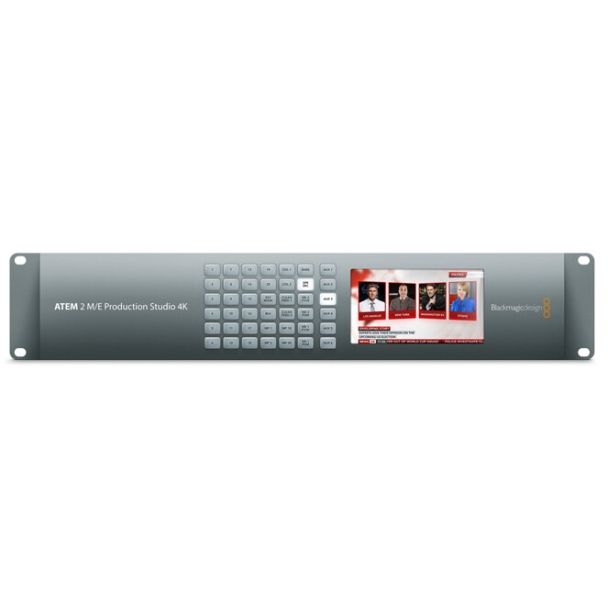

Blackmagic Design ATEM 2 M/E Production Studio 4K 21/16 BNC I/O, HDMI, XLR, 2160p29.97
GTIN: 9338716002638
Blackmagic Design ATEM 2 M/E Production Studio 4K, BNC, Mini USB Type-B, Grey, 59.94 fps, 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 525i, 625i, 720p, 1080i, 1080p, 2160p
The new ATEM 2 M/E Production Studio 4K lets you produce broadcast quality live multi camera production in SD, HD or amazing Ultra HD! Featuring 20 inputs with built in re-synchronizers so you can connect the widest range of video sources such as cameras, disk recorders and computers for incredible live music, sport and more! ATEM 2 M/E Production Studio 4K has advanced broadcast features such as chroma key, customizable transitions, upstream and downstream keyers, DVE, Super Source, audio mixer, 2 x multi views, media pool and more! You also get 6G-SDI and HDMI 4K connections and 6 auxiliary outputs for the most advanced live production switching!
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | SWATEMPSW2ME4K |
| Ean | 9338716002638 |
| Modified on | 01-02-2019 |
| Warranty | 12 Month Limited Manufacturer's Warranty |
| Product title | Blackmagic Design ATEM 2 M/E Production Studio 4K BNC |
| Long Product Name | 21/16 BNC I/O, HDMI, XLR, 2160p29.97 |
| Product specifications | Ports & interfacesVideo port type* BNC HDMI in 1 Number of HDMI outputs 3 USB port type Mini USB Type-B BNC input ports 21 BNC output ports 16 FeaturesProduct colour Grey Maximum frame rate 59.94 fps Supported graphics resolutions 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 Supported video modes 525i, 625i, 720p, 1080i, 1080p, 2160p Colour depth 10 bit Rack capacity 2U Display type LCD PowerAC input voltage 110 - 240 V Power consumption (typical) 150 W Weight & dimensionsWidth 482 mm Depth 235 mm Height 90 mm Weight 4.1 kg Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% |
