Bolin KBD Plus – Advanced PTZ controller with 4" touchscreen and 4-stream video decoding
GTIN: 6973775122632
Advanced PTZ production controller with 4" touchscreen, built-in decoding of up to 4 IP video streams with multiview, HDMI 2.0 and USB-C (UVC) outputs, 4-axis joystick, up to 255 cameras, multi-protocol, PoE+.
Bolin KBD Plus Advanced PTZ Production Controller

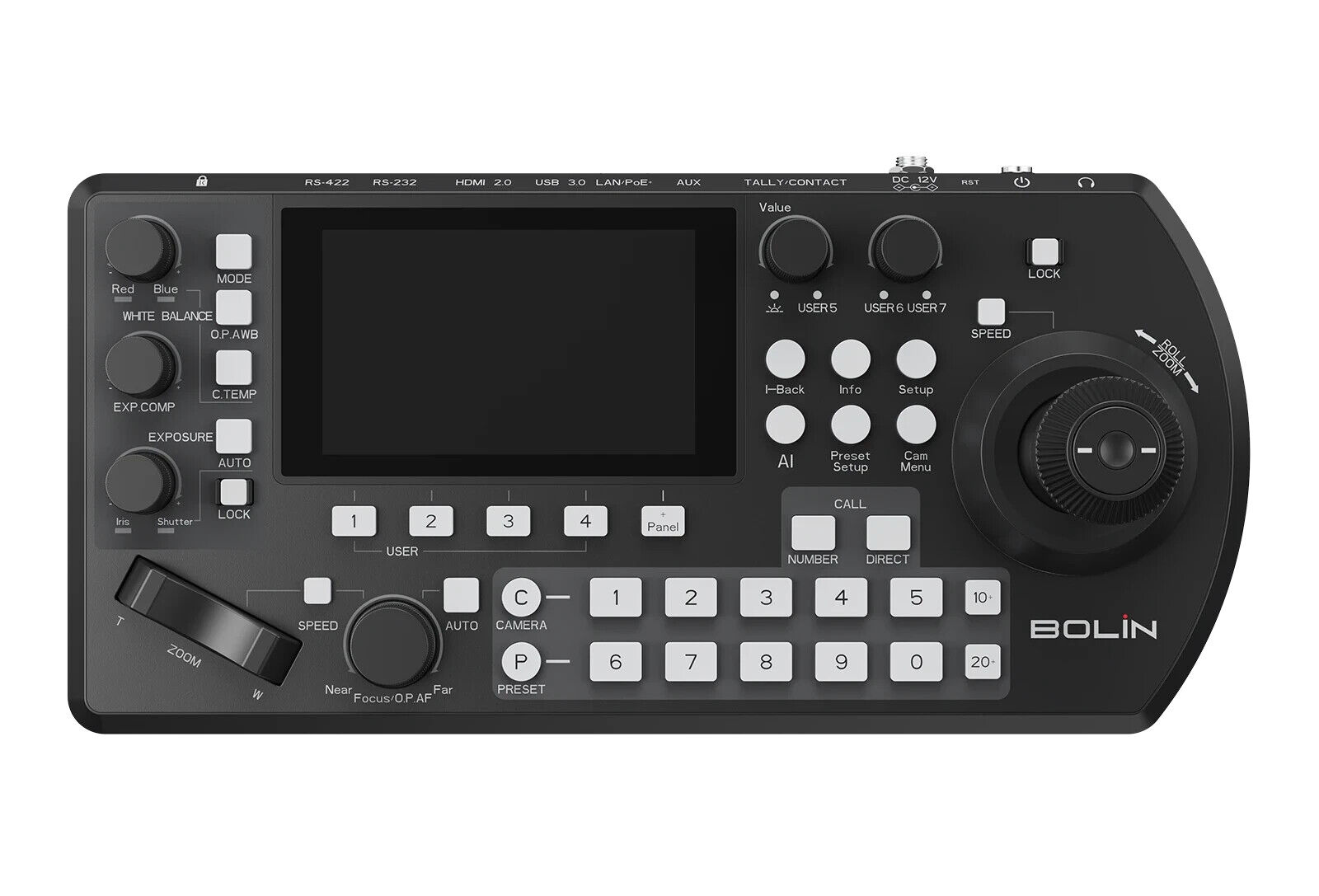

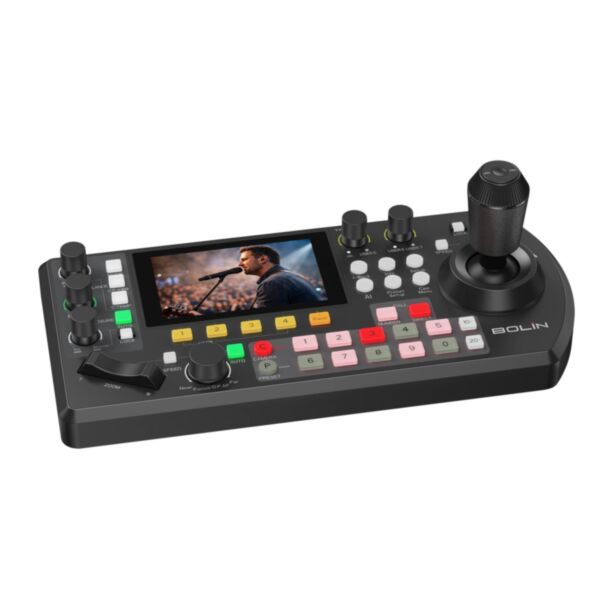

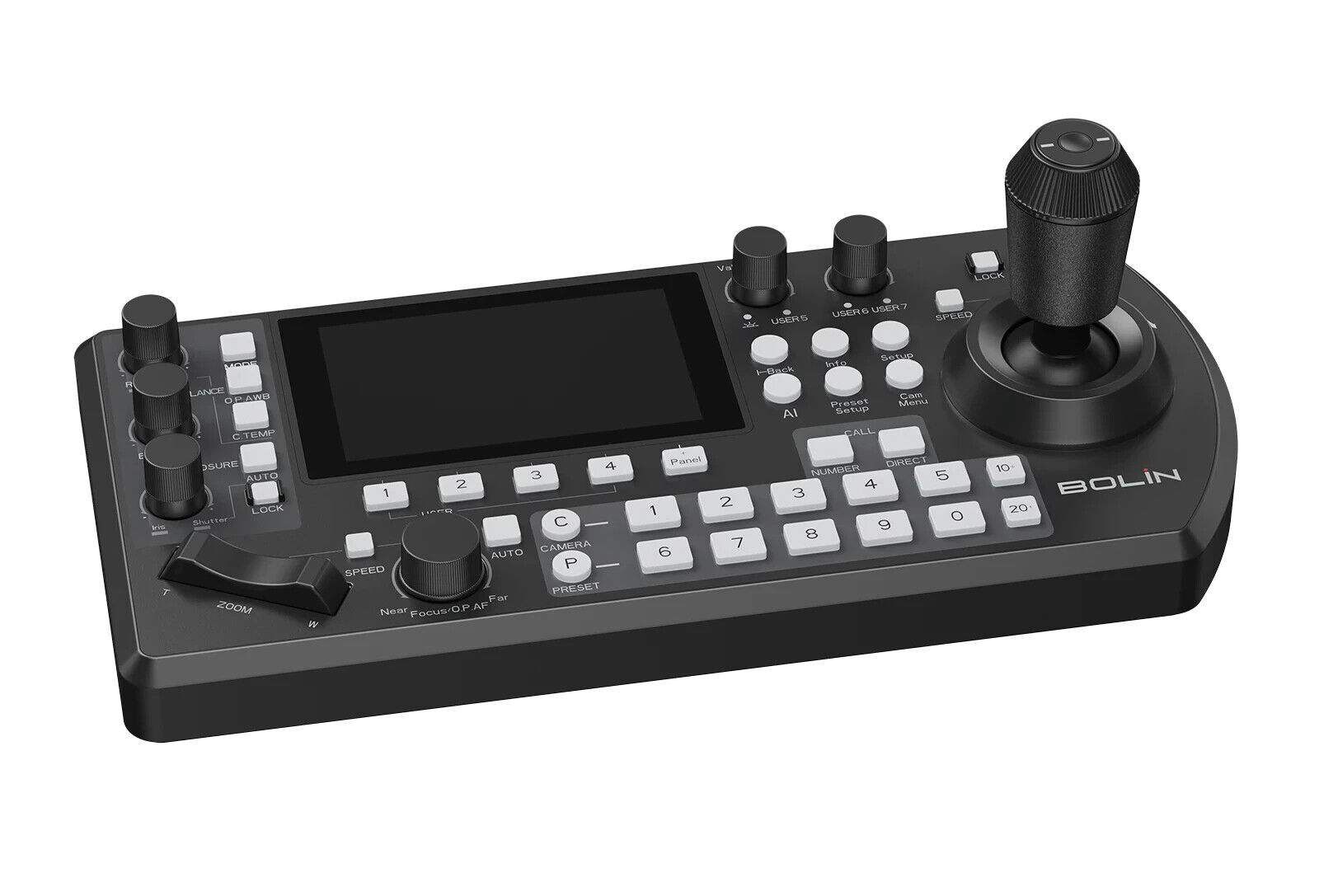

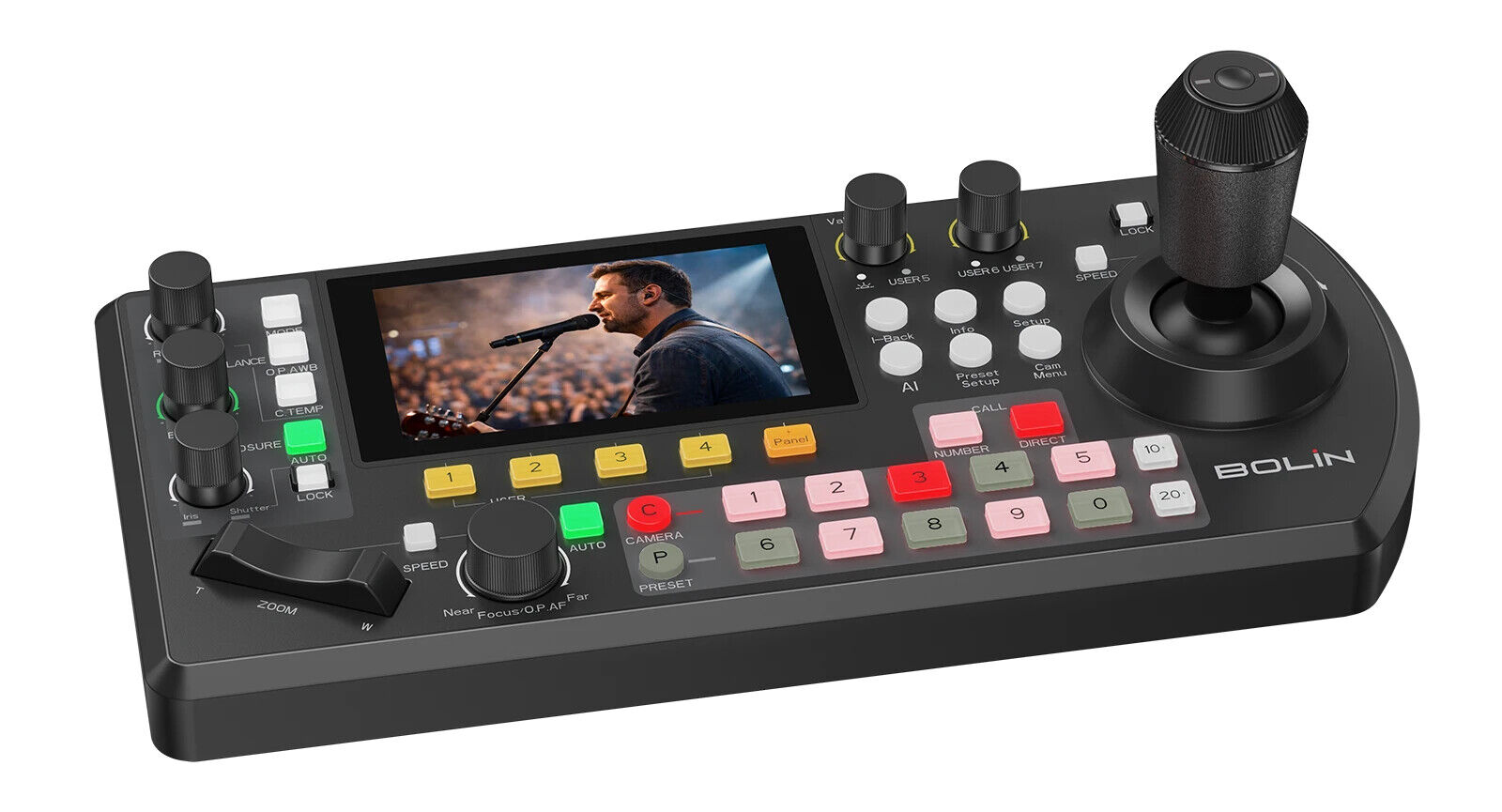

The Bolin KBD Plus is an advanced PTZ production controller for broadcast, live production, houses of worship, corporate AV and education. Built for IP-based workflows, it controls multiple cameras with precision and speed while showing their video: at its centre a 4" touchscreen provides live monitoring, multiview and quick access to camera control and system settings.
The built-in decoder shows up to four IP camera feeds at once with low latency. The decoded video can be sent to an external monitor over HDMI 2.0, in single view or multiview, and over USB-C with UVC support, so a computer sees the controller as a plug-and-play webcam for streaming or video calls.
It supports VISCA over IP, VISCA serial, NDI, Pelco P/D, ONVIF, the Bolin BCX protocol and the Panasonic AW and Canon XC protocols (PTZ functions), over the network or via RS-232 and RS-422, for Bolin and many third-party PTZ cameras. A precision joystick, a zoom rocker for two-handed operation, a focus dial and dedicated white balance and exposure dials give direct control without menus; with compatible Bolin cameras it also controls the roll axis for horizon correction or vertical video. User-definable buttons and knobs, the on-screen "+" panel and direct recall of cameras and presets adapt it to each workflow. It is powered by PoE+ or 12 V DC and has tally/GPIO, a headphone jack and a security slot.
Key features
- 4" 800 x 480 multi-touch screen with live view and multiview
- Decoding of up to 4 IP video streams (RTSP H.264/H.265, NDI HX3/HX2, RTMP)
- HDMI 2.0 output (single view or multiview) and USB-C UVC output (webcam)
- Up to 255 cameras, multi-protocol control
- IP protocols: VISCA over IP, NDI, ONVIF, Pelco P/D, Bolin BCX, Panasonic AW, Canon XC; serial: VISCA, Pelco P/D
- High-precision 4-axis joystick: pan, tilt, roll and zoom
- Roll axis control for compatible Bolin cameras
- Zoom rocker, focus dial, dedicated white balance and exposure dials
- 5 joystick movement curves (Sport, Active, Linear, Smooth, Cinematic)
- User-definable buttons and knobs, on-screen "+" panel, direct or number recall of cameras and presets
- RS-232, RS-422, LAN with PoE+, tally/GPIO, 3.5 mm headphone jack, security slot
- AI tracking and OSC planned in future firmware updates
Specifications
- Model: KBD Plus

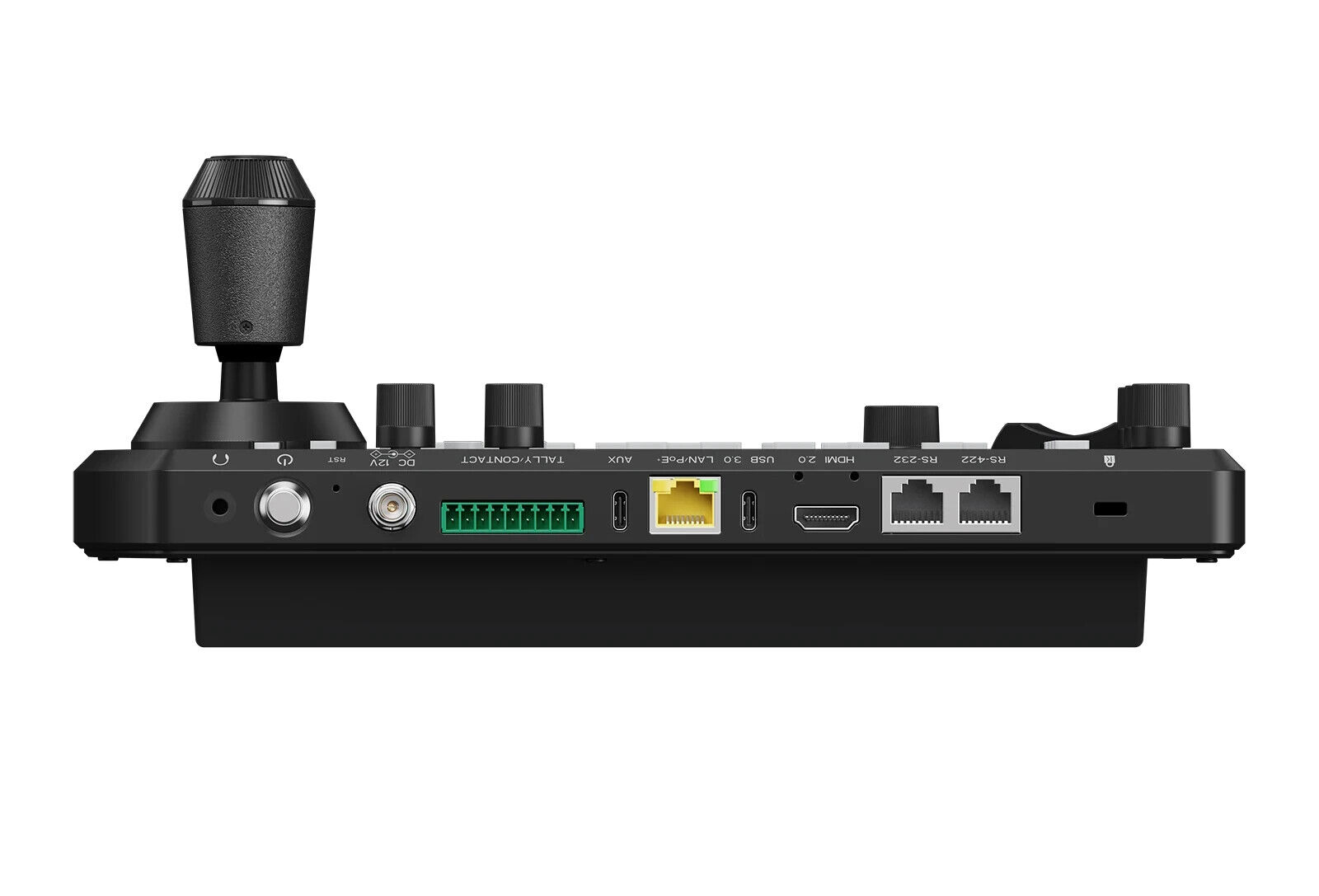

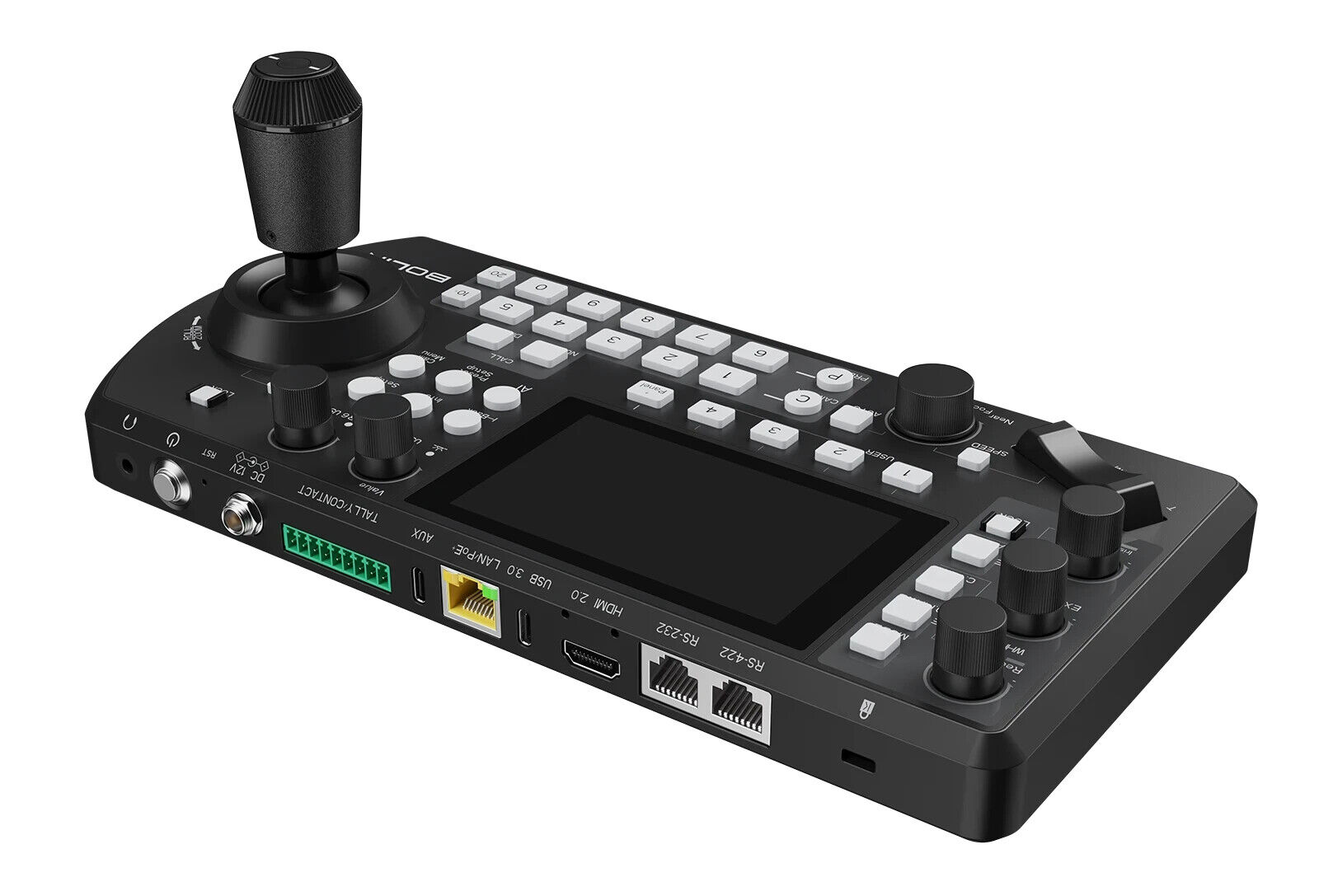

- Control connectors: RS-232 RJ45 x 1, RS-422 RJ45 x 1, Tally in/contact out 9-pin x 1, LAN RJ45 x 1 (10/100/1000BASE-T), USB 2.0 for auxiliary device x 1
- Video outputs: HDMI 2.0 with secure mount x 1, USB 3.2 (USB-C) UVC output x 1
- Audio output: 3.5 mm unbalanced
- Display: 4" 800 x 480 colour touch screen, 5-point multi-touch, 60 Hz, 350 nits, pre-installed screen protector
- Joystick: high-precision 4-axis (pan, tilt, roll, zoom)
- Maximum cameras: 255; IP connections: 255
- Maximum serial connections: RS-232 7 (VISCA), RS-422 7 (VISCA), RS-485 255 (Pelco P/D)
- IP control protocols: VISCA over IP, VISCA serial, NDI, Pelco P/D, ONVIF, Bolin BCX, Panasonic AW (PTZ only), Canon XC (PTZ only); OSC in a future firmware update
- Serial control protocols: VISCA, Pelco P/D; 2400 to 38400 baud
- PTZ control sensitivity: 255 steps
- Exposure modes: full auto, iris priority, shutter priority, manual iris gain, manual shutter gain, black level, ND filter
- Decoding: 4 IP inputs; up to 3840 x 2160p60 x 1 or 1920 x 1080p60 x 4; 4-channel multiview; AAC audio
- HDMI output formats: 3840 x 2160p and 1920 x 1080p 23.98-60, 1920 x 1080i 50/59.94/60; YUV 4:2:2 10-bit, RGB 8-bit; 2-channel PCM audio 48 kHz
- USB output: UVC 1.5 (MJPEG, YUV, H.264), up to 3840 x 2160p 30/25 and 1920 x 1080p 60/50; UAC 1.0 audio
- Configuration: web UI and touch screen UI; firmware upgrade via web UI
- Power: 12 V DC (tolerance 6 to 36 V) or PoE+ (IEEE 802.3at)
- Consumption: 12 W min, 14 W max
- Operating temperature: -10 to 40 °C
- Dimensions: 278 x 132 x 99.5 mm (without raiser)
- Weight: 1.4 kg
- Certifications: CE, FCC, IC, UKCA, RoHS, WEEE
In the box
- KBD Plus controller
- 12 V DC 2 A power supply adapter with US, EU and UK power cords
- RS-422/232 RJ45 adapter (VCC-CC45RS)
- RJ45 control cable for keyboard controller
- RJ45 coupler
- HDMI mount and screw set
- Tally light contact terminal
- Magnetic base raiser
- Screen cleaning cloth
| Product Condition | New |
|---|---|
| Manufacturer | Bolin |
| manufacturer code | KBDPLUS |
| Ean | 6973775122632 |
| Taric Code | 85371010 |
