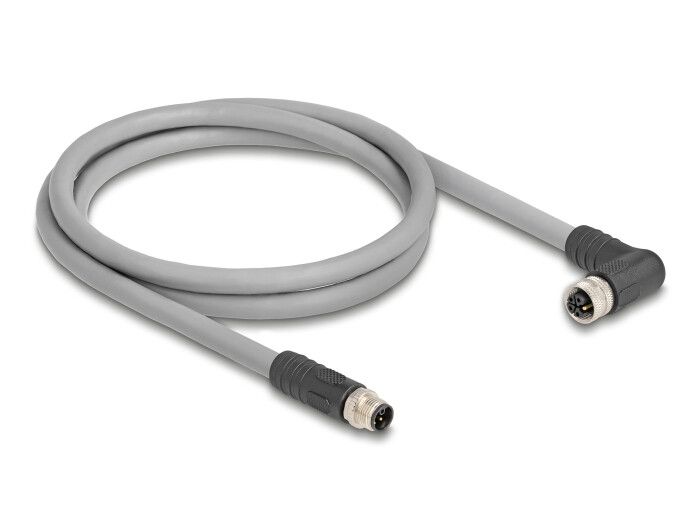

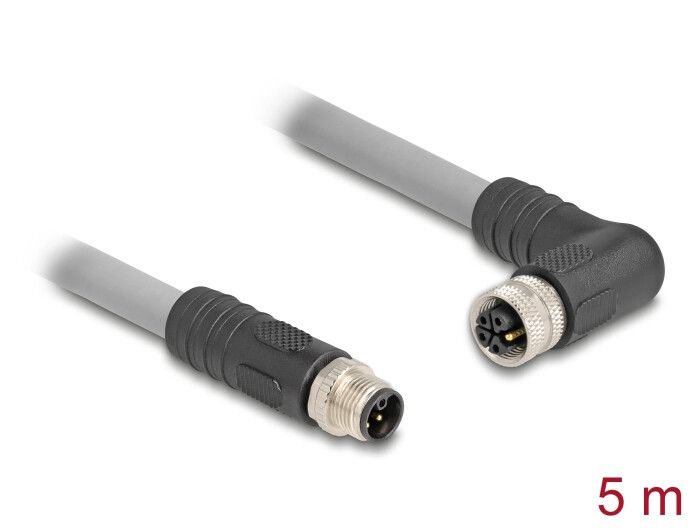

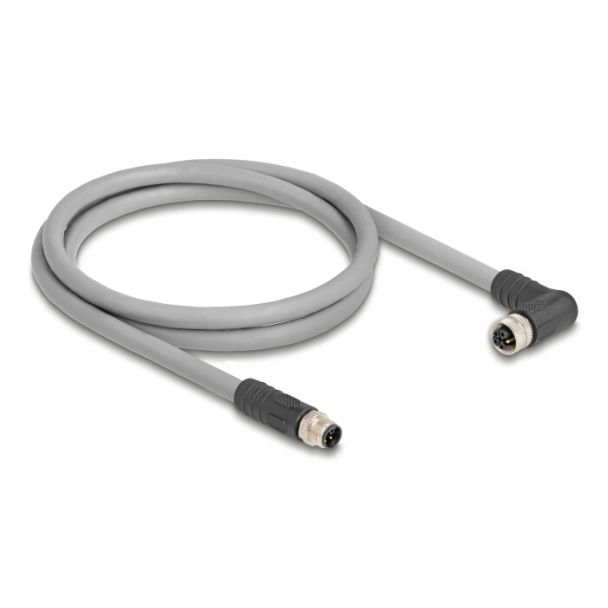

DeLOCK 80545 sensor/actuator cable 5 m RST M12 Grey
GTIN: 4043619805457

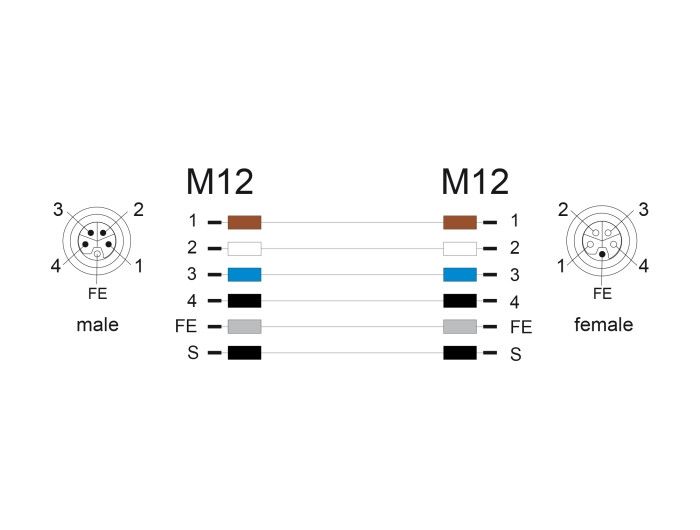

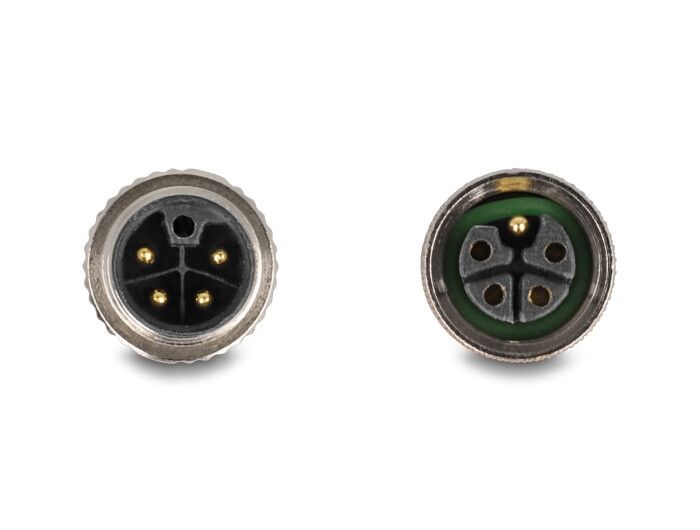

1 x M12 male 5 pin L-coded straight, 1 x M12 female 5 pin L-coded right angled, 14 AWG (2.5 mm²), 12 A / 63 V, Ø 10.4 mm, 5m
This M12 sensor cable by Delock can be used for direct current applications. The L-coded version has 5 power contacts with a rated current of 16 A at 63 V with which currents can be reliably transmitted. This can be used to supply power to fieldbus components, power supply units, industrial machines and motors, for e.g., where a high current and low voltage are required.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 80545 |
| Ean | 4043619805457 |
| Taric Code | 84718000 |
| Product title | DeLOCK 80545 sensor/actuator cable 5 m RST M12 Grey |
| Long Product Name | 1 x M12 male 5 pin L-coded straight, 1 x M12 female 5 pin L-coded right angled, 14 AWG (2.5 mm²), 12 A / 63 V, Ø 10.4 mm, 5m |
| Product specifications | FeaturesCable length* 5 m Cable type* RST Connector 1* M12 Connector 2* M12 Connector gender* Male/Female Cable colour* Grey Conductor material Copper AWG wire size 14 Jacket material Polyurethane (PUR) FeaturesRated voltage 63 V Bending radius (max) 10.4 cm Oil-resistant Yes Operational conditionsOperating temperature (T-T) -40 - 80 °C Packaging dataQuantity 1 Package type Polybag |
| Essential qualities |
|
| Cable length | 5 m |
| Connector 1 | M12 |
| Connector 2 | M12 |
| Connector gender | Male/Female |
| Cable colour | Grey |
| Cable type | RST |
