DeLOCK Industrial Barcode Scanner 1D and 2D for 2.4 GHz, Bluetooth or USB
GTIN: 4043619905072
Industrial Barcode Scanner 1D and 2D for 2.4 GHz, Bluetooth or USB
This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 120 scans per second under optimal lighting conditions.

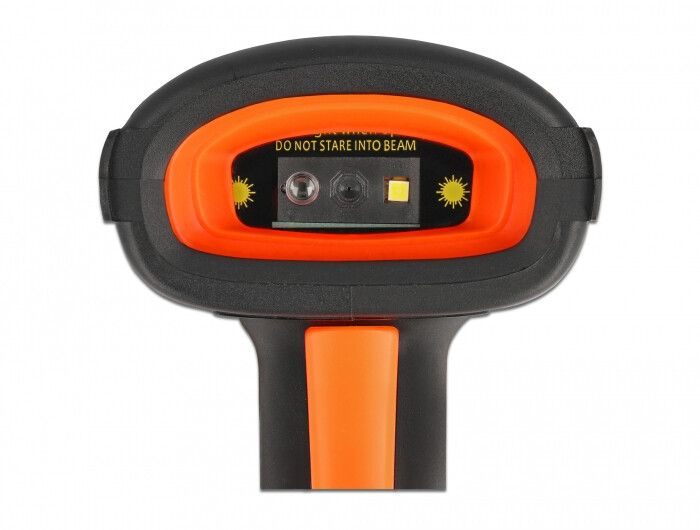

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Sturdy processing
Due to its sturdy design, the scanner can easily absorb falls of up to 1.80 m and is therefore ideally suited for use in industrial environments.
Transmission via Bluetooth, USB or 2.4 GHz

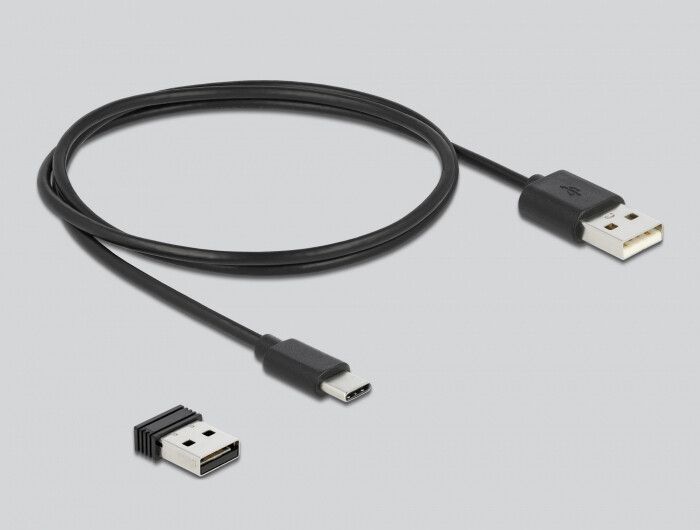

The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 90507 |
| Ean | 4043619905072 |
| Taric Code | 84719000 |
| Product title | DeLOCK Industrial Barcode Scanner 1D and 2D for 2.4 GHz, Bluetooth or USB |
| Long Product Name | Industrial Barcode Scanner 1D and 2D for 2.4 GHz, Bluetooth or USB |
| Product specifications | ScanningType* Handheld bar code reader Scanner type* 1D/2D Sensor type* CMOS Linear (1D) barcodes supported* Codabar, Code 128, Code 39, EAN-13, EAN-8, ISBN, Industrial 2 of 5 2D (matrix & stacked) barcodes supported* Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code Optical sensor resolution (W x H) 1280 x 800 pixels Working distance 50 cm Read rate (max) 120 reads/s Ports & interfacesConnectivity technology* Wired & Wireless Standard interfaces* Bluetooth, USB Wireless range 150 m Bluetooth version 4.1 Operating frequency 2400 MHz Cable length 2 m PerformanceInternal memory 16 MB Built-in processor Yes Product colour* Black, Orange PowerPower source type* Battery PowerBattery technology Lithium Polymer (LiPo) Battery type Built-in battery Number of batteries supported 1 Battery capacity 1800 mAh Input voltage 5 V Power consumption 220 mA Weight & dimensionsWidth 100 mm Depth 185 mm Height 80 mm Weight* 321 g Packaging dataCables included USB Operational conditionsOperating temperature (T-T) -20 - 50 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 5 - 95% Logistics dataHarmonized System (HS) code 84716070 |
| Essential qualities |
|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 39, EAN-13, EAN-8, ISBN, Industrial 2 of 5 |
| 2D (matrix & stacked) barcodes supported | Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | Bluetooth, USB |
| Product colour | Black, Orange |
| Power source type | Battery |
| Weight | 321 g |
