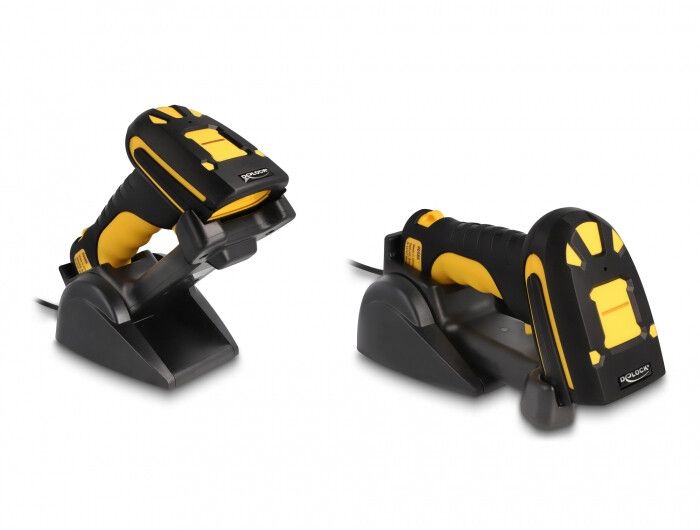

DeLOCK Industrial Barcode Scanner 1D and 2D for 433 MHz or Bluetooth with inductive charging station
GTIN: 4043619905867
Industrial Barcode Scanner 1D and 2D for 433 MHz or Bluetooth with inductive charging station
This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 120 scans per second under optimal lighting conditions.

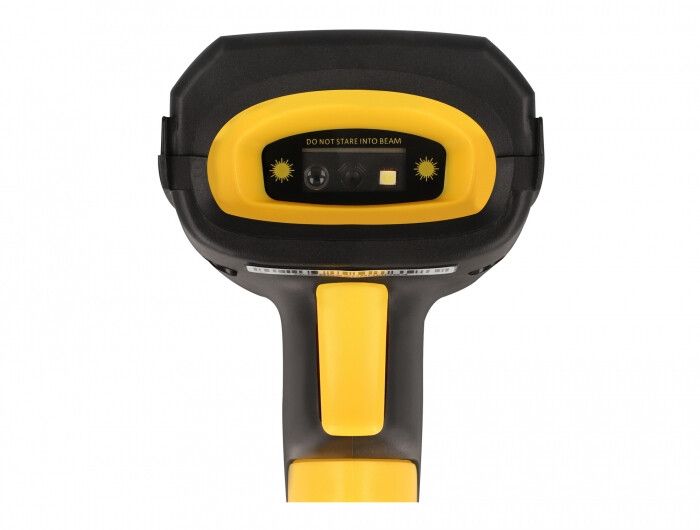

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Sturdy processing
Due to its sturdy design, the scanner can easily absorb falls up to 1.80 m and is therefore ideally suited for use in industrial environments.
Charging station acts as interface

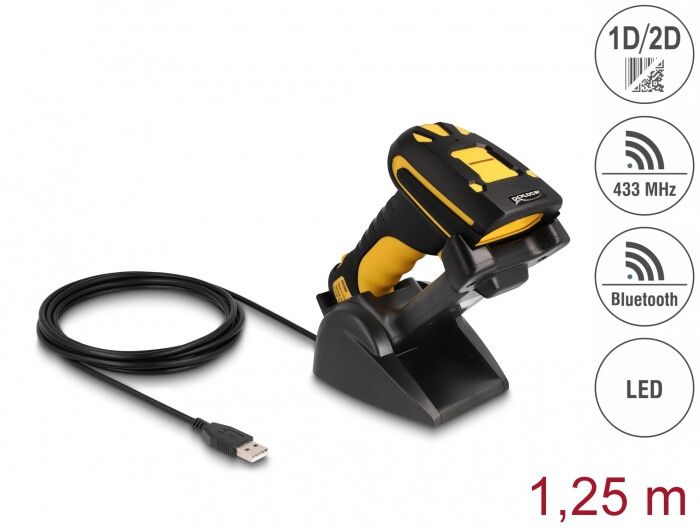

The data transfer of the scanned barcodes is done either via Bluetooth or via the 433 MHz frequency band. In addition to charging the hand scanner, the scanner's inductive charging station also functions as both a Bluetooth and a 433 MHz interface and is connected to the system via a USB cable.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 90586 |
| Ean | 4043619905867 |
| Taric Code | 84718000 |
| Product title | DeLOCK Industrial Barcode Scanner 1D and 2D for 433 MHz or Bluetooth with inductive charging station |
| Long Product Name | Industrial Barcode Scanner 1D and 2D for 433 MHz or Bluetooth with inductive charging station |
| Product specifications | ScanningType* Handheld bar code reader Scanner type* 1D/2D Sensor type* CMOS Linear (1D) barcodes supported* Code 128, EAN-13, EAN-8, ISBN, Interleaved 2 of 5 2D (matrix & stacked) barcodes supported* Data Matrix, Micro QR Code, MicroPDF417, QR Code Optical sensor resolution (W x H) 1280 x 800 pixels Read rate (max) 120 reads/s Ports & interfacesConnectivity technology* Wireless Standard interfaces* Bluetooth, RF Wireless Wireless range 10 m Bluetooth version 4.1 Operating frequency 433 MHz Cable length 1.25 m PerformanceInternal memory 16 MB Built-in processor Yes Product colour* Black, Yellow Country of origin China PowerPower source type* Battery Battery technology Lithium Polymer (LiPo) Battery capacity 1800 mAh Input voltage 5 V Weight & dimensionsWidth 100 mm Depth 185 mm Height 80 mm Weight* 321 g Base weight 295 g Base dimensions (WxDxH) 180 x 100 x 75 mm Packaging dataCharging base Yes Operational conditionsOperating temperature (T-T) -20 - 50 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 5 - 95% |
| Essential qualities |
|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | Code 128, EAN-13, EAN-8, ISBN, Interleaved 2 of 5 |
| 2D (matrix & stacked) barcodes supported | Data Matrix, Micro QR Code, MicroPDF417, QR Code |
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth, RF Wireless |
| Product colour | Black, Yellow |
| Power source type | Battery |
| Weight | 321 g |
