DeLOCK PCI Express x4 Card to SuperSpeed USB 10 Gbps with 2 x USB Type-A and 2 x USB Type-C - Dual Channel
GTIN: 4043619890415
PCI Express x4 Card to SuperSpeed USB 10 Gbps with 2 x USB Type-A and 2 x USB Type-C - Dual Channel

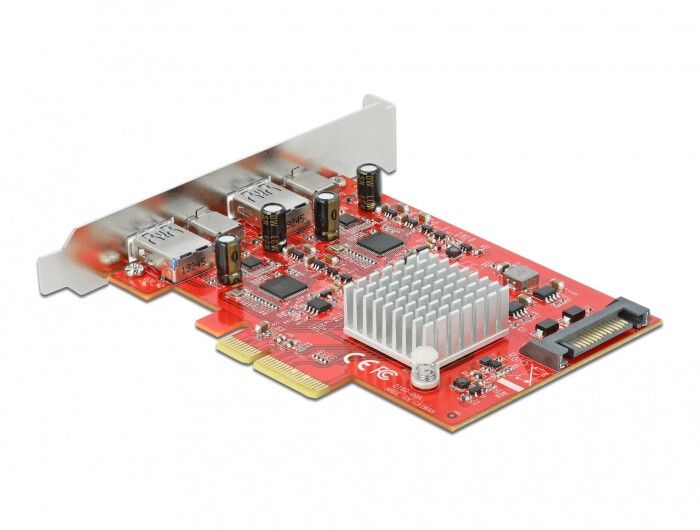

The PCI Express card by Delock expands the PC by four external USB 3.2 ports, two USB-C and two USB Type-A ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card. The card allows a data transfer rate of 10 Gbps on all ports when used simultaneously.
Dual channel
The card has two ASM3142 chipsets each for one USB Type-A and one USB Type-C connector. This ensures the high data transfer rate of 10 Gbps on all ports when used at the same time.
Power supply
The PCIe card can be supplied with power via the PCIe connector. If this is not sufficient, the card has a SATA power connector. At the USB Type-C ports the maximum output is 5 V / 3 A and at the Type-A ports 5 V / 2 A, all ports together have an output of maximum 10 A.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 89041 |
| Ean | 4043619890415 |
| Taric Code | 84718000 |
| Internal | Yes |
| Product title | DeLOCK PCI Express x4 Card to SuperSpeed USB 10 Gbps with 2 x USB Type-A and 2 x USB Type-C - Dual Channel |
| Long Product Name | PCI Express x4 Card to SuperSpeed USB 10 Gbps with 2 x USB Type-A and 2 x USB Type-C - Dual Channel |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* USB 3.2 Gen 2 (3.1 Gen 2) Expansion card standard PCIe 3.0 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 DesignInternal* Yes Cooling type Passive FeaturesData transfer rate (max) 10 Gbit/s System requirementsWindows operating systems supported Windows 10, Windows 8.1 Linux operating systems supported Yes Packaging dataQuantity 1 Manual Yes Package type Box Logistics dataHarmonized System (HS) code 84733020 |
| Essential qualities |
|
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Host interface | PCIe |
