Digitus 100Gbs QSFP28 SR4 Optical Transceiver
GTIN: 4016032480891
100Gbs QSFP28 SR4 Optical Transceiver Module
- Four-channel full-duplex transceiver modules
- Transmission data rate up to 26Gbit/s per channel
- Up to 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
- Low power consumption <3.5W
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
- Integrated digital diagnostic function

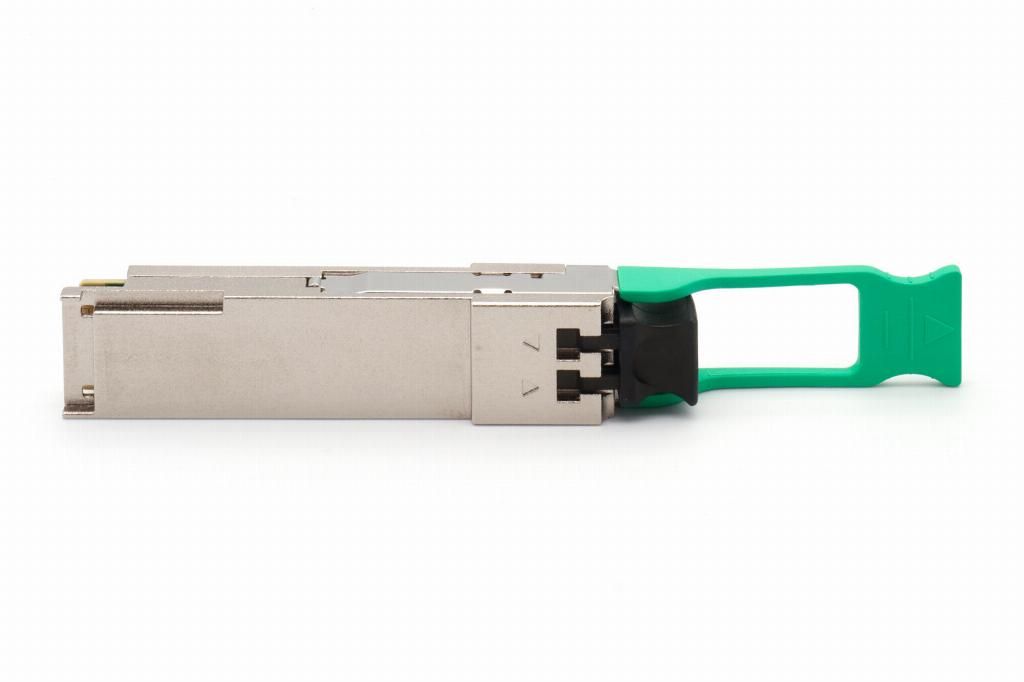

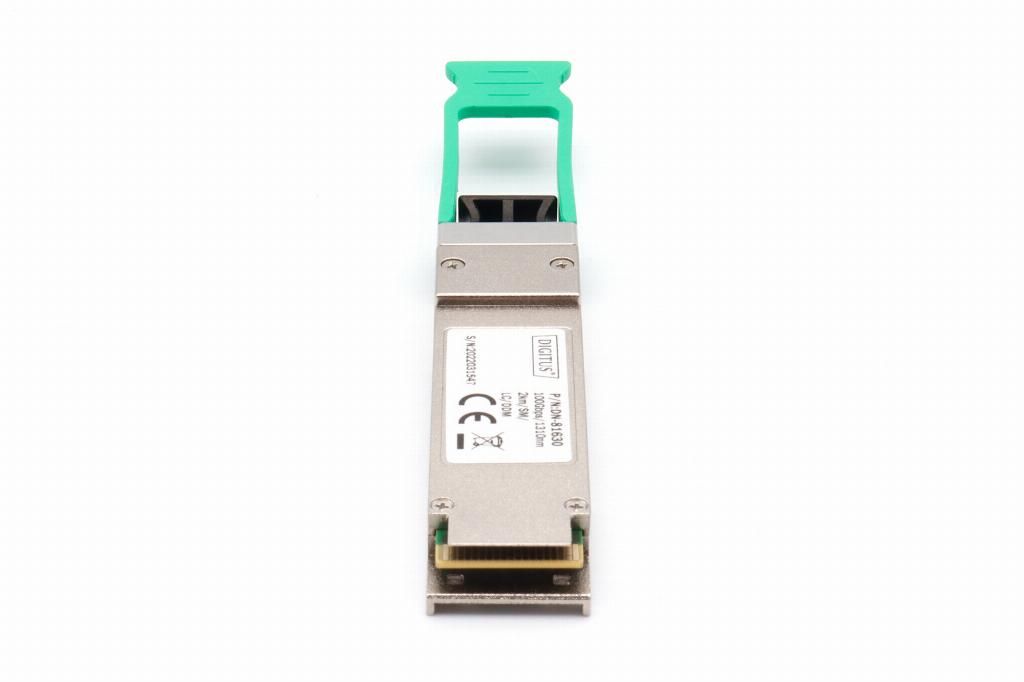

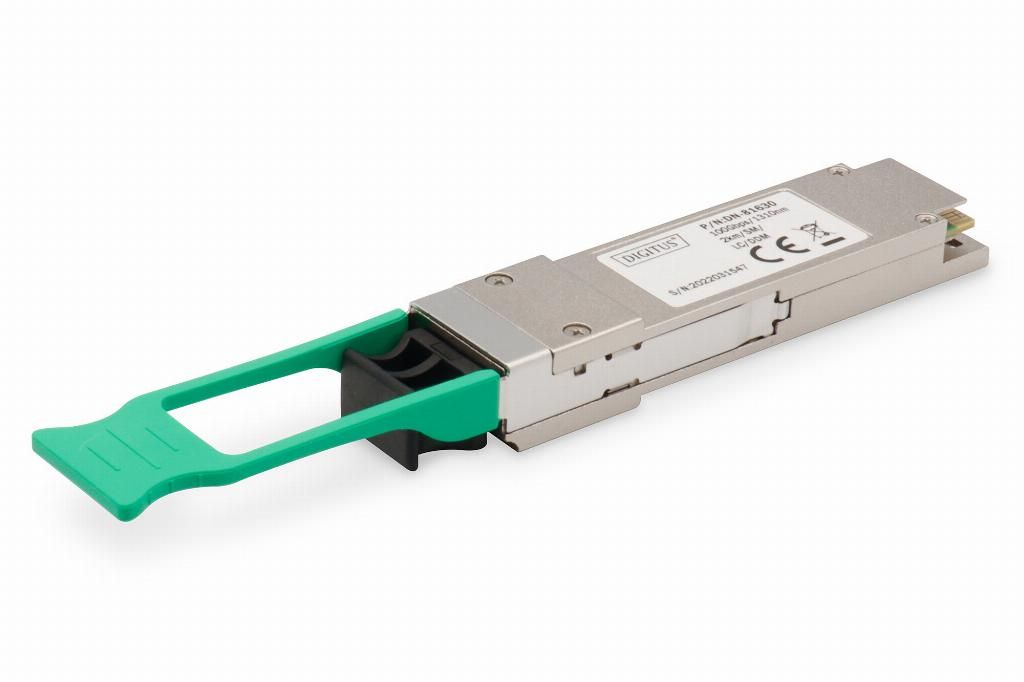

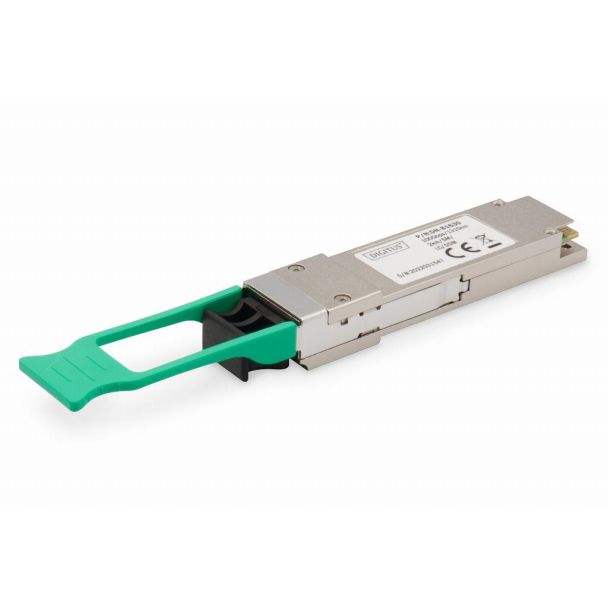

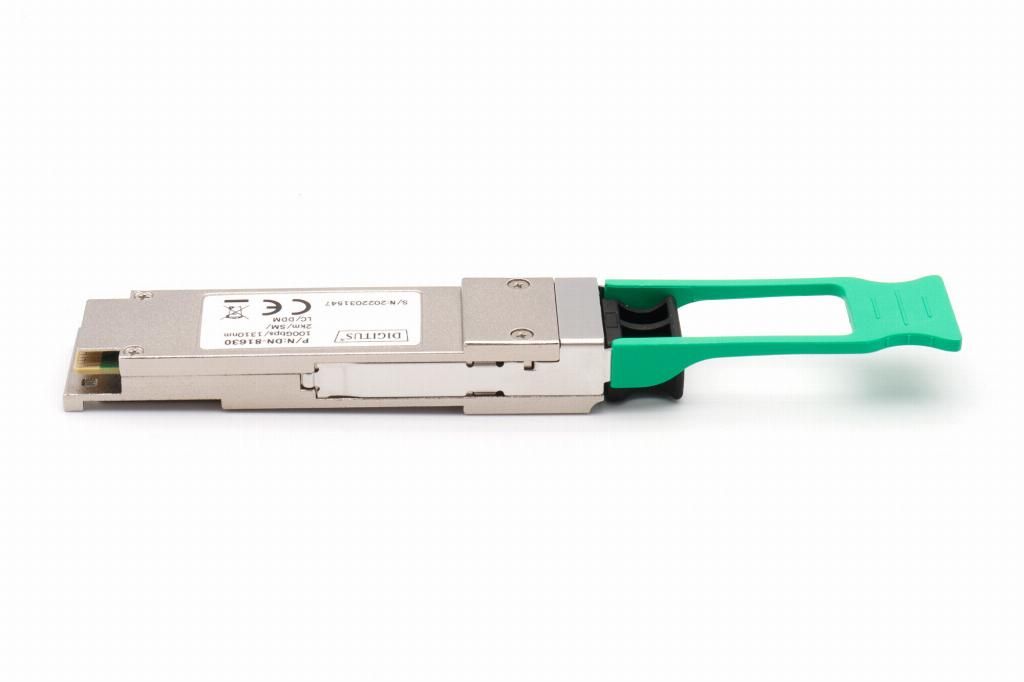

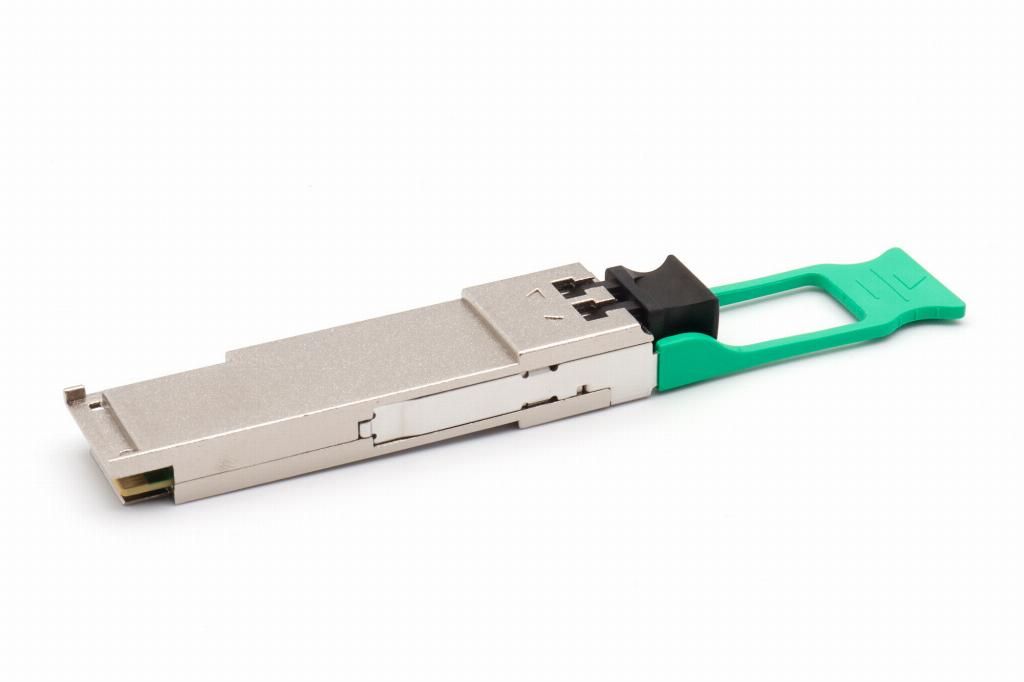

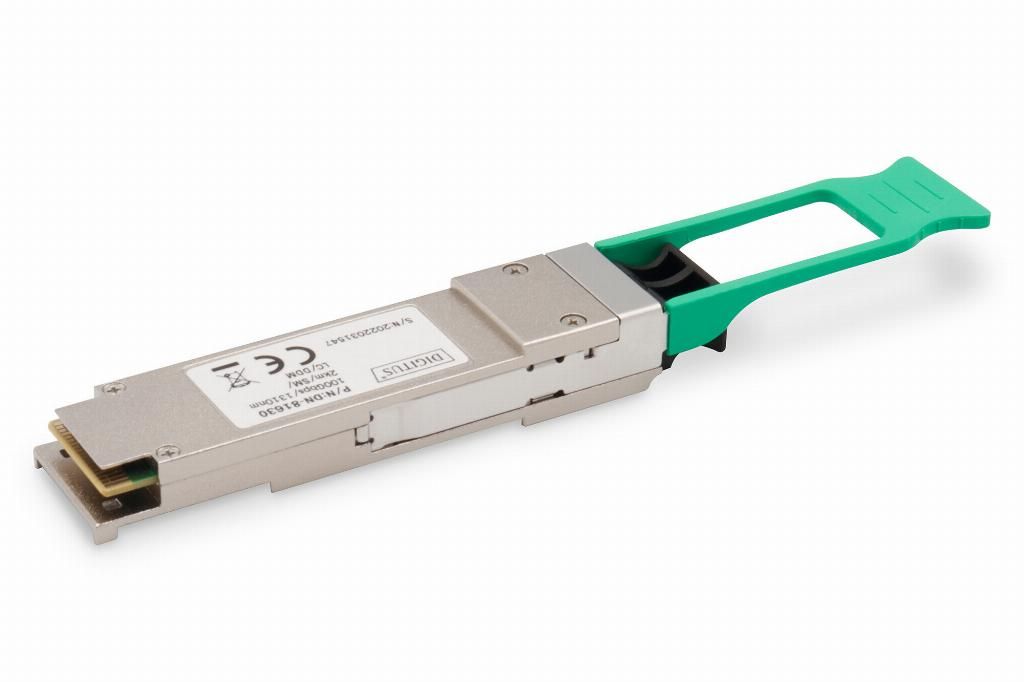

The Digitus DN-81630 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm, 100GBASE SR4 Applications，or 40 Gigabit Ethernet and Infiniband FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 70m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-81630 |
| Ean | 4016032480891 |
| Modified on | 12-04-2022 |
| Product title | Digitus 100Gbs QSFP28 SR4 Optical Transceiver |
| Long Product Name | 100Gbs QSFP28 SR4 Optical Transceiver Module |
| Product specifications | PerformanceSFP transceiver type* Fiber optic Maximum data transfer rate* 100000 Mbit/s Interface type* QSFP28 Multi-mode fiber (MMF) supported Yes Fiber optic connector QSFP28 SFP transceiver standard SR4 Maximum transfer distance 100 m Wavelength 850 nm Fiber ethernet cabling technology 100GBASE Duplex system Full Digital Diagnostics Monitoring (DDM) No FeaturesProduct colour Nickel Plug and Play Yes Hot-Plug support Yes Country of origin China Compatible products Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE PowerInput voltage 3.3 V Power consumption (typical) 3.5 W Operational conditionsOperating temperature (T-T) 0 - 70 °C Weight & dimensionsWidth 120 mm Depth 18.4 mm Height 8.5 mm Weight 40 g Packaging dataNumber of products included 1 pc(s) Package width 100 mm Package depth 900 mm Package height 29 mm Package volume 2610 cm³ Package weight 69.167 g Technical detailsSustainability certificates RoHS Compliance certificates RoHS Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
