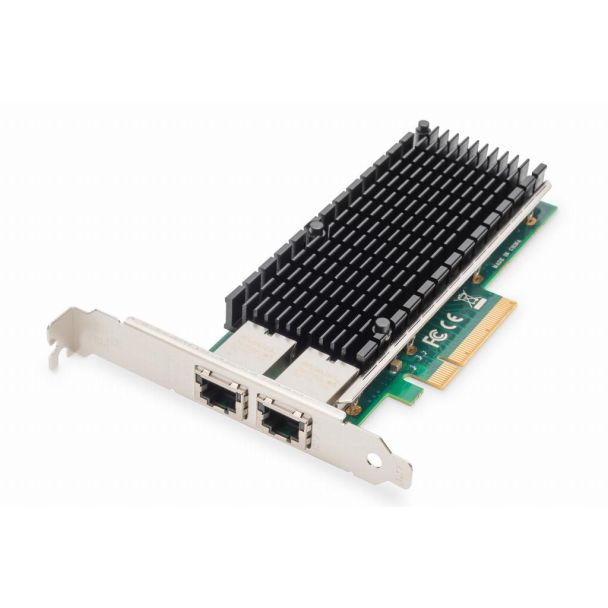

10Gbps Dual Port Ethernet Server adapter, incl. low Profile brackets
- Low cost, low power, 10 Gigabit Ethernet (10GbE) performance for the entire data center
- Standard CAT-6a cabling with RJ45 connectors
- Backward compatibility with existing 1000Base-T networks simplifies the transition to 10GbE
- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
- Unified networking delivering LAN, iSCSI, and FCoE in one low cost CNA
- Industry first dual-port 10GBase-T adapter with single-chip solution with integrated MAC + PHY
- Reliable and proven 10 Gigabit Ethernet technology from Intel corporation
- Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCS
DN-10163 is PCI-e 10Gbps Dual RJ45 Port Ethernet Network Card , based on INTEL X540 Chipset, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms.
10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning."
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-10163 |
| Ean | 4016032484950 |
| Internal | Yes |
| Component for | Server |
| Modified on | 15-01-2023 |
| Product title | Digitus 10Gbps Dual Port Ethernet Server adapter |
| Long Product Name | 10Gbps Dual Port Ethernet Server adapter PCIe X8, Intel X540 BT2 |
| Product specifications | Ports & interfacesConnectivity technology* Wired Host interface* PCI Express Interface* Ethernet Ethernet LAN (RJ-45) ports 2 PCI version 2.1 PCI Card form factor Full-height (low-profile) NetworkMaximum data transfer rate* 10000 Mbit/s Networking standards* IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p Ethernet LAN Yes Jumbo frames support Yes Jumbo frames 9.5 Data link protocols TCP/IP, UDP/IP, IPSec, iSCS LAN controller Intel® X540-BT2 DesignComponent for* Server Product colour Green, Silver Internal* Yes LED indicators Yes Country of origin China System requirementsWindows operating systems supported Windows 10, Windows 8, Windows 8.1 System requirementsLinux operating systems supported Yes Server operating systems supported Windows Server 2008, Windows Server 2012, Windows Server 2016 Weight & dimensionsWidth 155 mm Depth 20 mm Height 120 mm Weight 170 g Packaging dataPackage width 218 mm Package depth 30 mm Package height 155 mm Package weight 280 g Packaging contentMounting brackets included Yes Resource CD Yes Manual Yes Logistics dataUK Trade Tariff code 84718000 Other featuresPackage volume 1013.7 cm³ |
| Essential qualities |
|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p |
