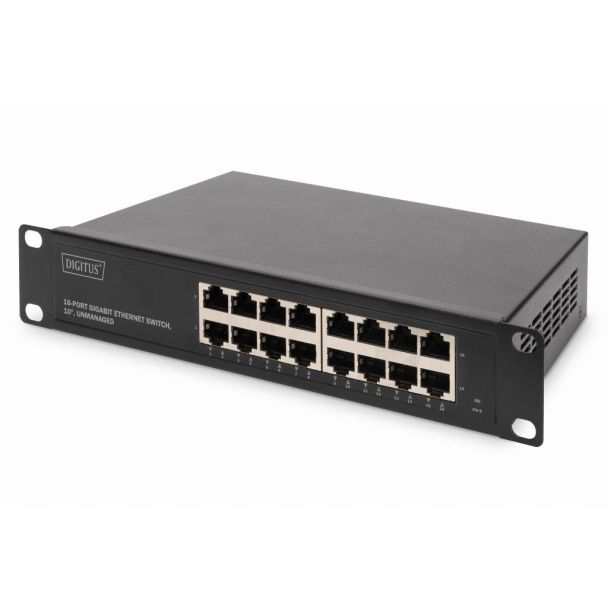

Digitus 16-Port Gigabit Switch, 10 inch, Unmanaged
GTIN: 4016032460237
Gigabit Ethernet Switch 16-port, 10 inch, unmanaged
Gigabit Ethernet switch suitable for mounting in 10" (254 mm) housings.
- Gigabit Ethernet speed: With 10/100/1000Base-TX, the switch offers high data transfer speeds, ideal for fast networks
- High port count: The switch has 16 RJ45 ports, providing high flexibility and capacity for network connections
- Multi-standard compatibility: Support for IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x full-duplex flow control ensures broad compatibility and future-proof connectivity
- High backplane bandwidth: With a backplane bandwidth of 32 Gbps, efficient and fast data transmission between the ports is ensured
- Robust forwarding rate: The switch can forward up to 1,488 Mpps (million packets per second) per port, which is suitable for high network loads
- LED indicators: Power, Link/Active LEDs provide simple and clear monitoring of the network status
- Passive cooling system: The switch uses a fanless, passive cooling system that ensures silent operation and increases reliability
- Energy efficiency: With a power consumption of just 15 W, the switch is energy-efficient and saves operating costs
- Wide temperature range: The switch can be operated in a wide operating temperature range of 0°C to 40°C and a storage temperature range of 0°C to 70°C, which extends its range of applications
- Easy installation: The switch is suitable for mounting in 10" enclosures with a height of 1U, which facilitates integration into existing network cabinets
The DIGITUS® 16-Port Gigabit Ethernet Switch provides 16 x 10/100/1000 Mbps RJ-45 ports with auto-negotiation. All ports support the Auto MDI/MDIX function, which eliminates the need for crossover cables and uplink ports. Low cost, ease of use and high performance are the strengths of the DIGITUS® Gigabit Ethernet 16-Port Switch, making it an excellent choice for your network. The high backplane bandwidth has sufficient reserves so that even large amounts of data can be transferred effortlessly. Furthermore, this switch is designed for installation in 10" (254 mm) housings and fits seamlessly into your network housing with 1U.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-80115 |
| Ean | 4016032460237 |
| Rack mounting | Yes |
| Modified on | 07-03-2020 |
| Product title | Digitus 16 Port Gigabit Switch, 10 Inch, Unmanaged |
| Long Product Name | Gigabit Ethernet Switch 16-port, 10 inch, unmanaged |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 16 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) NetworkNetworking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3u 10G support* No VLAN support No Data transmissionSwitching capacity* 32 Gbit/s MAC address table* 8000 entries DesignRack mounting* Yes Form factor 1U Product colour Black Vandal-proof No Suitable for outdoor use No Country of origin China PowerPower supply included* Yes PowerAC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (typical) 15 W Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) 0 - 70 °C Operating relative humidity (H-H) 20 - 85% Packaging dataPackage width 240 mm Package depth 67 mm Package volume 5145.6 cm³ Package weight 1.6 kg Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Other featuresEthernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Switching capacity | 32 Gbit/s |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
