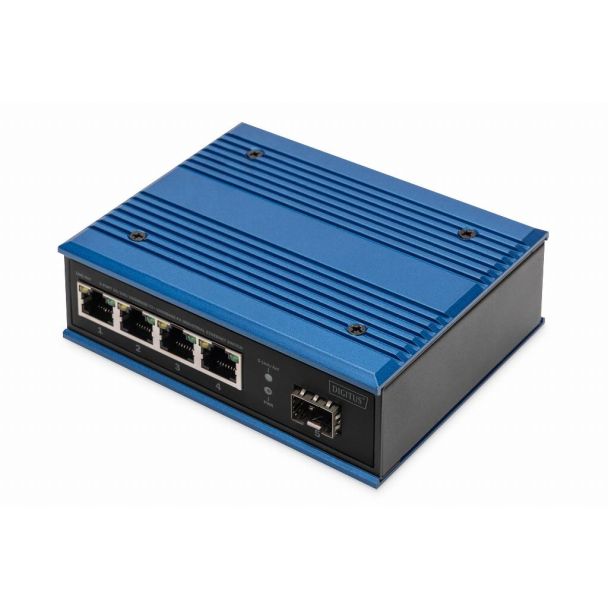

Digitus 4 port Gigabit Ethernet network switch, industrial, unmanaged, 1 SFP uplink
GTIN: 4016032486046
Industrial 4+1 -Port Gigabit Ethernet Switch Unmanaged, 4 RJ45 Ports 10/100/1000 Mbits
The DN-651134 is a 4+1 port Gigabit Ethernet switch suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments.
- The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections.
- Ensures reliable data transmission
- Supports full-duplex or half-duplex mode, with automatic negotiation
- Network connection supports automatic cross-identification
- Uses "Store and Forward" technology The switch supports a variety of protocols
- complies with industrial operating standards
- Operating voltage: DC 12-48V
- Lightning surge protection (power): 5000A(8/20μs)
DN-651134 is an industrial Gigabit Ethernet switch with 4 port 10/100/1000 Mbps RJ45 +1 port 1000 Mbps base-FX. The industrial switch has the operating temperature of -40℃ ~ 80℃, has been ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651134 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651134 |
| Ean | 4016032486046 |
| Stackable | No |
| Rack mounting | No |
| Modified on | 29-01-2023 |
| Product title | Digitus 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch |
| Long Product Name | Industrial 4+1 -Port Gigabit Ethernet Switch Unmanaged, 4 RJ45 Ports 10/100/1000 Mbits |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 4 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 4 SFP module slots quantity 1 Uplink ports quantity 1 Power connector Terminal block (6-pin) NetworkNetworking standards* IEEE 802.3, IEEE 802.3u, IEEE 802.3x 10G support* No Copper ethernet cabling technology 10BASE-T, 10BASE-TX, 100BASE-FX, 100BASE-TX, 1000BASE-TX Full duplex Yes Half duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support No Data transmissionSwitching capacity* 1 Gbit/s Forwarding rate 10.5 Mpps MAC address table* 2000 entries Packet buffer memory 1.2 MB DesignRack mounting* No Stackable* No Product colour Black, Blue Housing material Aluminium LED indicators Yes International Protection (IP) code IP40 DIN rail mounting Yes Vandal-proof No DesignSuitable for outdoor use No Country of origin China PowerPower source* DC DC input voltage 12 - 52 V Power consumption (typical) 3 W Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 128 mm Depth 86 mm Height 34 mm Weight 450 g Packaging dataManual Yes Package width 135 mm Package depth 54 mm Package height 165 mm Package volume 1202.85 cm³ Package weight 558.333 g Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 14 Gbit/s Ethernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | No |
