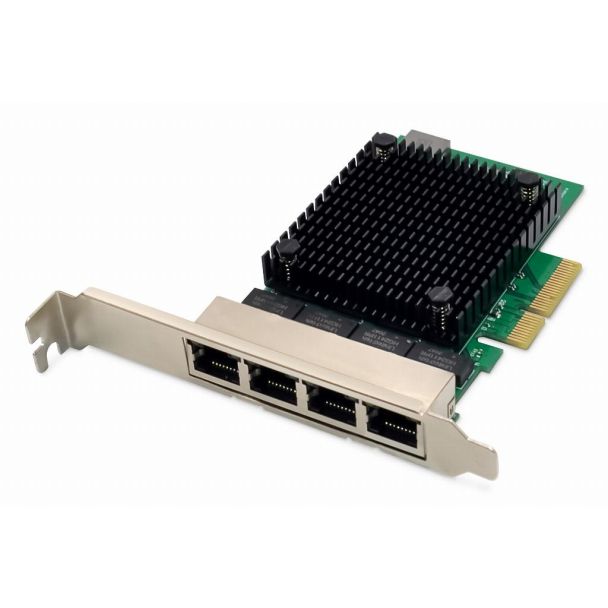

Digitus 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chipset
GTIN: 4016032487968
Digitus 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chipset, Internal, Wired, PCI Express, Ethernet, 10000 Mbit/s, Black, Green
The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver. It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.
- 2-Lane PCI Express bus connecting with up to 10Gbps bus width
- PCI Express interface: x4
- Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
- Supports 2.5G and 1G Lite mode
- Supports pair swap/polarity/skew correction
- Crossover Detection& Auto-Correction
The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-10136 |
| Ean | 4016032487968 |
| Modified on | 22-05-2023 |
| Product title | Digitus 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chipset |
| Long Product Name | 4 Port RJ45 RTL8125B 2,5 GBits Server NIC |
| Product specifications | Ports & interfacesConnectivity technology* Wired Host interface* PCI Express Interface* Ethernet Ethernet LAN (RJ-45) ports 4 PCI version 2.1 NetworkMaximum data transfer rate* 10000 Mbit/s Networking standards* IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Ethernet LAN data rates 100,1000,2500 Mbit/s Wake-on-LAN ready Yes Full duplex Yes Jumbo frames support Yes Jumbo frames 16000 DesignComponent for* PC/Server Product colour Black, Green Internal* Yes Chipset Realtek RTL8125B LED indicators Yes Country of origin China PowerOutput voltage 5 - 12 V System requirementsWindows operating systems supported Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista Linux operating systems supported Yes Other operating systems supported DOS Server operating systems supported Windows Server 2008, Windows Server 2012 Weight & dimensionsWidth 70 mm Depth 20 mm Height 108 mm Weight 100 g Packaging dataPackage width 155 mm Package depth 30 mm Package height 220 mm Package weight 243.5 g Packaging contentMounting brackets included Yes Resource CD Yes Manual Yes Logistics dataUK Trade Tariff code 84718000 Other featuresPackage volume 1023 cm³ |
