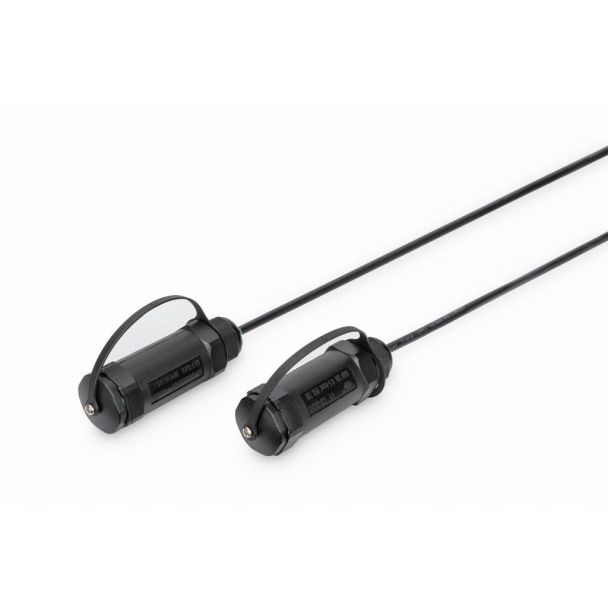

Digitus 4K HDMI - AOC - Armored Connecting Cable with Protective Sleeve
GTIN: 4016032483793
Digitus 4K HDMI - AOC - Armored Connecting Cable with Protective Sleeve, 20 m, HDMI Type A (Standard), HDMI Type A (Standard), 4096 x 2560 pixels, 3D, Black
- Thanks to the steel and aramid fiber construction, the cable is highly resistant and offers optimal protection against external forces.
- When the cable is not in use, the plugs are protected by plastic sleeves with screw-on cover. IP68 certified.
- The active HDMI cable with AOC technology is based on a hybrid construction with copper and fiber optic cable, making bandwidths of up to 14.4 Gbit/s with full HDMI signal spectrum possible
- The hybrid fiber optic cable offers additional benefits such as a very tight bending radius and low weight. These features do not negatively affect the high image quality or the ease of the Plug & Play installation.
- The cable supports standards such as: HDMI 2.0, HDCP 2.2, HDR, ARC, DTS-HD Master Audio, CED, EDID, 21:8 Cinemascope, Dolby TrueHD, 32 channel audio
- Supports resolutions of up to 4K with a display refresh rate of 60Hz
This active HDMI® AOC Hybrid Fiber Optic Cable is ideally suited for transferring uncompressed video and audio data with high bandwidth over longer distances. The hybrid construction, which uses copper and fiber optic cable, prevents electromagnetic interference. This ensures a loss-free transfer along the entire length of the cable with UHD resolution of up to 4K/60Hz and bandwidths of up to 14.4 Gbps. The use of fiber optic cable keeps the diameter of this active cable very low (OD: 5.2 mm).
The steel and aramid fiber construction of the cable ensures optimal protection against external forces, making the cable crush-proof and puncture-resistant. When the cable is not in use, the protective sleeves protect the connections (IP68).
The ideal companion for use at trade fairs, concerts and other events. The simple Plug and Play installation is user-friendly; just plug it in and immediately enjoy optimal image quality. It supports numerous standards such as HDMI 2.0, HDCP 2.2 and HDR. Some of the many audio features supported are ARC, DTS-HD Master Audio and Dolby TrueHD. Cutting edge chip technology makes it possible to transfer the full HDMI® signal spectrum while also supporting uncompressed CED and EDID with very low latency.
Product Condition | New |
---|---|
Manufacturer | Digitus |
manufacturer code | AK-330130-200-S |
Ean | 4016032483793 |
Modified on | 06-11-2022 |
Product title | Digitus 4K HDMI - AOC - Armored Connecting Cable with Protective Sleeve |
Long Product Name | HDMI AOC Connection Cable, Type A, armored M/M, 20.0m, for Plugs IP68, UHD, 4K@60 Hz, gold,bl |
Product specifications | FeaturesCable length* 20 m Connector 1* HDMI Type A (Standard) Connector 2* HDMI Type A (Standard) Connector 1 gender* Male Connector 2 gender* Male Connector 1 form factor Straight Connector 2 form factor Straight Product colour* Black HDMI version 2.0 3D Yes Supported graphics resolutions 4096 x 2560 Dolby technologies Dolby TrueHD, DTS-HD Master Audio Audio Return Channel (ARC) Yes HDCP Yes HDCP version 1.4/2.2 Data transfer rate 14.4 Gbit/s High Dynamic Range (HDR) supported Yes High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10) Supported digital audio channels (uncompressed) 32 Maximum resolution 4096 x 2560 pixels Maximum refresh rate 120 Hz Connector contacts plating* Gold FeaturesCable type Round cable Tensile strength 1000 N Cable jacket material Low smoke zero halogen (LSZH) Ferrite bead No Bending radius (min) 2.54 cm Plug and Play Yes Extended display identification data (EDID) Yes Quantity per pack* 1 pc(s) Operational conditionsOperating temperature (T-T) -45 - 85 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsPackage volume 3024.98 cm³ Package width 217 mm Package depth 205 mm Package height 68 mm Package weight 595 g Other featuresCountry of origin China Logistics dataUK Trade Tariff code 85447000 |
