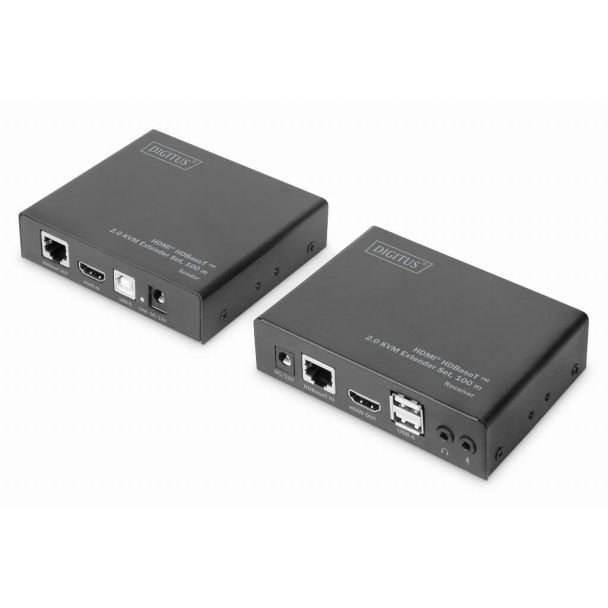

Digitus 4K HDMI HDBaseT™ 2.0 KVM extender set, 100 m
GTIN: 4016032472667
HDBaseT 2.0 HDMI KVM Extender Set 4K/60Hz (4:2:0), 6x USB
Use an RJ45 network cable to transmit high-resolution, uncompressed audio/video content, USB signals and data
- Transmit high-resolution multimedia content without loss of quality and uncompressed over lengths of up to 100 m
- Saves unnecessary cabling and bundles multimedia and many other signals in one network cable
- Forwarding without loss of quality through transmission of uncompressed data
- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100 m
- Supports transmission of video, audio + USB signals via network cable
- Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)
- Supports USB 2.0 features (HighSpeed) for up to 6 USB devices
- Supports CEC (Consumer electronics control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)
With the DIGITUS® HDMI HDBaseT™ 2.0 KVM Extender Set, you can control your source device from up to 100 meters away over a single CAT6A/7/8 cable connection, with uncompressed 4K HDMI™ video content and access to up to 6 connected USB devices. This extender has been specifically designed for a smooth and straightforward setup. The HDBaseT™ 2.0 technology enables installation via a single cable, avoiding the hassle of running multiple cables. The typical use case would be a cross-room solution, for example, where the source device and display can be up to 100 meters apart. You can use up to 6 USB devices connected to the transmitter module from the receiver and of course enjoy video and audio content. A very simple KVM functionality in terms of installation and use. Instead of multiple cables, lay just one RJ45 network cable or use the existing network connections (point-to-point) with the HDMI HDBaseT™ 2.0 Extender from DIGITUS®.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55505 |
| Ean | 4016032472667 |
| Modified on | 28-01-2021 |
| Product title | Digitus 4K HDMI® HDBaseT™ 2.0 KVM Extender Set, 100 m |
| Long Product Name | HDBaseT 2.0 HDMI KVM Extender Set 4K/60Hz (4:2:0), 6x USB |
| Product specifications | FeaturesType* Transmitter & receiver Connectivity technology* Wired Maximum transfer distance 100 m Cable types supported Cat5e Maximum digital resolution 4096 x 2160 pixels Colour depth 36 bit Product colour Black Material Metal Country of origin China USB 2.0 ports quantity 6 TransmitterTransmitter video port type HDMI Transmitter local keyboard/mouse port type USB RJ-45 ports quantity (transmitter) 1 ReceiverReceiver local video port type HDMI Receiver local keyboard/mouse port type USB RJ-45 ports quantity (receiver) 1 PowerAC input voltage 100 - 240 V Input current 0.65 A AC adapter output voltage 12 V AC adapter output current 2 A Power consumption (transmitter) (max) 3 W Power consumption (receiver) (max) 7 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsTransmitter width 13 cm Transmitter depth 1 cm Transmitter height 2.5 cm Transmitter weight 212 g Receiver width 11 cm Receiver depth 8 cm Receiver height 2.8 cm Receiver weight 240 g Packaging dataPackage width 196 mm Package depth 243 mm Package weight 975 g Technical detailsMaximum resolution 3840 x 2160 pixels Package volume 2857.68 cm³ Packaging contentCables included USB Mounting bracket(s) included Yes Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 84733080 |
| Essential qualities |
|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
