Digitus 8 port Gigabit Ethernet network PoE switch, industrial, unmanaged, 1 SFP uplink switch
GTIN: 4016032486077
Industrial 8+1 -Port Gigabit Ethernet PoE Switch Unmanaged, 8 RJ45 Ports 10/100/1000 Mbits
The DN-651137 is an 8+1 port PoE Gigabit Ethernet switch (IEEE 802.3 af/at) suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments.
- The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections.
- Ensures reliable data transmission
- Supports full-duplex or half-duplex mode, with automatic negotiation
- Network connection supports automatic cross-identification
- Uses "Store and Forward" technology The switch supports a variety of protocols
- complies with industrial operating standards

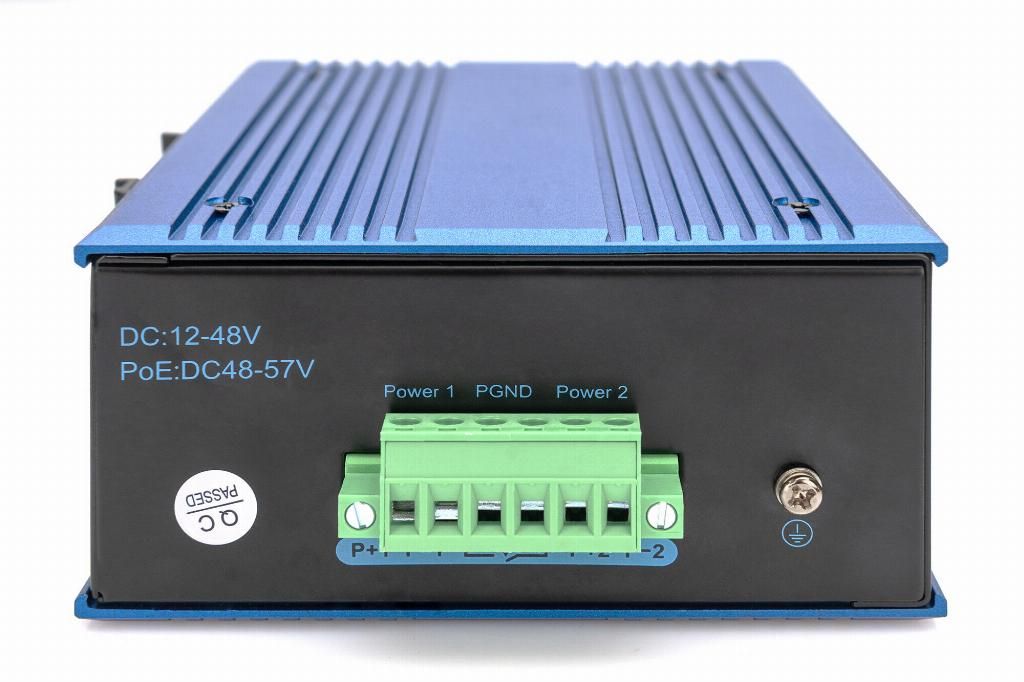

- Operating voltage: DC 48-57V
- Lightning surge protection (power): 5000A(8/20μs)

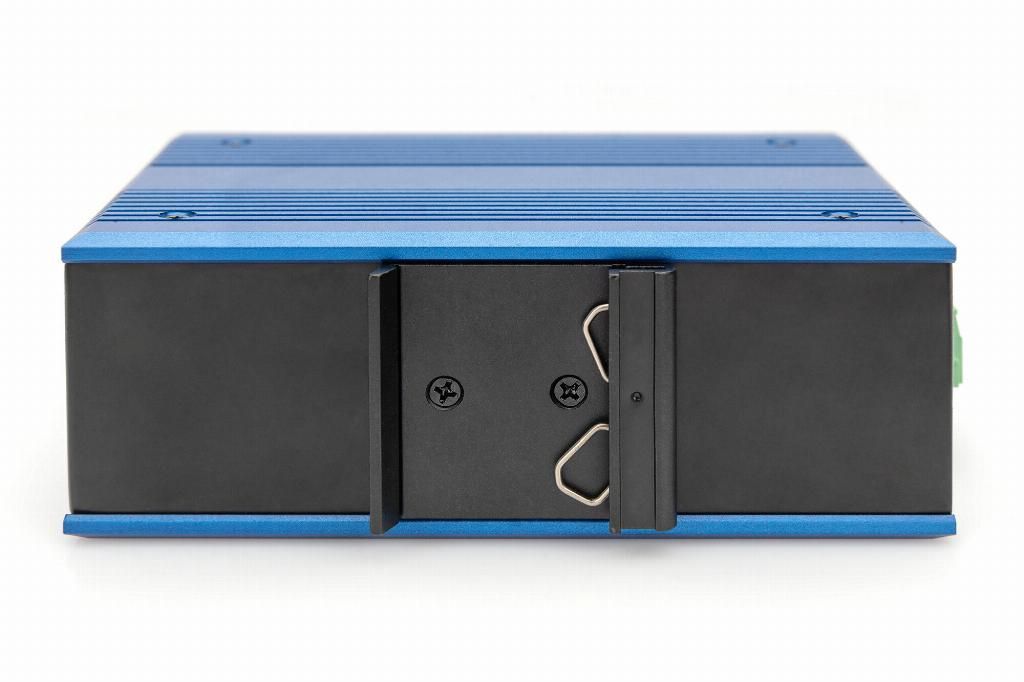

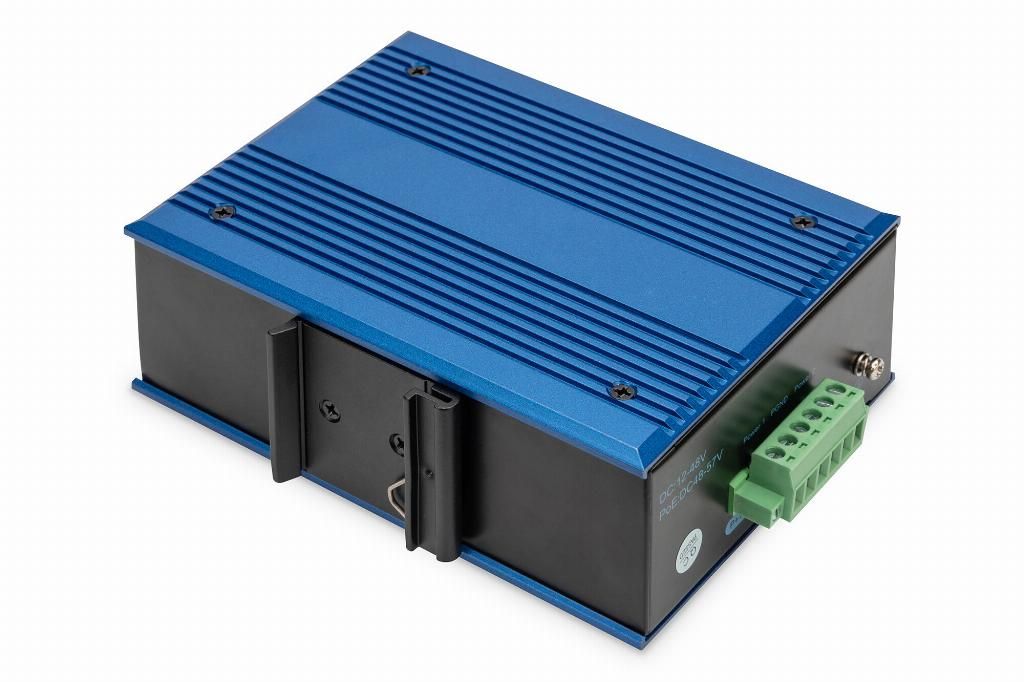

DN-651137 is an industrial Gigabit Ethernet PoE switch with 8 port 10/100/1000 Mbps RJ45 +1000 Mbps SX . The industrial switch has the operating temperature of -40℃ ~ 80℃, has been ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651137 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651137 |
| Ean | 4016032486077 |
| Stackable | No |
| Rack mounting | No |
| Modified on | 29-01-2023 |
| Product title | Digitus 8 Port Gigabit Ethernet Network PoE Switch, Industrial, Unmanaged, 1 SFP Uplink |
| Long Product Name | Industrial 8+1 -Port Gigabit Ethernet PoE Switch Unmanaged, 8 RJ45 Ports 10/100/1000 Mbits |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 8 SFP module slots quantity 1 Uplink ports quantity 1 Power connector Terminal block (6-pin) NetworkNetworking standards* IEEE 802.3af 10G support* No Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TX, 100BASE-FX Full duplex Yes Half duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support No Optical fiberFiber ethernet cabling technology 1000BASE-FX Data transmissionSwitching capacity* 1 Gbit/s Forwarding rate 15 Mpps MAC address table* 8000 entries Packet buffer memory 2 MB DesignRack mounting* No Stackable* No Product colour Black, Blue Housing material Aluminium LED indicators Yes International Protection (IP) code IP40 DIN rail mounting Yes DesignVandal-proof No Suitable for outdoor use No Country of origin China PowerPower source* DC DC input voltage 48 - 57 V Power consumption (typical) 3 W Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Total Power over Ethernet (PoE) budget 30 W Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 143.7 mm Depth 103 mm Height 44.2 mm Weight 560 g Packaging dataManual Yes Package width 158 mm Package depth 66 mm Package height 213 mm Package volume 2221.16 cm³ Package weight 917.857 g Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 20 Gbit/s Ethernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3af |
| 10G support | No |
| Switching capacity | 1 Gbit/s |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
