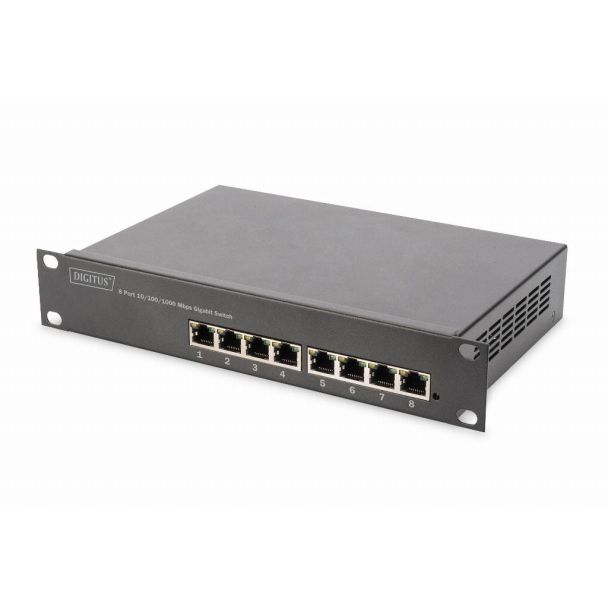

Digitus 8-Port Gigabit PoE Networkswitch, 10 Zoll, L2 managed, 80 W, af/at
GTIN: 4016032464365
L2 managed Gigabit Ethernet PoE Switch 8-port PoE, 10 inch, 80W PoE budget
L2+ managed Gigabit PoE Switch 802.3at - suitable for installation in 10-inch housing
- 8-Port 10/100/1000 Mbps
- 8 x PoE ports with 80 W total output 802.3at (PoE+)
- Network standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
- IEEE802.3x full-duplex flow control & IEEE 802.3ab link aggregation
- Management interfaces: WEB, SNMP, SSH, CLI, Telnet, TACACS+, RMON
- PoE Management, Port Control, Port Isolation, Loop Detection, Port Mirroring
- Backplane bandwidth: 16 Gbps
- VLAN features
- L2+ layer features
The 8-port Gigabit PoE Switch is designed for the networks of small to mid-sized companies. With special features such as port control, port mirroring, VLAN functions and multicast support, the switch is optimally tailored to the application convergence needs of mid-sized networks. Based on ASIC integration technology, non-blocking IP switching solutions are supported with gigabit speed. The switch can be used as a desktop switch or for installation in 10-inch housing. 8 gigabit ports with PoE+ support and a total output of 80 watts are integrated, which you can use to operate devices such as wireless access points, IP cameras or VoIP telephones. The switch can be configured for specific requirements using various interfaces. The installation height is one rack unit.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95331 |
| Ean | 4016032464365 |
| Stackable | Yes |
| Rack mounting | No |
| Modified on | 25-04-2020 |
| Product title | Digitus 8-Port Gigabit PoE Networkswitch, 10 Zoll, L2 managed, 80 W, af/at |
| Long Product Name | L2 managed Gigabit Ethernet PoE Switch 8-port PoE, 10 inch, 80W PoE budget |
| Product specifications | Management featuresSwitch type* Managed Switch layer L2+ Quality of Service (QoS) support Yes ARP inspection Yes Configuring Location Settings (CLI) Yes Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) NetworkNetworking standards* IEEE 802.3at Full duplex Yes IP routing Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support Yes Virtual LAN features Interface-based VLAN, Port-based VLAN, Tagged VLAN Data transmissionForwarding rate 11.9 Mpps MAC address table* 8000 entries Jumbo frames support Yes Jumbo frames 16000 SecurityAccess Control List (ACL) Yes IGMP snooping Yes SSH/SSL support Yes Multicast featuresMulticast support Yes DesignRack mounting* No Stackable* Yes Product colour Black Vandal-proof No DesignSuitable for outdoor use No Country of origin China PowerPower supply included* Yes AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (typical) 96 W Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Power over Ethernet (PoE) type supported PoE+ Total Power over Ethernet (PoE) budget 80 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 250 mm Depth 150 mm Height 44 mm Weight 1.14 kg Packaging dataPackage width 240 mm Package depth 70 mm Package volume 5376 cm³ Package weight 1.6 kg Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Other featuresEthernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3at |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
