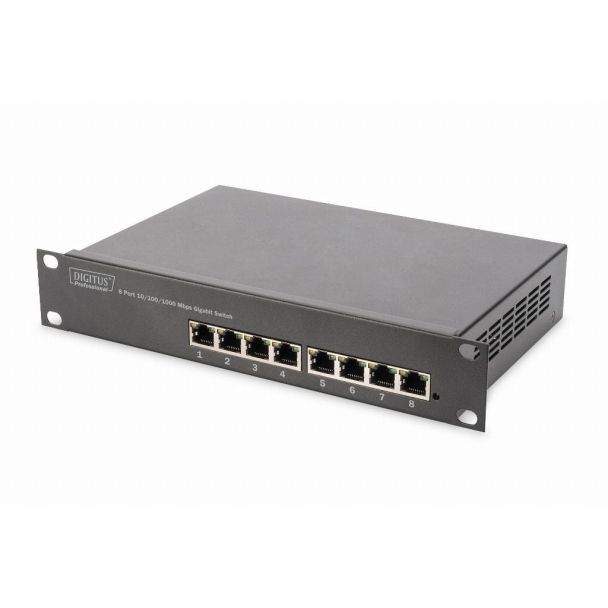

Digitus 10" Gigabit 8-Port Unmanaged Switch
GTIN: 4016032441007
Gigabit Ethernet Switch 8-port, 10 inch, unmanaged
Simplifies the setup of small Gigabit networks in 10" wall-mounted housings - quietly, efficiently and without configuration effort.
- Eight full Gigabit ports for flexible network expansion
- Compact 10" design - ideal for wall-mounted enclosures and small distribution cabinets
- Non-blocking, non-head-of-line forwarding for efficient data transmission
- Only 5 W power consumption - very energy efficient
- Fanless design for silent operation
- Auto MDI/MDI-X - no crossover cables required
- Supports up to 8K MAC addresses - suitable for growing networks
- Store-and-forward technology increases transmission security
- Supports IEEE 802.3, 802.3u, 802.3ab, 802.3x - high compatibility
- Simple plug-and-play installation without management know-how
The DIGITUS® DN-80114 is a compact 8-port Gigabit switch in a 10" form factor that has been specially developed for small to medium-sized networks and installation in 10" wall-mounted housings. With eight 10/100/1000Base-T ports, it offers enough connections to connect PCs, printers, access points, media players or other network devices reliably and with high bandwidth. The switch is completely unmanaged and supports auto-negotiation and Auto MDI/MDI-X, which eliminates cabling errors and reduces installation time. The non-blocking, non-head-of-line architecture combined with a 16 Gbps backplane ensures fast and efficient data transmission without bottlenecks. Store-and-forward technology checks each packet before forwarding, thus increasing transmission security. With a very low power consumption of just 5 watts, fanless design and compact dimensions, the DN-80114 is ideal for use in quiet environments such as offices, meeting rooms, home offices or small technology cabinets. Top USP: Compact, energy-efficient 10" Gigabit switch with eight ports for simple, reliable networking.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-80114 |
| Ean | 4016032441007 |
| Modified on | 13-12-2017 |
| Product title | Digitus 8 Port Gigabit Switch, 10 Inch, Unmanaged |
| Long Product Name | Gigabit Ethernet Switch 8-port, 10 inch, unmanaged |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) NetworkNetworking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x 10G support* No Full duplex Yes Auto MDI/MDI-X Yes VLAN support No Data transmissionSwitching capacity* 16 Gbit/s MAC address table* 8000 entries Store-and-forward Yes DesignRack mounting* Yes Product colour Grey Vandal-proof No Suitable for outdoor use No Country of origin China PowerPower consumption (typical) 5 W Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 250 mm Depth 150 mm Height 42 mm Packaging dataPackage width 320 mm Package depth 240 mm Package volume 5145.6 cm³ Package weight 1.44 kg Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Other featuresEthernet interface type Gigabit Ethernet |
