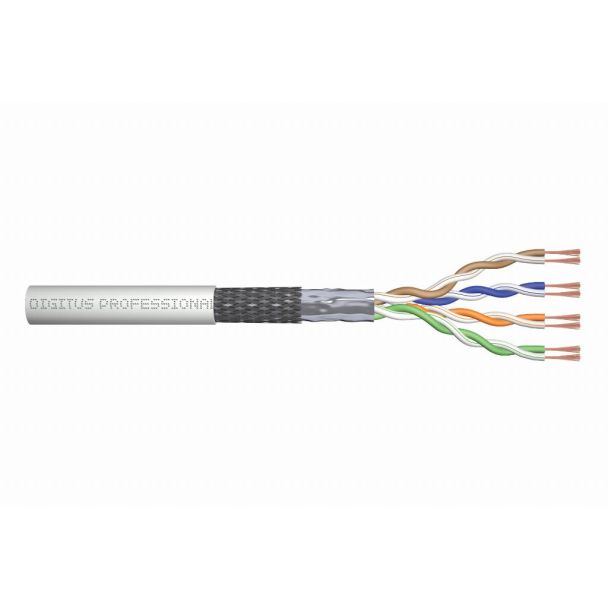

Digitus CAT 5e SF/UTP twisted pair patch cord, raw
GTIN: 4016032425922
CAT 5e SF-UTP patch cable, raw 305 m, paper box, AWG 26/7, PVC, simplex, grey
Future-oriented standards and high-end quality for your network.
- Suitable for direct assembly of RJ45 connectors in order to produce patch cords
- Suitable for installations of class D cable lines, 100 MHz
- According to the norms ANSI/TIA 568-C; ISO/IEC 11801 2nd Ed.; EN 50173; EN 50288-3-1
- Conductor: Copper (Cu)
- PoE ready
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-1531-P-305-1 |
| Ean | 4016032425922 |
| Modified on | 19-11-2017 |
| Product title | Digitus CAT 5e SF/UTP twisted pair patch cord, raw |
| Long Product Name | CAT 5e SF-UTP patch cable, raw 305 m, paper box, AWG 26/7, PVC, simplex, grey |
| Product specifications | FeaturesProduct colour* Grey Cable length* 305 m Cable standard* Cat5e Cable shielding* SF/UTP (S-FTP) Connector 1* No Connector 2* No Connector 1 gender* No Connector 2 gender* No Jacket material Polyvinyl chloride (PVC) Conductor material Copper Twisted pair coupling type 4x2 Cabling technology 10/100/1000Base-T(X) AWG wire size 26/7 Data transfer rate 1000 Mbit/s Frequency 100 MHz Country of origin China Operational conditionsOperating temperature (T-T) -10 - 60 °C Storage temperature (T-T) -10 - 75 °C Weight & dimensionsOuter diameter 5.6 mm Packaging dataPackage width 390 mm Package depth 390 mm Package height 200 mm Package weight 10 kg Package volume 30420 cm³ Logistics dataHarmonized System (HS) code 84733080 UK Trade Tariff code 85444920 Other featuresInput impedance 100 Ω Category 5 |
| Essential qualities |
|
| Product colour | Grey |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Cable length | 305 m |
| Cable standard | Cat5e |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | No |
| Connector 2 | No |
