Digitus Cat.6 F/UTP installation cable, 500 m, simplex, Cca

Name: Digitus Cat.6 F/UTP installation cable, 500 m, simplex, Cca
Brand: Digitus
SKU: DIG-DK-1625-VH-5
Availability: OutOfStock

GTIN: 4016032442035

Out of stock

SKU

DIG-DK-1625-VH-5

Be the first to review this product

€0.00 €0.00

Manufacturers: Digitus

CAT 6 F-UTP installation cable, 250 MHz Cca (EN 50575), AWG 23/1, 500 m drum, sx, purple

Digitus Cat.6 F/UTP installation cable, 500 m, simplex, Cca

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

- 1GBit Ethernet
- 250 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Cca

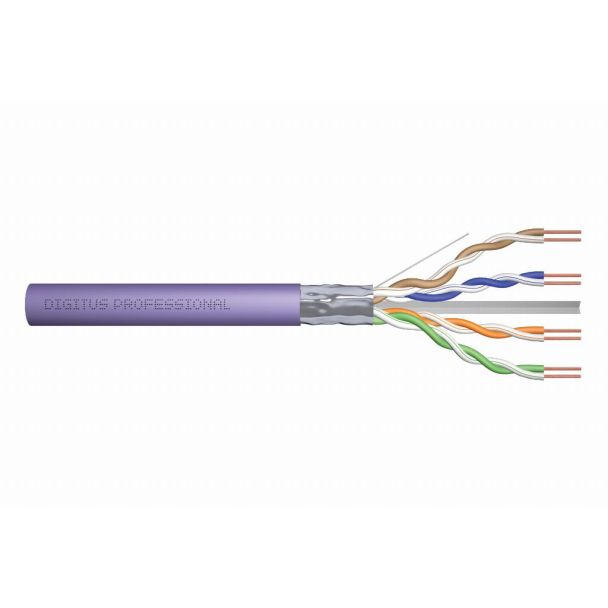

The Digitus® Professional Cat.6 F/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 250 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-1 and CPR Euro class Cca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-5-1.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DK-1625-VH-5
Ean	4016032442035
Modified on	22-06-2020
Product title	Digitus Cat.6 F/UTP installation cable, 500 m, simplex, Cca
Long Product Name	CAT 6 F-UTP installation cable, 250 MHz Cca (EN 50575), AWG 23/1, 500 m drum, sx, purple
Product specifications	Features Product colour* Violet Cable length* 500 m Cable standard* Cat6 Cable shielding* F/UTP (FTP) Connector 1* No Connector 2* No Connector 1 gender* No Connector 2 gender* No Jacket material Low smoke zero halogen (LSZH) Conductor type Solid Conductor material Copper-Clad Aluminium (CCA) AWG wire size 23/1 Frequency 250 MHz Certification CPR class Cca Features Country of origin China Operational conditions Operating temperature (T-T) -20 - 75 °C Storage temperature (T-T) -20 - 60 °C Packaging data Quantity per pack 1 pc(s) Package width 500 mm Package depth 500 mm Package weight 28.5 kg Package volume 55000 cm³ Logistics data Harmonized System (HS) code 84733080 UK Trade Tariff code 85444920
Essential qualities	Physical properties: Conductor: Bare annealed copper, solid AWG 23/1 Insulation: HD-PE (High Density Polyethylene) Total number of insulated conductors: 8, twisted in 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Individual pair shield: None Overall shielding: Aluminum foil, providing 100% coverage, drain wire Outer sheath: Eca to B2ca acc. to EN 50575; LSZH Outer sheath diameter (nominal): 0.5 mm (Eca); 0,6 mm (Dca); 0,8 mm (Cca); 0,08 mm (B2ca) Outer sheath color: Purple Mechanical properties: Tensile loading: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Shipping- and storage temperature range: -20 °C up to +60 °C Operating temperature range: -20 °C up to +75 °C Installation temperature range: 0 °C up to +50 °C Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca) Weight (kg/km): 46 kg (Eca); 47 kg (Dca); 48,5 kg (Cca); 48,5 kg (B2ca) Electrical properties: Impedance: 100±5 Ohm @ 1-250 MHz Capacitance: 45 pF/m nominal @ 800 Hz Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz Insulation resistance: 5 GOhm x km min. DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance) Voltage resistance: 72 Vdc max. Coupling attenuation: 40 dB Signal propagation delay: 535 nS/100 m max. Propagation delay: 20 nS/100 m max. Separating class: ,,c” acc. to EN 50174-2 NVP: 69%
Product colour	Violet
Connector 1 gender	No
Connector 2 gender	No
Cable length	500 m
Cable standard	Cat6
Cable shielding	F/UTP (FTP)
Connector 1	No
Connector 2	No
