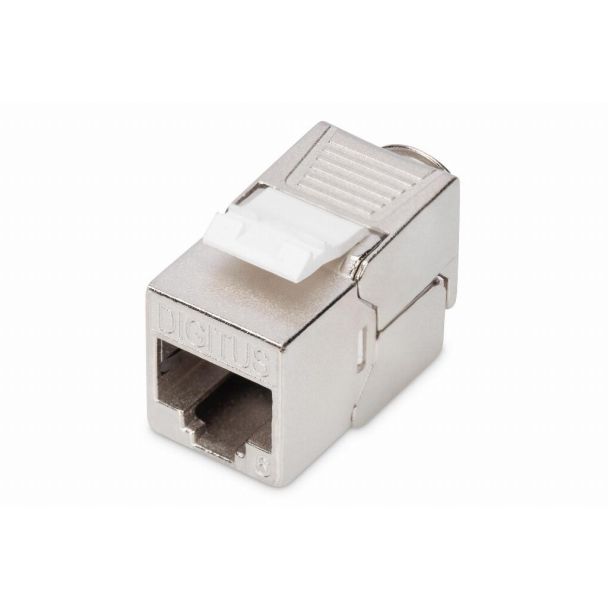

Digitus CAT 6 Keystone Module, shielded

Name: Digitus CAT 6 Keystone Module, shielded
Brand: Digitus
SKU: DIG-DN-93612-1
Price: 5.416801 EUR
Availability: InStock

GTIN: 4016032378518

In stock

SKU

DIG-DN-93612-1

Be the first to review this product

€5.42 €4.44

Manufacturers: Digitus

CAT 6 Keystone Jack, shielded tool free connection

Description

More Information

Reviews

Quick and safe wire terminations without any special tool

The Item "DN-93612-1" of the brand DIGITUS® is a shielded CAT 6 Keystone Module with tool free installation which provides best performance and link quality for your network. The compact design allows the installation of 24 pieces in a row of 483 mm (19") 1U panels. It is conform to Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1 :2002, ISO/IEC 11801:2002.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-93612-1
Ean	4016032378518
Modified on	06-02-2016
Product title	Digitus CAT 6 Keystone Module, shielded
Long Product Name	CAT 6 Keystone Jack, shielded tool free connection
Product specifications	Features Construction type* Flat Product colour* Silver Connector 1* RJ-45 Connector 2* RJ-45 Connector 1 gender Female Connector 2 gender Female Connector contacts plating Gold AWG wire size 26/22 Cable types supported Cat6 Plug/connector retention force 30 N Housing material Acrylonitrile butadiene styrene (ABS) Weight & dimensions Width 14 mm Depth 34 mm Weight & dimensions Height 20 mm Weight 22 g Packaging data Package volume 12 cm³ Package width 15 mm Package depth 40 mm Package weight 30.32 g Packaging content Quantity per pack* 1 pc(s) Logistics data UK Trade Tariff code 85366990 Country of origin China Harmonized System (HS) code 85369010
Essential qualities	Transmission properties: Category 6, Class E Area of application: Up to 250 MHz, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for patch panels and mounting outlets RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Tool-free installation 360° shield coverage Technical properties: Housing material: Zinc die-cast, nickel-plated RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Product colour	Silver
Construction type	Flat
Connector 1	RJ-45
Connector 2	RJ-45
Quantity per pack	1 pc(s)
