Future-oriented standards and high-end quality for your network.
- Suitable for direct assembly of RJ45 connectors in order to produce patch cords
- Suitable for installations of class E cable lines, 250 MHz
- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-6-1
- Conductor: Copper (Cu)
- PoE+ ready
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-1633-P-305 |
| Ean | 4016032425960 |
| Modified on | 10-02-2018 |

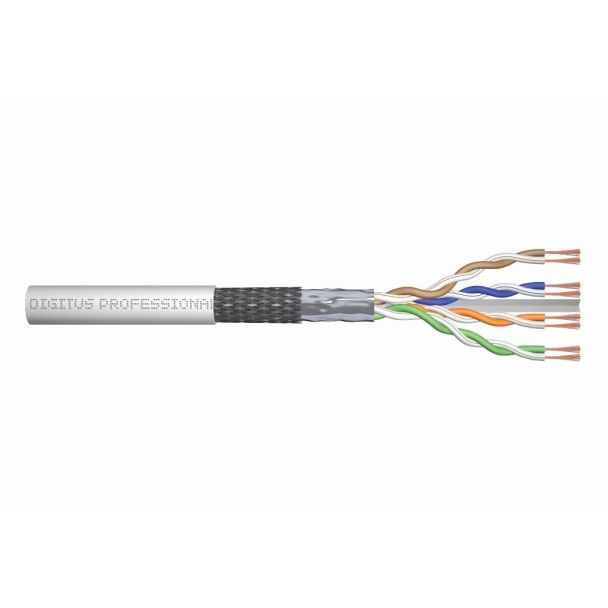

| Product title | Digitus CAT 6 SF/UTP twisted pair patch cord, raw |
| Long Product Name | CAT 6 SF-UTP patch cable, raw 305 m, paper box, AWG 26/7, LSZH, sx, grey |
| Product specifications | FeaturesProduct colour* Grey Cable length* 305 m Cable standard* Cat6 Cable shielding* SF/UTP (S-FTP) Connector 1* No Connector 2* No Connector 1 gender* No Connector 2 gender* No Jacket material Low smoke zero halogen (LSZH) Conductor material Copper Twisted pair coupling type 4x2 Cabling technology 10GBase-T Networking standards IEEE 802.3, IEEE 802.5 AWG wire size 26/7 Data transfer rate 10000 Mbit/s Frequency 250 MHz Oil-resistant Yes Country of origin China Operational conditionsOperating temperature (T-T) -10 - 60 °C Storage temperature (T-T) -10 - 75 °C Weight & dimensionsOuter diameter 6.3 mm Packaging dataQuantity per pack 1 pc(s) Package width 430 mm Package depth 430 mm Package height 200 mm Package weight 12.3 kg Package volume 36980 cm³ Technical detailsDoesn't contain Halogen Logistics dataHarmonized System (HS) code 84733080 UK Trade Tariff code 85444920 Master (outer) case width 450 mm Master (outer) case length 450 mm Master (outer) case gross weight 24.6 kg Master (outer) case height 425 mm Products per master (outer) case 2 pc(s) Master (outer) case volume 86062.5 cm³ Other featuresInput impedance 100 Ω Category 6 |
| Essential qualities |
|
| Product colour | Grey |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Cable length | 305 m |
| Cable standard | Cat6 |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | No |
| Connector 2 | No |
