Digitus DK-1614-A-VH-305 networking cable Blue 305 m Cat6a U/UTP (UTP)
GTIN: 4016032441878
CAT 6A U-UTP installation cable, 500 MHz Dca (EN 50575), AWG 23/1, 305 m drum, Sx, blue
Future-oriented standards and high-end quality for your network.
- 10GBit Ethernet
- 500 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Dca

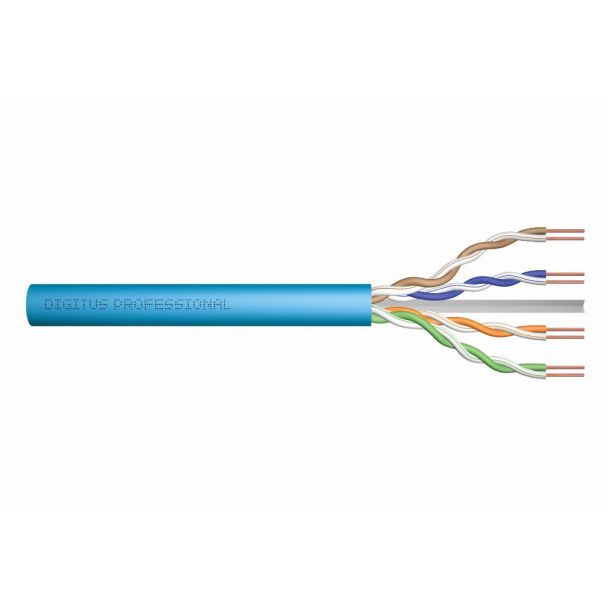

DIGITUS® Category 6A U-UTP installation cables are manufactured and tested to the ISO/IEC 11801, TIA/-586-C.2 and EN 50173 Category 6A specifications. Every cord consists of 8 color coded AWG 23 polyethylene insulated con-ductors. The conductors are twisted together to form 4 pairs with varying lay lengths. Printing details along the outer sheath includes the brand name and item code. The cable is packed in a paper pullout box which makes the installation easy.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-1614-A-VH-305 |
| Ean | 4016032441878 |
| Modified on | 29-09-2019 |
| Product title | Digitus Cat.6 U/UTP installation cable, 305 m, simplex, Dca-s2,d2,a1 |

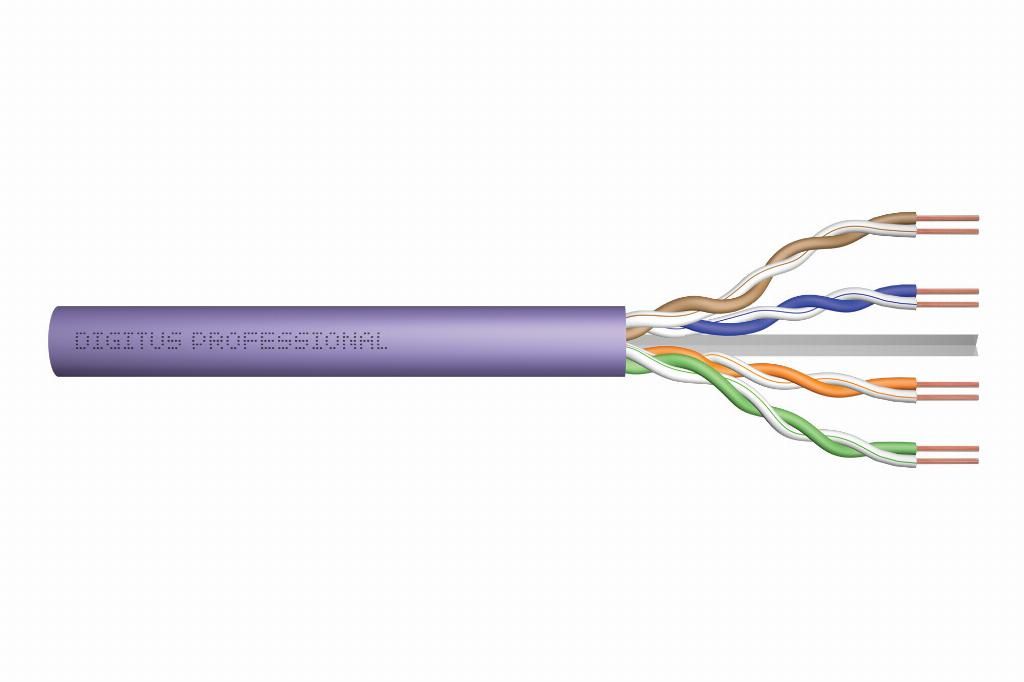

| Long Product Name | CAT 6 U-UTP installation cable, 250 MHz, AWG 23/1 Dca (LSZH-1), 305 m, paper box, simplex, purple |
| Product specifications | FeaturesProduct colour* Violet Cable length* 305 m Cable standard* Cat6 Cable shielding* U/UTP (UTP) Connector 1* No Connector 2* No Connector 1 gender* No Connector 2 gender* No Jacket material Low smoke zero halogen (LSZH) Conductor type Solid Conductor material Copper AWG wire size 23/1 Data transfer rate 1000 Mbit/s Frequency 250 MHz Power over Ethernet (PoE) Yes Certification CPR class Dca Country of origin China Operational conditionsOperating temperature (T-T) -20 - 75 °C Storage temperature (T-T) -20 - 65 °C Weight & dimensionsOuter diameter 6.2 mm Packaging dataQuantity per pack 1 pc(s) Package width 445 mm Package depth 450 mm Package weight 12.3 kg Package volume 50062.5 cm³ Package type Box Technical detailsDoesn't contain Halogen Logistics dataHarmonized System (HS) code 84733080 UK Trade Tariff code 85444920 Master (outer) case width 445 mm Master (outer) case length 450 mm Master (outer) case gross weight 12.3 kg Master (outer) case height 250 mm Master (outer) case volume 50062.5 cm³ |
| Essential qualities |
|
| Product colour | Blue |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Cable length | 305 m |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
