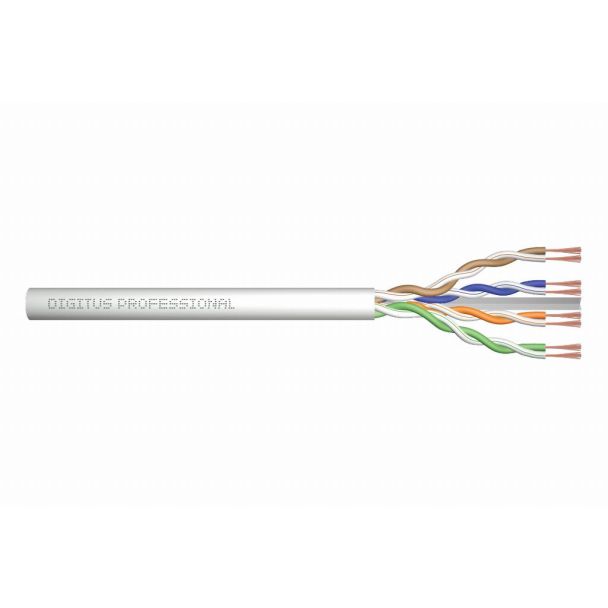

Digitus CAT 6 U/UTP twisted pair patch cord, raw
GTIN: 4016032425946
CAT 6 U-UTP patch cable, raw, AWG 26/7, LSZH simplex, 305 m, paper box, grey
Future-oriented standards and high-end quality for your network.
- Suitable for direct assembly of RJ45 connectors in order to produce patch cords
- Suitable for installations of class E cable lines, 250 MHz
- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-6-1
- Conductor: Copper (Cu)
- PoE+ ready
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-1613-P-305 |
| Ean | 4016032425946 |
| Modified on | 19-11-2017 |
| Product title | Digitus CAT 6 U/UTP twisted pair patch cord, raw |
| Long Product Name | CAT 6 U-UTP patch cable, raw, AWG 26/7, LSZH simplex, 305 m, paper box, grey |
| Product specifications | FeaturesProduct colour* Grey Cable length* 305 m Cable standard* Cat6 Cable shielding* U/UTP (UTP) Connector 1* No Connector 2* No Connector 1 gender* No Connector 2 gender* No Jacket material Low smoke zero halogen (LSZH) Conductor material Copper Twisted pair coupling type 4x2 Cabling technology 10GBase-T Networking standards IEEE 802.3, IEEE 802.5 AWG wire size 26/7 Data transfer rate 10000 Mbit/s Frequency 250 MHz Country of origin China Operational conditionsOperating temperature (T-T) -10 - 60 °C Operational conditionsStorage temperature (T-T) -10 - 75 °C Weight & dimensionsOuter diameter 5 mm Packaging dataQuantity per pack 1 pc(s) Package width 390 mm Package depth 390 mm Package height 200 mm Package weight 9.05 kg Package volume 30420 cm³ Package type Box Logistics dataHarmonized System (HS) code 84733080 UK Trade Tariff code 85444920 Other featuresInput impedance 100 Ω Category 6 |
| Essential qualities |
|
| Product colour | Grey |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Cable length | 305 m |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
