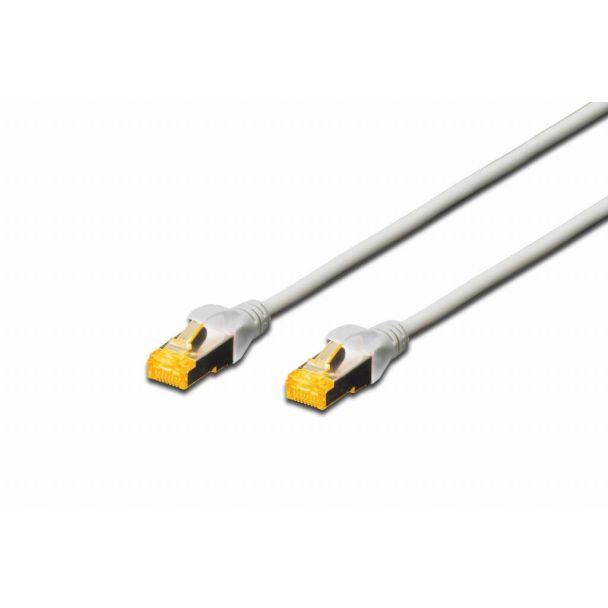

Digitus CAT 6A S/FTP patch cord
GTIN: 4016032327615
CAT 6A S-FTP patch cord, Cu, LSZH AWG 26/7, length 10 m, color grey
Future-oriented standards and high-end quality for your network.
- With LSZH outer casing (Low Smoke Zero Halogen) for the best fire behavior and low smoke emission.
- Transparent yellow colored plug with metal shielding for easy identification of category 6A (500 Mhz)
- Inner conductor: Copper (Cu)
- Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)
The DIGITUS® Category 6A Class EA patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 6A standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 6A cabling. The performance has been tested up to 500 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from snagging and the latching lever from breaking off the plug. The yellow coloring of the plugs makes it easy to identify category 6A.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-1644-A-100 |
| Ean | 4016032327615 |
| Modified on | 11-10-2013 |
| Product title | Digitus CAT 6A S/FTP patch cord |
| Long Product Name | CAT 6A S-FTP patch cord, Cu, LSZH AWG 26/7, length 10 m, color grey |
| Product specifications | FeaturesProduct colour* Grey Cable length* 10 m Cable standard* Cat6a Cable shielding* S/FTP (S-STP) Connector 1* RJ-45 Connector 2* RJ-45 Connector 1 gender* Male Connector 2 gender* Male Jacket material Low smoke zero halogen (LSZH) Conductor type Stranded Conductor material Copper AWG wire size 26/7 Frequency 500 MHz Certification IEC 60332-1, IEC 60332-3, IEC 61034 Country of origin China Operational conditionsOperating temperature (T-T) -20 - 60 °C Packaging dataPackage width 190 mm Package depth 28 mm Package weight 363.333 g Package volume 1436.4 cm³ Package type Polybag Logistics dataHarmonized System (HS) code 84733080 UK Trade Tariff code 85444210 Other featuresQuantity 1 |
| Essential qualities |
|
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable length | 10 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
