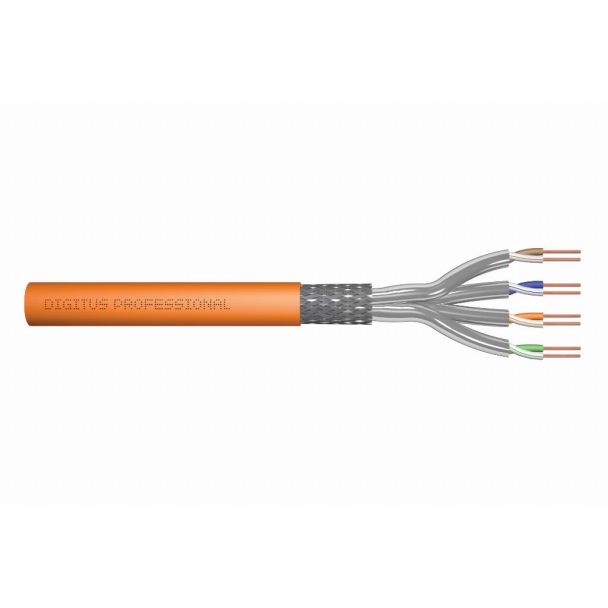

Digitus CAT 7 S/FTP data cable - installation cable, 500 m, simplex, Cca-s1a d1 a1
GTIN: 4016032441731
CAT 7 S-FTP installation cable, 1200 MHz Cca (EN 50575), AWG 23/1, 500 m drum, simplex, or
Future-oriented standards and high-end quality for your network.
- 10GBit Ethernet
- 1200 MHz transmission frequency
- Permanent Link certified
- PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)
- BauPVO class Cca-s1a d1 a1
The Digitus Cat 7 installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 60332-3-24, EN 50575. The cable is ideal for the transmission of analog and digital data and supports PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt). The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-1744-VH-5 |
| Ean | 4016032441731 |
| Modified on | 19-05-2020 |
| Product title | Digitus Cat.7 S/FTP installation cable, 500 m, simplex, Cca-s1a d1 a1 |
| Long Product Name | CAT 7 S-FTP installation cable, 600 MHz Cca (EN 50575), AWG 23/1, 500 m drum, simplex, or |
| Product specifications | FeaturesProduct colour* Orange Cable length* 500 m Cable standard* Cat7 Cable shielding* S/FTP (S-STP) Connector 1* No Connector 2* No Connector 1 gender* No Connector 2 gender* No Jacket material Low smoke zero halogen (LSZH) Conductor type Solid Conductor material Copper AWG wire size 23/1 Frequency 1200 MHz Certification CPR class Cca Country of origin China Operational conditionsOperating temperature (T-T) -20 - 75 °C Storage temperature (T-T) -20 - 60 °C Weight & dimensionsOuter diameter 7.2 mm Packaging dataQuantity per pack 1 pc(s) Package width 540 mm Package depth 540 mm Package weight 27 kg Package volume 99144 cm³ Logistics dataHarmonized System (HS) code 84733080 UK Trade Tariff code 85444920 |
| Essential qualities |
|
| Product colour | Orange |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Cable length | 500 m |
| Cable standard | Cat7 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | No |
| Connector 2 | No |
