Future-oriented standards and high-end quality for your network.
- 10 GBit Ethernet
- 1500 MHz transmission frequency
- Permanent link certified
- PoE Power over Ethernet support
- BauPVO category Dca-s1a d1 a1

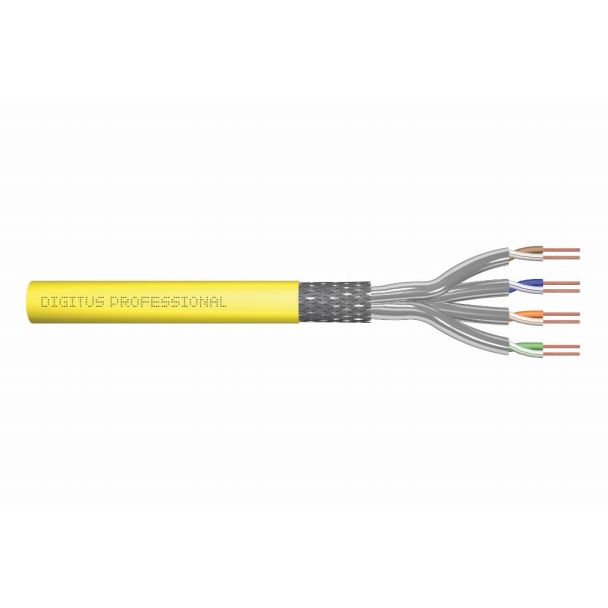

The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-1743-A-VH-1 |
| Ean | 4016032462828 |
| Modified on | 23-11-2019 |
| Product title | Digitus Cat. 7A S/FTP installation cable, 100 m, simplex, Dca-s1a d1 a1 |
| Long Product Name | CAT 7A S-FTP installation cable, 1500 MHz Dca, AWG 22/1, 100 m ring, SX, yellow |
| Product specifications | FeaturesProduct colour* Yellow Cable length* 100 m Cable standard* Cat7a Cable shielding* S/FTP (S-STP) Connector 1* No Connector 2* No Connector 1 gender* No Connector 2 gender* No Jacket material Low smoke zero halogen (LSZH) Conductor type Solid Conductor material Copper AWG wire size 22/1 Data transfer rate 10000 Mbit/s Frequency 1500 MHz Power over Ethernet (PoE) Yes Certification CPR class Dca Country of origin China Operational conditionsOperating temperature (T-T) -20 - 60 °C Operational conditionsStorage temperature (T-T) -20 - 75 °C Packaging dataQuantity per pack 1 pc(s) Package width 280 mm Package depth 280 mm Package weight 5.68 kg Package volume 12544 cm³ Technical detailsDoesn't contain Halogen Logistics dataHarmonized System (HS) code 84733080 UK Trade Tariff code 85444920 Master (outer) case width 280 mm Master (outer) case length 280 mm Master (outer) case gross weight 5.68 kg Master (outer) case height 160 mm Master (outer) case volume 12544 cm³ |
| Essential qualities |
|
| Product colour | Yellow |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Cable length | 100 m |
| Cable standard | Cat7a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | No |
| Connector 2 | No |
