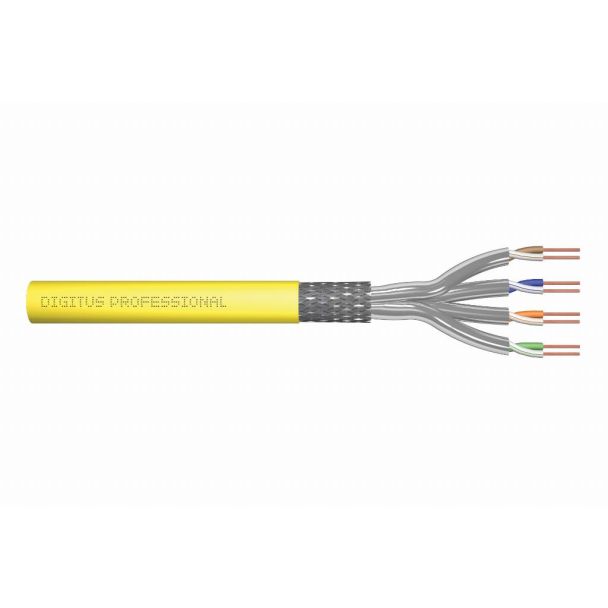

Digitus CAT 7A S/FTP installation cable, 1000 meters, simplex, B2ca, GHMT PVP certified
GTIN: 4016032435938
CAT 7A S-FTP installation cable, 1500 MHz B2ca (EN 50575), AWG 22/1, 1000 m drum, sx, yellow
DIGITUS® Cat.7A S/FTP installation cable 4x2x AWG22/1 up to 1500 MHz. The halogen-free cable sheath conforms to the IEC 60332-3-24, FRNC-C, LSZH-3 and BauPVO Euroclass B2ca standards. Conforms to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.
- 10GBit Ethernet
- 1500 MHz transmission frequency
- GHMT PVP certified
- PoE Power over Ethernet support
- BauPVO class B2ca
The DIGITUS® Cat.7A S/FTP installation cable is characterized by the following cable structure 4x2x AWG22/1 and achieves a transmission frequency of up to 1500 MHz. The halogen-free cable sheath conforms to the IEC 60332-3-24, FRNC-C, LSZH-3 and BauPVO Euroclass B2ca standards. The cable is suitable for structured building cabling in secondary and tertiary areas. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-1745-A-VH-10 |
| Ean | 4016032435938 |
| Modified on | 29-08-2021 |
| Product title | Digitus CAT 7A S/FTP installation cable, 1000 m, Simplex, B2ca |
| Long Product Name | CAT 7A S-FTP installation cable, 1500 MHz B2ca (EN 50575), AWG 22/1, 1000 m drum, sx, ye |
| Product specifications | FeaturesProduct colour* Yellow Cable length* 1000 m Cable standard* Cat7a Cable shielding* S/FTP (S-STP) Connector 1* No Connector 2* No Connector 1 gender* No Connector 2 gender* No Jacket material Low smoke zero halogen (LSZH) Cable shape Round Conductor type Solid AWG wire size 22/1 Frequency 1500 MHz FeaturesCertification CPR class B2ca Country of origin China Packaging dataQuantity per pack 1 pc(s) Package width 550 mm Package depth 550 mm Package weight 64.5 kg Package volume 133100 cm³ Logistics dataHarmonized System (HS) code 84733080 UK Trade Tariff code 85444920 |
| Essential qualities |
|
| Product colour | Yellow |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Cable length | 1000 m |
| Cable standard | Cat7a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | No |
| Connector 2 | No |
