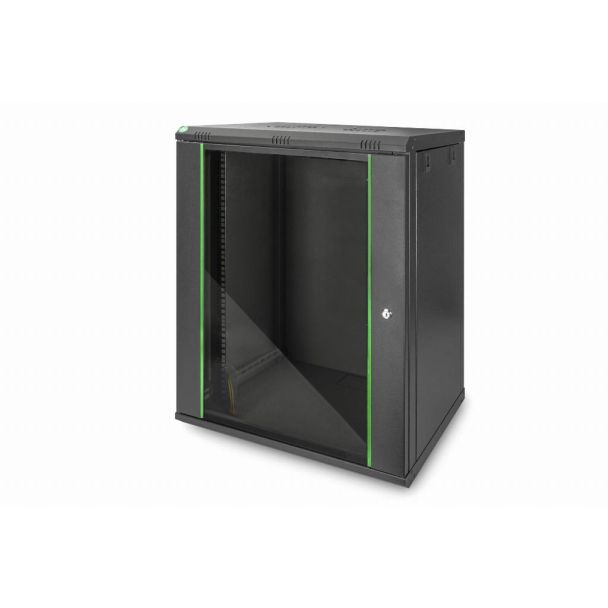

Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x450 mm (WxD)
GTIN: 4016032257844
16U wall mounting cabinet, Dynamic 789x600x450 mm, color black (RAL 9005)
- 450 mm depth provides a space saving installation
- Optimized air ventilation and exhaustion
- Lockable safety-glass door with steel frame
The network cabinets for wall installation from the Dynamic series were developed for easy and especially cost-optimized network expansion. The roof, floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-19 16-U-EC-SW |
| Ean | 4016032257844 |
| Modified on | 03-12-2018 |
| Product title | Digitus DN1916UECN rack cabinet 16U Wall mounted rack Black |
| Long Product Name | 60 kg, 19", 16U wall mounting cabinet, 785 x 600 x 450 mm, Black |
| Product specifications | FeaturesRack capacity* 16U Type* Wall mounted rack Maximum weight capacity* 60 kg Product colour Black Material Glass, Steel Frame type Closed Removable side panels Yes Side panels included Yes Front door style Glass door Key lock Yes Front door key lock Yes Rack rails Yes Adjustable mounting rails Yes Cooling type Active Cable management Yes Door opening angle 210° FeaturesLocking points 1 International Protection (IP) code IP20 Weight & dimensionsSize (imperial) 48.3 cm (19") Width 600 mm Depth 450 mm Height 785 mm Packaging dataNuts included Yes Screws included Yes Package width 640 mm Package depth 480 mm Package height 820 mm Package volume 251904 cm³ Package weight 34 kg |
| Essential qualities |
|
| Rack capacity | 16U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
