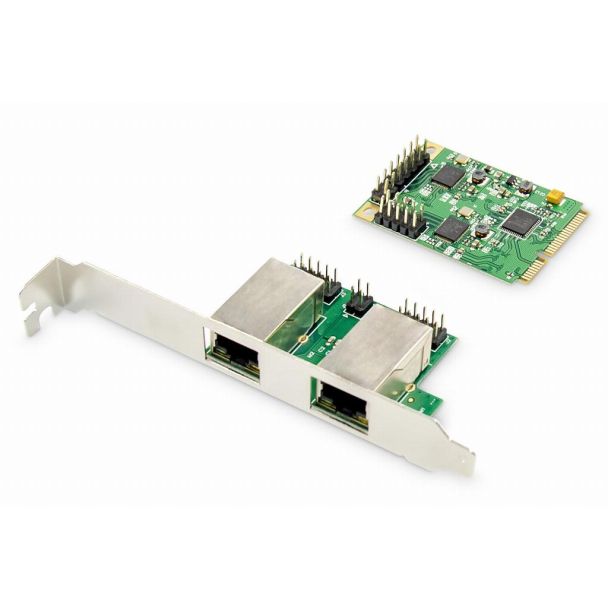

Digitus Dual Gigabit Ethernet Mini PCI Express Network Card

Name: Digitus Dual Gigabit Ethernet Mini PCI Express Network Card
Brand: Digitus
SKU: DIG-DN-10134
Availability: OutOfStock

GTIN: 4016032464389

Out of stock

SKU

DIG-DN-10134

Be the first to review this product

€0.00 €0.00

Manufacturers: Digitus

Digitus Dual Gigabit Ethernet Mini PCI Express Network Card, Internal, Wired, Mini PCI Express, Ethernet, 1000 Mbit/s

Description

More Information

Reviews

Fast gigabit network connection with up to 2 x 1000 Mbps bandwidth for your PCI express slot

- Gigabit data transmission with up to 2 x 1000 Mbps
- Supports network standards: IEEE802.3, 802.3u, and 802.3ab
- Supports IEEE802.3x full-duplex flow control
- Supports IEEE802.1q VLAN tagging
- Suitable for full and half-sized slot brackets

This mini PCIe dual gigabit network card from DIGITUS® offers you the highest performance for network applications with your 10/100/1000 BASE-T ethernet controller. Equipped with two LAN interfaces (RJ45), it fulfills the IEEE802.3u specification for fast ethernet and the IEEE802.3ab specification for gigabit ethernet. IEEE802.3x full-duplex flow control is also supported, as well as VLAN tagging. The card can be used for slots at full or half installation height. Corresponding slot brackets are included in delivery.

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-10134
Ean	4016032464389
Modified on	22-06-2020
Product title	Digitus Dual Gigabit Ethernet Mini PCI Express Network Card
Long Product Name	2-port Gigabit Ethernet mini PCI Express Card single lane, low profile bracket, Realtek chipset
Product specifications	Ports & interfaces Connectivity technology* Wired Host interface* Mini PCI Express Interface* Ethernet Ethernet LAN (RJ-45) ports 2 Network Maximum data transfer rate* 1000 Mbit/s Networking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x Ethernet LAN Yes Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Wake-on-LAN ready Yes Full duplex Yes LAN controller Realtek RTL8111F Design Component for* PC Design Internal* Yes Plug and Play Yes Country of origin China System requirements Windows operating systems supported Yes Mac operating systems supported Yes Linux operating systems supported Yes Packaging content Cables included LAN (RJ-45) Mounting brackets included Yes Resource CD Yes Quick installation guide Yes Logistics data Harmonized System (HS) code 85176990
Essential qualities	Connectors: 2 x Gigabit LAN (RJ45) Supports 10/100/1,000 Mbps networks with automatic recognition and configuration Compatible with the following network standards: IEEE802.3, 802.3 u, and 802.3ab Supports IEEE802.3x full-duplex flow control Chipset: Realtek / RTL8111F / 1182e Compatible with slots outlets at full or half installation height 1000 Base-T ethernet controller Compatible with PCI Express Specification 1.1 Compatible with PCIe MINI Card Electromechanical Specification Revision 1.2 Single-lane (1x) PCI express with up to 2.5 Gbps capacity Supports IEEE802.1q VLAN tagging Supports jumbo frames up to 9 Kb Automatic crossover recognition and correction Supports Wake-on-LAN, Remote wake-up, Power down / Link down power saving Compatible with Windows 10, 8, 7 (32/64Bit) and backwards compatible with Windows server 2003, 2008, 2012 Compatible with Linux, DOS, MacOS® 10.4 or higher Plug and Play
