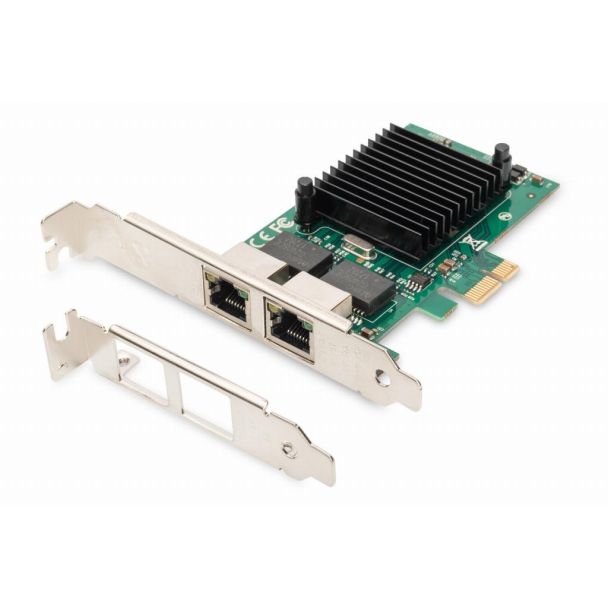

Digitus Gigabit Ethernet PCI Express Card, 2-port
GTIN: 4016032463139
Gigabit Ethernet PCI Express Card, 2-port 32-bit, low profile bracket, Intel chipset
Expand your PC with PCIe slot by 2 Gigabit Ethernet ports with 1000 Mbit/s each
- Gigabit data transfer for each RJ45 port
- Suitable for standard slots & small PC case with low-profile slot
- Intel chipset 82575EB
- RSS, auto MDI/MDIX, IPv4, IPv6
- Jumbo Frames 9.5k, VMDq
The DIGITUS® PCI Express Dual Port Gigabit Network Card with integrated Intel chipset offers the option to make two Gigabit ports for a server or a workstation available via a single PCI slot. Each port is fully compatible in accordance with IEEE802.3/u/ab standards and offers a full Gigabit connection. In addition to supporting IPv4 and IPv6 protocols, the card also supports jumbo frames as well as layer 2 . Its versatile configuration options make the card perfect for using with virtual machines or to set up a router/firewall. The low-profile slot bracket included in delivery also offers the option of integrating the card into compact computer cases in which standard slot brackets cannot be used.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-10132 |
| Ean | 4016032463139 |
| Internal | Yes |
| Component for | Server |
| Modified on | 22-06-2020 |
| Product title | Digitus Gigabit Ethernet PCI Express Card, 2-port |
| Long Product Name | Gigabit Ethernet PCI Express Card, 2-port 32-bit, low profile bracket, Intel chipset |
| Product specifications | Ports & interfacesConnectivity technology* Wired Host interface* PCIe Interface* Ethernet Ethernet LAN (RJ-45) ports 2 NetworkMaximum data transfer rate* 1000 Mbit/s Networking standards* IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x Ethernet LAN Yes Ethernet LAN data rates 10,100,1000 Mbit/s Full duplex Yes LAN controller Intel® 82575EB DesignComponent for* Server Internal* Yes DesignChipset Intel® 82575EB Country of origin China System requirementsWindows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1 Linux operating systems supported Yes Other operating systems supported FreeBSD, VMware vSphere ESXi Server operating systems supported Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019 Packaging contentMounting brackets included Yes Resource CD Yes Quick installation guide Yes Logistics dataHarmonized System (HS) code 85176990 |
| Essential qualities |
|
| Connectivity technology | Wired |
| Host interface | PCIe |
| Interface | Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x |
