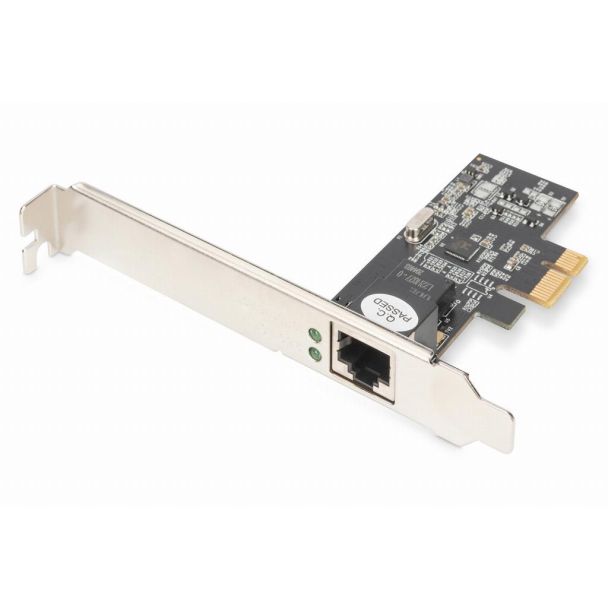

Digitus Gigabit Ethernet PCI Express Network Card 2.5G (4-Speed)
GTIN: 4016032473978
2,5 Gigabit Ethernet PCI Express Card 2.5G Ethernet NIC (Chipset:RTL8125B)
Fast multi-gigabit network connection with up to 2.5 Mbps for your PCI express slot
- Gigabit data transmission with up to 2500 Mbps (2.5G)
- Supported network standards: IEEE802.3, IEEE802.3u & IEEE802.3ab
- Ideal for streaming and gaming applications with high data rates
- Supports IEEE802.3x full-duplex flow control
- Supports IEEE802.1q VLAN tagging
- Supports Wake-on-LAN
- Additional low-profile slot bracket for use in narrow housings
This PCIe Gigabit Network Card from DIGITUS® offers you the highest performance for network applications that achieve high data rates with your 10/100/1000/2500 BASE-T ethernet controller. This is ideal for streaming applications with high resolution. Via LAN interfaces (RJ45), it supports the IEEE802.3u specification for fast ethernet and the IEEE802.3ab specification for gigabit ethernet with up to 2.5 Gbps. IEEE802.3x full-duplex flow control is also supported, as well as Wake-on-LAN. The card can be used for slots at full installation height, a low-profile slot bracket is also provided in the scope of delivery for use at half installation height.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-10135 |
| Ean | 4016032473978 |
| Internal | Yes |
| Component for | Server/workstation |
| Modified on | 07-09-2021 |
| Product title | Digitus Gigabit Ethernet PCI Express Network Card 2.5G (4-Speed) |
| Long Product Name | 2,5 Gigabit Ethernet PCI Express Card 2.5G Ethernet NIC (Chipset:RTL8125B) |
| Product specifications | Ports & interfacesConnectivity technology* Wired Host interface* PCI Express Interface* Ethernet Ethernet LAN (RJ-45) ports 1 PCI version 2.1 PCI Card form factor Full-height (low-profile) NetworkMaximum data transfer rate* 2500 Mbit/s Networking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet Ethernet LAN data rates 10,100,1000,2500 Mbit/s Wake-on-LAN ready Yes DesignComponent for* Server/workstation Product colour Black Internal* Yes Chipset Realtek RTL8125B Plug and Play Yes LED indicators Yes DesignCountry of origin China System requirementsWindows operating systems supported Windows 10, Windows 7, Windows 8 Linux operating systems supported Yes Server operating systems supported Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 Operational conditionsOperating temperature (T-T) 5 - 50 °C Operating relative humidity (H-H) 20 - 80% Weight & dimensionsWidth 120 mm Depth 98 mm Height 22 mm Weight 35.2 g Packaging contentMounting brackets included Yes Quick installation guide Yes Logistics dataHarmonized System (HS) code 85176990 |
| Essential qualities |
|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Maximum data transfer rate | 2500 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
