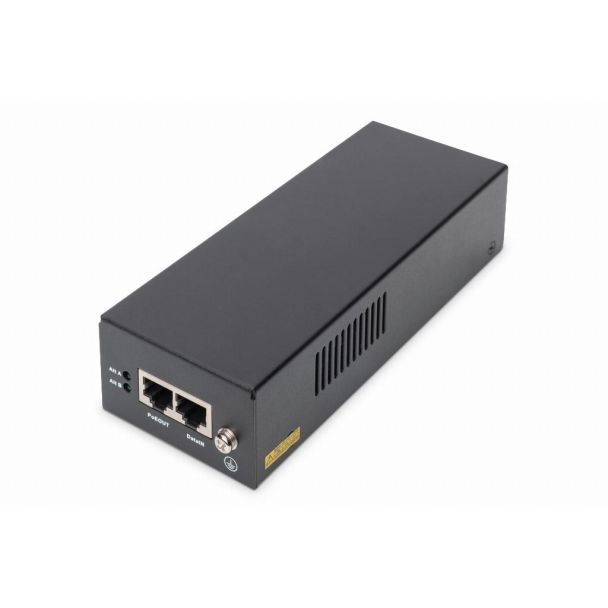

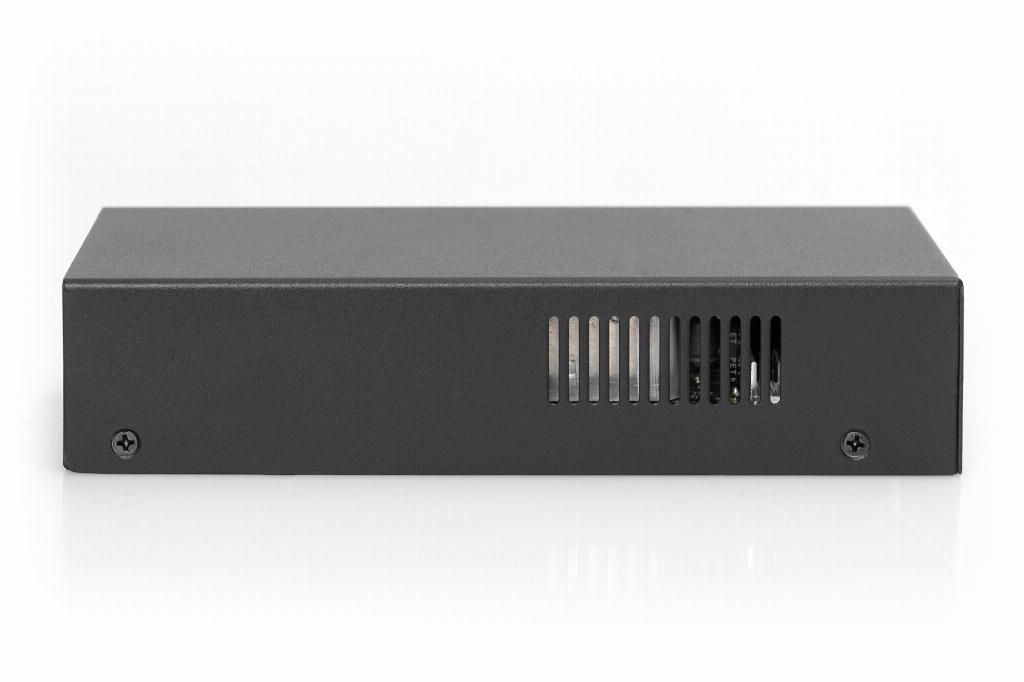

Digitus Gigabit Ethernet PoE++ Injector, 802.3bt, 85 W
GTIN: 4016032464495
Gigabit Ethernet PoE++ Injector, 802.3bt Power pins: 4/5(+),7/8(-) and 3/6(+), 1/2(-), 85W
Power supply and data transfer with up to 1 Gbps bandwidth and 85 watt output with just one network cable, for PoE-enabled devices such as access points, IP phones, POS systems or IP cameras
- PoE power supply with up to 85W as midspan or endspan
- Supports the PoE++ IEEE 802.3bt PoE standard
- Supports 10/100/1000 Base-T
- PoE output: 85 W (via 4 strand pairs)
- For distances of up to 100 m
- PoE mode A & B, automatic changeover
- LED operating display
- Integrated power adapter
- Excess voltage and short circuit protection
- Automatic detection of PoE devices
The 802.3bt injector from DIGITUS® offers an 85 watt PoE port as a midspan solution. Compact, cost-effective and fully IEEE802.3bt-compliant. The simple solution for remote power supply of wireless access points, IP security camera, VoIP phones, thin clients and other installations with PoE functionality. PoE+/PoE++ compatible devices can be supplied with power and data using the network cable, a secure and reliable solution for expanding the existing network infrastructure. The injector detects various PoE modes (A/B)- Plug & Play.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95109 |
| Ean | 4016032464495 |
| Modified on | 22-06-2020 |
| Product title | Digitus Gigabit Ethernet PoE++ Injector, 802.3bt, 85 W |
| Long Product Name | Gigabit Ethernet PoE++ Injector, 802.3bt Power pins: 4/5(+),7/8(-) and 3/6(+), 1/2(-), 85W |
| Product specifications | NetworkEthernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Power over Ethernet (PoE) Yes Networking standards IEEE 802.3bt FeaturesProduct colour Black Maximum operating distance 100 m LED indicators Yes Power protection features Short circuit Country of origin China Ports & interfacesEthernet LAN (RJ-45) ports 2 PowerPower over Ethernet (PoE) voltage* 56 V AC adapter input voltage 100-240 V AC adapter frequency 50/60 Hz Input current 1.5 A Power consumption (max) 90 W Total Power over Ethernet (PoE) budget 85 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 5 - 95% Storage temperature (T-T) -10 - 70 °C Weight & dimensionsWidth 65 mm Depth 180 mm Height 40 mm Weight 600 g Packaging dataPackage width 116 mm Package depth 60 mm Package weight 100 g Package volume 1322.4 cm³ Packaging contentNumber of products included 1 pc(s) Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85044095 |
| Essential qualities |
|
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) voltage | 56 V |
