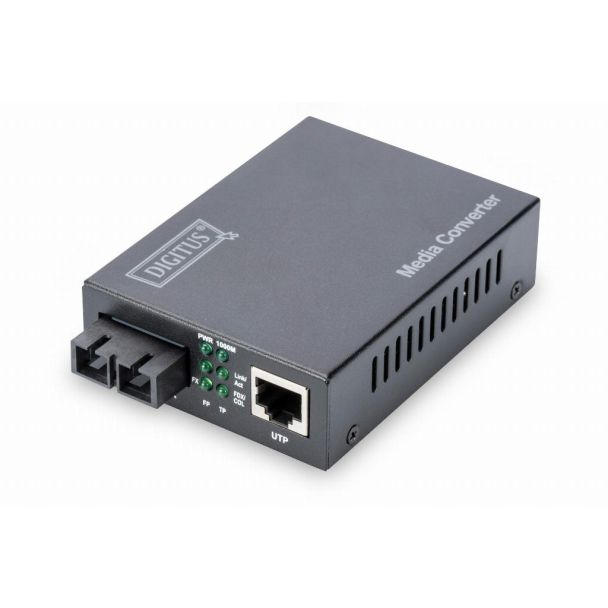

Digitus Gigabit Media Converter, RJ45 / SC
GTIN: 4016032293132
Gigabit Ethernet Media Converter, Singlemode SC connector, 1310nm, up to 20km
The perfect converter solution for various fiber media
- Distance up to 20km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range
The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-82121-1 |
| Ean | 4016032293132 |
| Modified on | 29-03-2013 |
| Product title | Digitus Gigabit Media Converter, RJ45 / SC |
| Long Product Name | Gigabit Ethernet Media Converter, Singlemode SC connector, 1310nm, up to 20km |
| Product specifications | NetworkMaximum data transfer rate* 1000 Mbit/s Converter input interface 1000Base-TX, 100Base-TX Converter output interface 1000Base-LX Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Auto MDI/MDI-X Yes Duplex system Full, Half Ports & interfacesConnectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 1 Fiber optic connector* SC DC-in jack Yes PerformanceMaximum transfer distance* 20000 m Wavelength* 1310 nm Fiber mode structure Single-mode Fiber cable diameters supported (core/cladding) 9/125 µm Tx power (min) -12 dBmW Tx power (max) -6 dBmW Rx power (min) -21 dBmW Buffer size 2048 KB DesignInternal* No LED indicators Activity, Link, Status DesignProduct colour Black Country of origin China Certification FCC, CE. PowerInput voltage 5 V Power over Ethernet (PoE) No External power adapter Yes Weight & dimensionsWidth 70 mm Depth 95 mm Height 26 mm Weight 200 g Operational conditionsOperating temperature (T-T) 0 - 60 °C Packaging dataPackage width 216 mm Package depth 60 mm Package volume 2086.56 cm³ Package weight 450 g Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Other featuresTransmission distance (max) 10 km |
| Essential qualities |
|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Internal | No |
| Fiber optic connector | SC |
