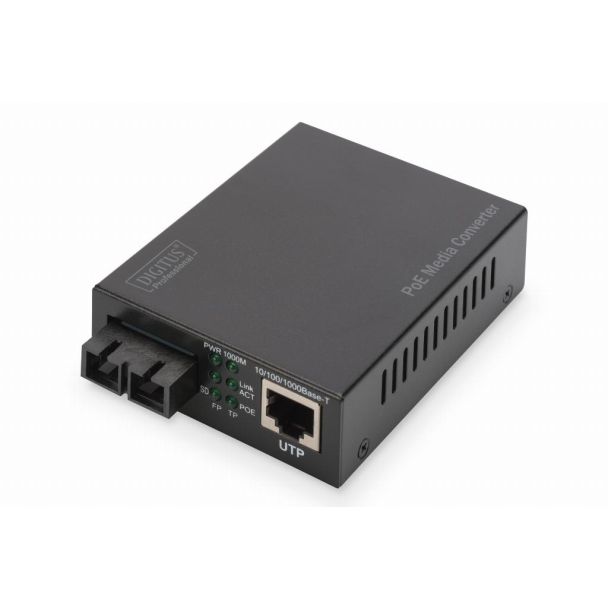

Digitus Gigabit PoE media converter, RJ45 / SC, MM, PSE
GTIN: 4016032390022
Gigabit Ethernet PoE+ Media Converter, Multimode 802.3at, 30W, SC connector, up to 0.5km
The perfect converter solution for optical data transmission
- PoE power supplier, PSE
- Sends data with high quality and additionally offers the highest level of failure safety
- A fast transfer in the gigabit range is guaranteed
- Range of up to 0.5km
The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-82150 |
| Ean | 4016032390022 |
| Modified on | 19-07-2018 |
| Product title | Digitus Gigabit PoE media converter, RJ45 / SC, MM, PSE |
| Long Product Name | Gigabit Ethernet PoE+ Media Converter, Multimode 802.3at, 30W, SC connector, up to 0.5km |
| Product specifications | NetworkMaximum data transfer rate* 1000 Mbit/s Converter input interface 100Base-TX, 1000Base-TX Converter output interface 1000Base-SX Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Copper ethernet cabling technology 100BASE-TX, 1000BASE-TX Fiber ethernet cabling technology 1000BASE‑SX Data transfer rate 1000 Mbit/s Auto MDI/MDI-X Yes Duplex system Full, Half Ports & interfacesConnectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 1 Fiber optic connector* SC DC-in jack Yes PerformanceMaximum transfer distance* 500 m Wavelength* 850 nm Fiber mode structure Multi-mode Mean time between failures (MTBF) 500000 h DesignInternal* No LED indicators Activity, Link, Power, Status Product colour Black Country of origin China PowerInput voltage 5 V Output voltage 48 - 52 V PowerPower over Ethernet (PoE) Yes Total Power over Ethernet (PoE) budget 30 W External power adapter Yes Weight & dimensionsWidth 71 mm Depth 95 mm Height 26 mm Operational conditionsOperating temperature (T-T) -20 - 65 °C Storage temperature (T-T) -40 - 85 °C Packaging dataPackage width 130 mm Package depth 240 mm Package height 60 mm Package volume 1872 cm³ Package weight 800 g Packaging contentAC adapter included Yes Quick installation guide Yes Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Master (outer) case width 410 mm Master (outer) case length 570 mm Master (outer) case height 280 mm Master (outer) case gross weight 8 kg Master (outer) case volume 65436 cm³ Products per master (outer) case 10 pc(s) |
| Essential qualities |
|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Internal | No |
| Fiber optic connector | SC |
