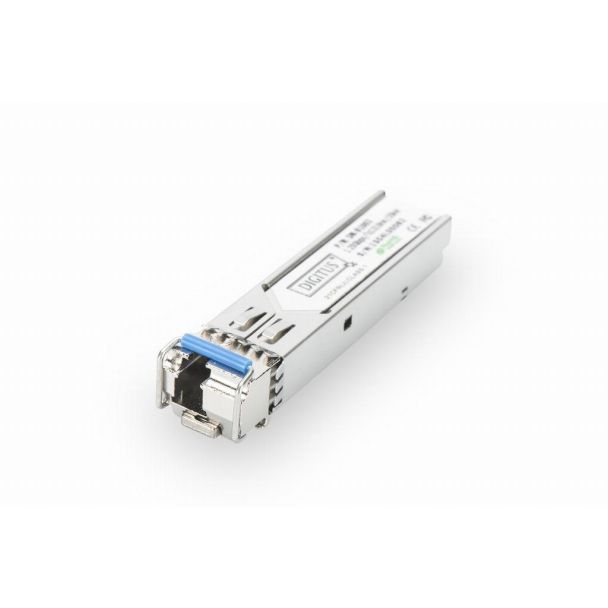

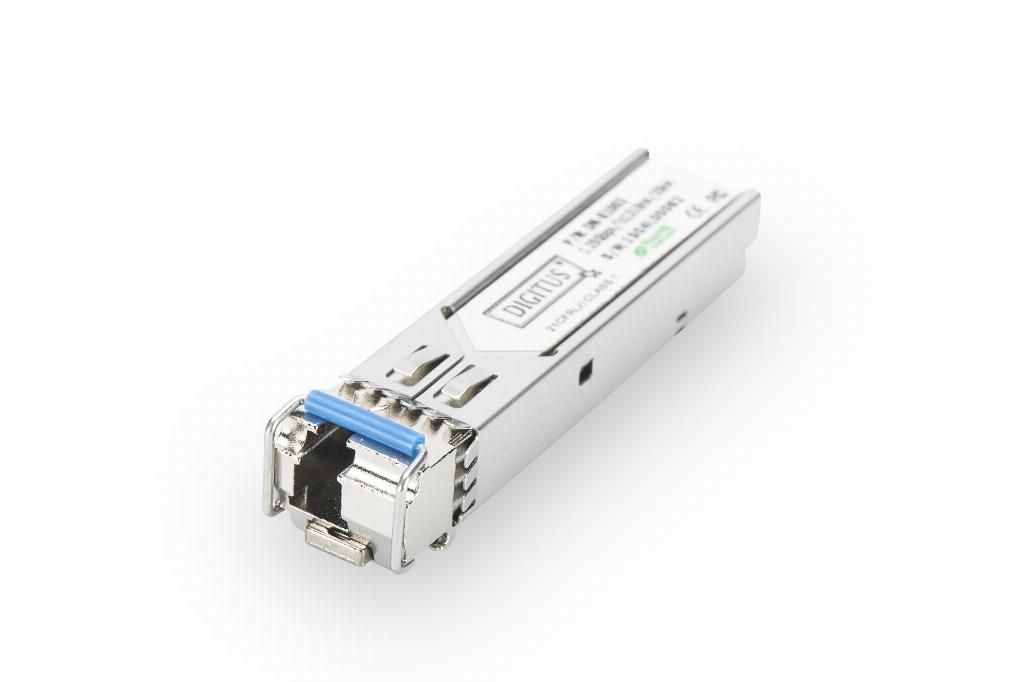

Digitus HP-compatible mini GBIC (SFP) Module, 1.25 Gbps, 20km, with DDM Feature

Name: Digitus HP-compatible mini GBIC (SFP) Module, 1.25 Gbps, 20km, with DDM Feature
Brand: Digitus
SKU: DIG-DN-81003-01
Availability: OutOfStock

GTIN: 4016032391562

Out of stock

SKU

DIG-DN-81003-01

Be the first to review this product

€0.00 €0.00

Manufacturers: Digitus

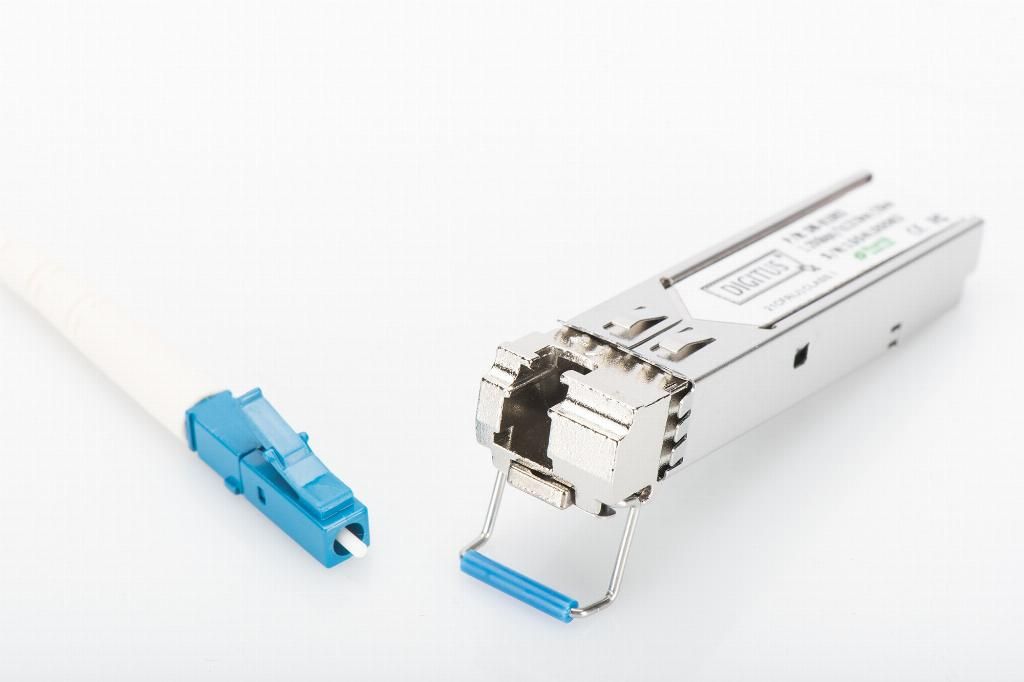

1.25 Gbps SFP Module, Singlemode, BiDi, HP-comp. LC Simplex, Tx1310nm/Rx1550nm, up to 20km, HP

Digitus HP-compatible mini GBIC (SFP) Module, 1.25 Gbps, 20km, with DDM Feature

Description

More Information

Reviews

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-81003-01
Ean	4016032391562
Modified on	18-09-2016
Product title	Digitus HP-compatible mini GBIC (SFP) Module, 1.25 Gbps, 20km, with DDM Feature
Long Product Name	1.25 Gbps SFP Module, Singlemode, BiDi, HP-comp. LC Simplex, Tx1310nm/Rx1550nm, up to 20km, HP
Product specifications	Performance Maximum data transfer rate* 10000 Mbit/s Interface type* SFP Single-mode fiber (SMF) supported Yes Fiber optic connector LC Maximum transfer distance 20000 m Wavelength 1550 nm Tx wavelength (min) 1310 nm Tx wavelength (max) 1310 nm Rx wavelength (max) 1550 nm Ethernet interface type Fast Ethernet Networking standards IEEE 802.3z Digital Diagnostics Monitoring (DDM) Yes Features Product colour Metallic Features Plug and Play Yes Hot-Plug support Yes Country of origin China Brand compatibility HP Packaging data Package width 115 mm Package depth 30 mm Package volume 310.5 cm³ Package weight 35.417 g Logistics data UK Trade Tariff code 85176200 Harmonized System (HS) code 85369010
Essential qualities	HP compatible HP-Aruba compatible Mini GBIC SFP (Small Form Factor Pluggable) module Supports DDM (Digital Diagnostic Monitoring) Bidirectional WDM Module - Only one fiber is needed High quality and excellent reliability 1.25 Gbps Maximum Data Rate Compliant to IEEE 802.3z Gigabit Standard Class 1 laser product compliant with EN 60825-1 Easy plug-and-play installation MSA (Multi Source Agreement) compliant Hot pluggable Connector: 1x LC Simplex Wavelength: Tx 1310nm / Rx 1550nm Transmission Power: Minimum -5 dBm, Maximum 0 dBm Sensitivity receiving power: minimum -24 dBm For a Distance of up to 20km Suitable for 09/125µm Singlemode Fiber Cables Safe fast-locking mechanism 3.3V power supply Operating temperature: 0 °C ~ 70 °C Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP
