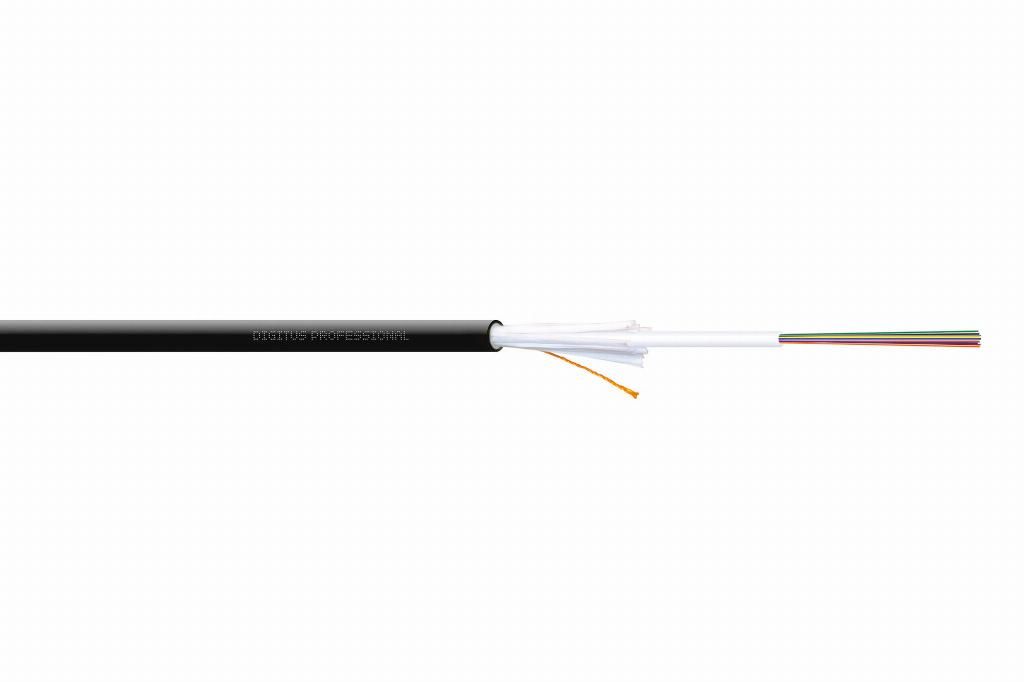

Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125µ OS2, 4 fibers, CPR Dca, LSZH

Name: Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125µ OS2, 4 fibers, CPR Dca, LSZH
Brand: Digitus
SKU: DIG-DK-39041-U
Availability: OutOfStock

GTIN: 4016032272175

Out of stock

SKU

DIG-DK-39041-U

Be the first to review this product

€0.00 €0.00

Manufacturers: Digitus

Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125µ OS2, 4 fibers, CPR Dca, LSZH, 1 m, U-DQ(ZN) BH, OS2

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

- OS2 9/125µ

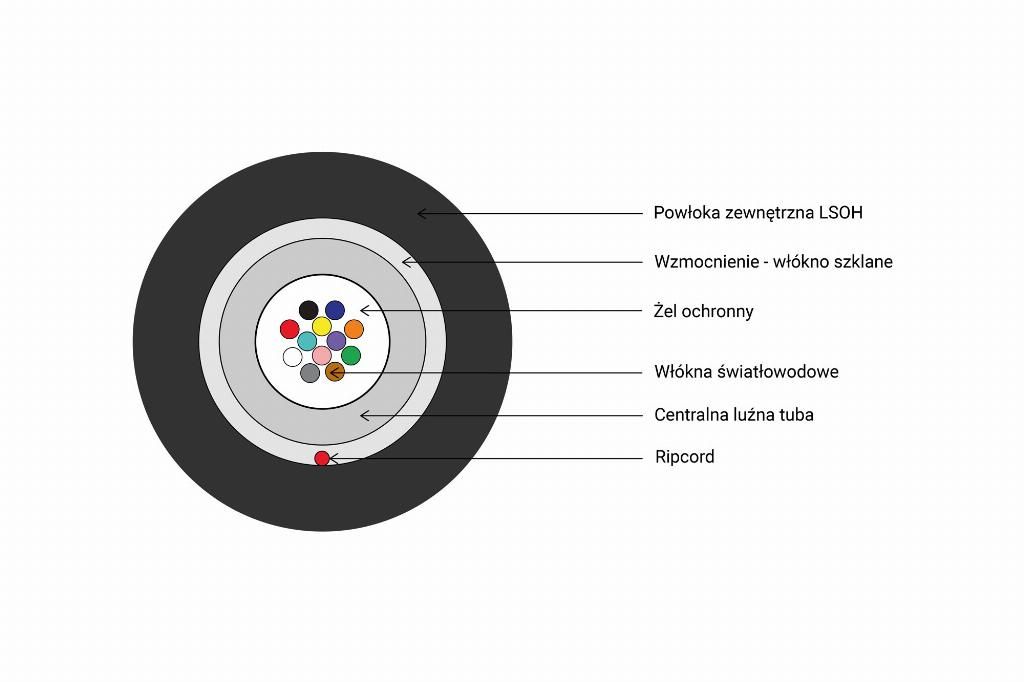

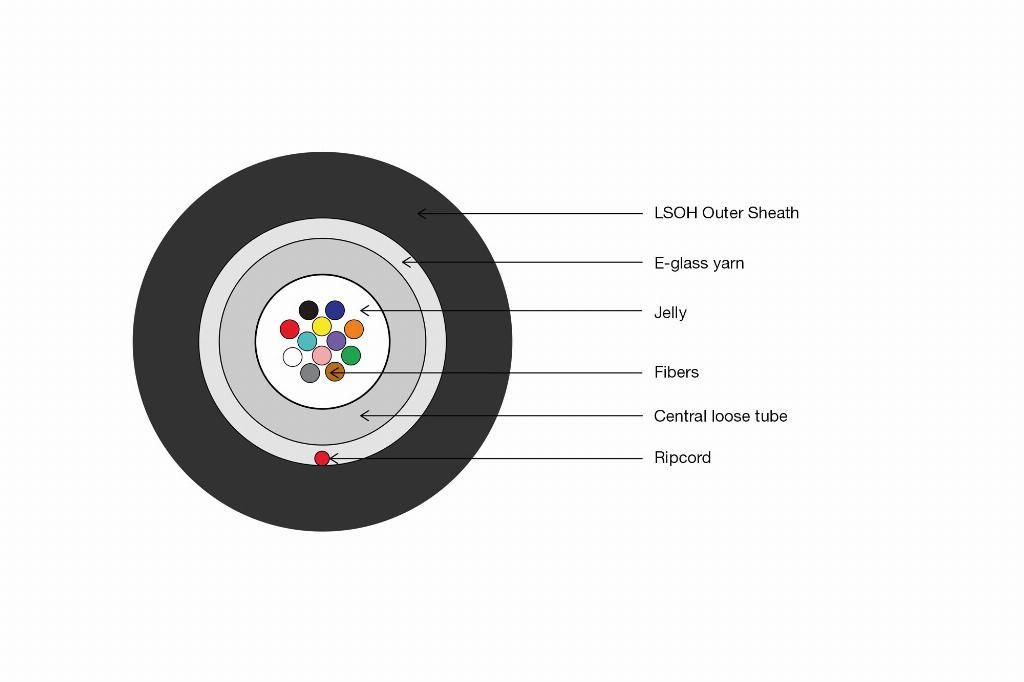

- Central loose tube 4 fibers
- Non-metallic rodent protection
- LSZH, CPR Dca

Loose tube cable is a design that has high tensile strength and flexibility in a compact cable size. Our loose tube cable provides excellent optical transmission and physical performance. We ensure a continuing level of quality in our cable products through several quality control programs including ISO 9001 and all the materials have passed REACh and RoHS. We ensure product reliability through rigorous qualification testing of each product family. Both initial and periodic qualification testing are performed to assure the cable's performance and durability in the field environments.

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DK-39041-U
Ean	4016032272175
Modified on	21-08-2015
Product title	Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125µ OS2, 4 fibers, CPR Dca, LSZH
Long Product Name	FO A-I-DQ(ZN)BH 4E9/125µ, SM, OS2, 4 fibers Indoor/Outdoor, LSZH, Dca, black, length 1 m
Product specifications	Features Cable length* 1 m Fibre optic type OS2 Cable type* U-DQ(ZN) BH Product colour* Black Core diameter 9 µm Cladding diameter 125 µm Fiber mode structure Single-mode Jacket material* Low smoke zero halogen (LSZH) Country of origin Turkey Technical details Doesn't contain Halogen Packaging data Package width 430 mm Package depth 680 mm Package volume 198832 cm³ Package weight 59 g Logistics data UK Trade Tariff code 85447000 Harmonized System (HS) code 85447000 Other features Number of optical fibres 4
Essential qualities	LSZH – low smoke zero halogen UV-resistant Longitudinaly and laterally water-resistant Glass yarn armoured Non-metal rodent protection Metal free Attenuation at 1310nm : ≤ max. 0.34 dB/km (before cabling) ; ≤ max. 0.36 dB/km (after cabling) Attenuation at 1550nm: ≤ max. 0.21 dB/km (before cabling) ; ≤ max. 0.22 dB/km (after cabling) Attenuation at 1625nm : ≤ max. 0.23 dB/km (before cabling) ; ≤ max. 0.25 dB/km (after cabling) Zero Dispersion Wavelength : 1302 ~ 1324 nm Zero Dispersion Slope : ≤ 0.092 ps/nm 2 x km PMD Link value ( M= 20 cables Q= 0.01%) max. PMDQ : 0.2 ps/√km Cable Cutoff Wavelength (λcc) : ≤ 1260 nm Macro bending Loss (100 turns ; Φ50nm) at 1550 nm : ≤ 0.05 dB Macro bending Loss (100 turns ; Φ50nm) at 1625 nm : ≤ 0.10 dB Mode Field Diameter at 1310nm : 9.2 ± 0.4 µm Cladding diameter : 125 ± 1 µm Core/ clad concentricity error : ≤ 0.6 µm Cladding Non-Circularity : ≤ 1.0 % Proof stress : ≥ 0.69 Gpa Fiber count (OS2 G.652D) : 2-12 pc Max. number of loose tube : 1 pc Fiber number per tube : 2 - 12 pc Loose tube : 2.0 ± 0.2 mm Outher sheath material : LSZH, CPR Dca, EN 50575: 2014+A1: 2016 Cable outer diameter : 6.5 ± 0.5 mm Max. allowable pulling force : 1400 N Crush resistance : 1000/200 N/100mm Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C Min. bending radius : installation : 20 x OD ; operation : 10 x OD
