High performance protection for your business and office computer systems against data loss and damage
- Boost and buck AVR for voltage stabilization
- Fast bridging times in case of power blackout
- Compact enclosure for space saving installation in your IT infrastructure
- Quick charging time
- Produce a low noise level under 40 dB
The DIGITUS® Line-Interactive UPS come with a compact size and an excellent microprocessor control, which guarantees high reliability. With an user friendly operation they provide high performance protection for your business and office computer systems against data loss and damage. Features like overload-, discharge and overcharge protection, cold start functions and energy saving features, as well as an acoustic alarm system are just a few advantages of the DIGITUS® Line-Interactive UPS units.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-170075 |
| Ean | 4016032441373 |
| Form factor | Tower |
| Product colour | Black |
| Modified on | 31-08-2018 |

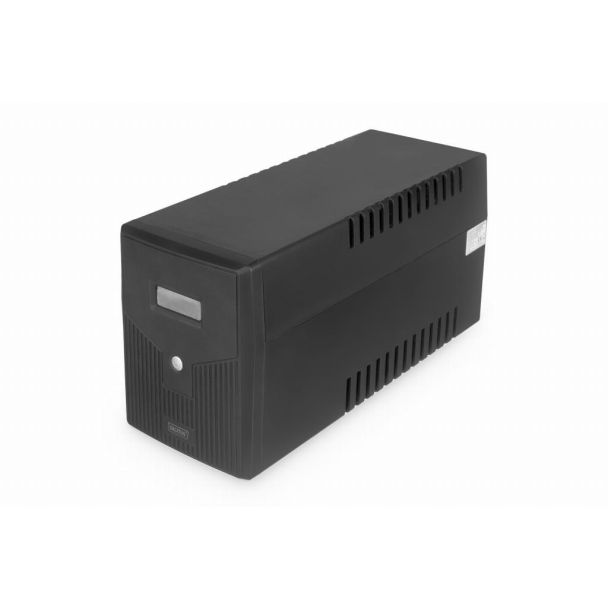

| Product title | Digitus Line-Interactive UPS, 1500 VA/900 W |
| Long Product Name | Line-Interactive UPS, 1500VA/900W 12V/9Ah x2 battery,4x CEE 7/7,USB,RS232,RJ45,LCD |
| Product specifications | FeaturesUPS topology* Line-Interactive Output power capacity* 1.5 kVA Output power* 900 W Waveform* Pseudo sine Input operation voltage (min)* 162 V Input operation voltage (max)* 290 V Input frequency* 50 Hz Output frequency 50 Hz Output voltage regulation 10% Automatic Voltage Regulation (AVR) Yes Transfer time (Line Mode to Battery Mode) 2 ms Number of input phases 1 Number of output phases 1 Power factor 0.6 Noise level 40 dB Surge protection Yes Surge protection features Digital Subscriber Line (DSL), Modem, Network Power protection features Battery discharge, Overcharge, Overload Audible alarm(s) Yes Audible alarm modes Alarm when on battery, Fault, Low battery alarm, Overload alarm Auto-restart Yes Country of origin China Ports & interfacesPower plug Type F AC outlets quantity 4 AC outlet(s) USB port Yes USB 2.0 ports quantity 1 USB port type USB Type-B Serial interface Yes Serial interface type RS-232 Serial ports quantity 1 RS-232 ports 1 Ethernet LAN (RJ-45) ports 2 BatteryBattery capacity 9 Ah Battery voltage 12 V Number of batteries supported 2 Battery recharge time (90%) 6 h Cold start Yes DesignForm factor* Tower Product colour* Black Display type LCD LED indicators Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 0 - 95% Weight & dimensionsWidth 158 mm Depth 380 mm Height 198 mm Weight 10.1 kg Package width 212 mm Package depth 442 mm Package height 280 mm Package weight 11 kg Packaging dataPackage volume 26237.1 cm³ Logistics dataUK Trade Tariff code 85044085 Harmonized System (HS) code 85078000 Other featuresNominal output voltage 230 V Nominal input voltage 230 V |
| Essential qualities |
|
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Output power | 900 W |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Waveform | Pseudo sine |
| Input frequency | 50 Hz |
