Digitus Network cabinet Unique series - 600x600 mm (WxD)
GTIN: 4016032343592

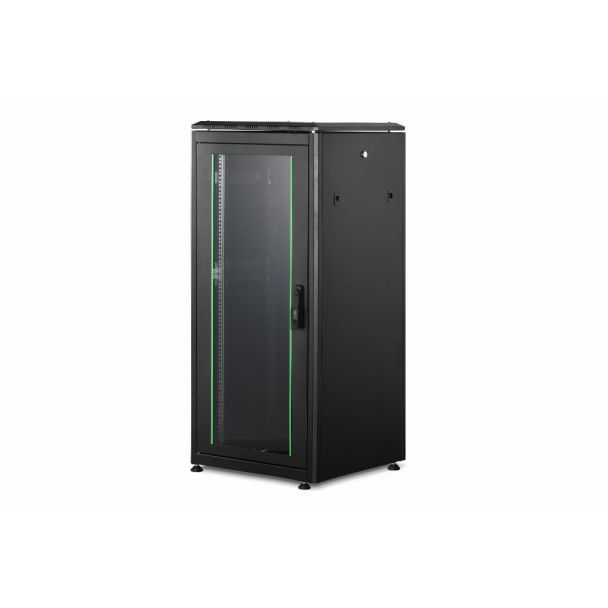

26U network rack, Unique 1342x600x600 mm, color black (RAL 9005)
The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.
- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Swivel handle with profile half-cylinder lock incl. key type 333 on the front door
- Modular, openable base chassis with removable 19" blind panels
- Flexible cable routing options thanks to generous cable inlets with brushes in the base and rear
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)
The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are cable inlets with brushes in the rear area of the base chassis. Rear brush strips above and below the rear door (from 26U) enable use in a wide range of application scenarios. Generous vertical cable ducts with cable routing aids and cover, installed in the front (from 800 mm enclosure width), perfectly round off the versatile features of the network enclosure. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-19 26U-6/6-B-1 |
| Ean | 4016032343592 |
| Modified on | 15-08-2015 |
| Product title | Digitus Network Rack Unique Series - 600x600 mm (WxD) |
| Long Product Name | 26U network rack, Unique 1342x600x600 mm, color black (RAL 9005) |
| Product specifications | FeaturesRack capacity* 26U Type* Freestanding rack Maximum weight capacity* 800 kg Product colour Black Back door construction Steel Front door construction Glass Side panels included Yes International Protection (IP) code IP20 Weight & dimensionsSize (imperial) 48.3 cm (19") Width 600 mm Depth 600 mm Weight & dimensionsHeight 1342 mm Packaging dataPackage width 680 mm Package depth 680 mm Package volume 684352 cm³ Package weight 61 kg Logistics dataUK Trade Tariff code 94032080 Country of origin Turkey Harmonized System (HS) code 85381000 |
| Essential qualities |
|
| Rack capacity | 26U |
| Type | Freestanding rack |
| Maximum weight capacity | 800 kg |
